Here you will find all available parts and drawings of the 'Milwaukee 4000503864 ( M18FMS254-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

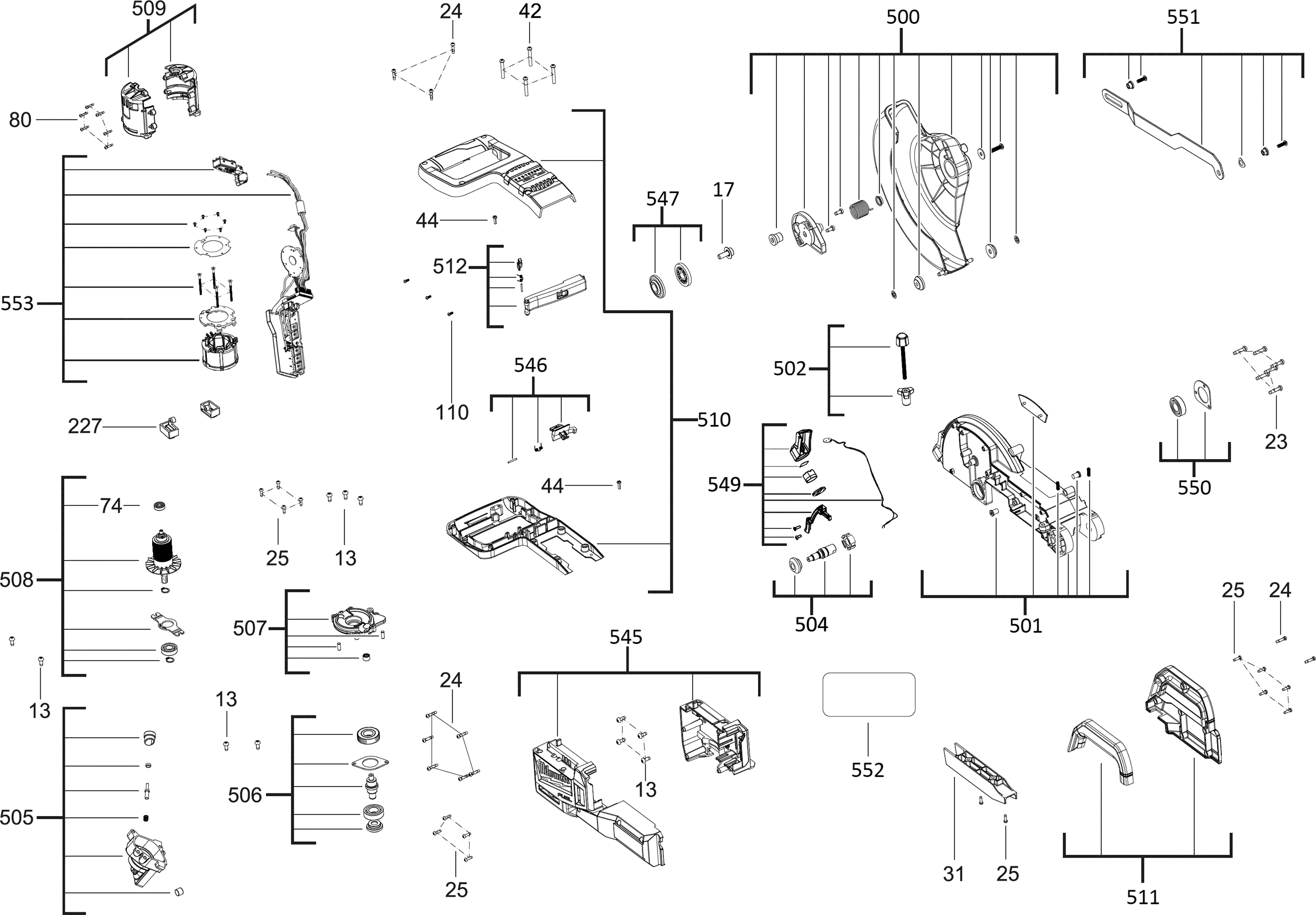

Technical drawing of model Milwaukee 4000503864 ( M18FMS254-0 )
Spare parts list of model Milwaukee 4000503864 ( M18FMS254-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (17 needed) | ||||
| 0013 | 4931454625 | 3.00 | 3.63 | |
| SET SCREW | ||||
| 0017 | 4931454626 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0023 | 4931454627 | 3.00 | 3.63 | |
| SCREW (8 needed) | ||||
| 0024 | 4931454628 | 3.00 | 3.63 | |
| SCREW (16 needed) | ||||
| 0025 | 4931454629 | 3.00 | 3.63 | |
| CHIP GUIDE | ||||
| 0031 | 4931454630 | 7.20 | 8.71 | |
| SCREW (4 needed) | ||||
| 0042 | 4931454631 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0044 | 4931454632 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0074 | 4931454633 | 5.40 | 6.53 | |
| SCREW (6 needed) | ||||
| 0080 | 4931454634 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0083 | 4931454635 | 3.00 | 3.63 | |
| O-RING | ||||
| 0092 | 4931454636 | 3.00 | 3.63 | |
| SPINDLE LOCK | ||||
| 0093 | 4931454637 | 5.40 | 6.53 | |
| STOP | ||||
| 0107 | 4931454638 | 4.49 | 5.43 | |
| SCREW | ||||
| 0108 | 4931454639 | 5.40 | 6.53 | |
| BOLT (2 needed) | ||||
| 0109 | 4931454640 | 4.49 | 5.43 | |
| SCREW (5 needed) | ||||
| 0110 | 4931454641 | 3.00 | 3.63 | |
| LOCK COMPLETE | ||||
| 0113 | 4931454642 | 4.54 | 5.49 | |
| LOCKING PIECE | ||||
| 0114 | 4931454643 | 42.77 | 51.75 | |
| No longer available, no replacement | ||||
| 0115 | 4931454644 | |||
| SCREW (2 needed) | ||||
| 0119 | 4931454645 | 3.00 | 3.63 | |
| COVER | ||||
| 0121 | 4931454646 | 14.40 | 17.42 | |
| SCREW (16 needed) | ||||
| 0132 | 4931454647 | 3.00 | 3.63 | |
| TABLE INSERT (2 needed) | ||||
| 0133 | 4931454648 | 9.00 | 10.89 | |
| KNOB | ||||
| 0135 | 4931454649 | 8.09 | 9.79 | |
| LOCKING LEVER | ||||
| 0146 | 4931454650 | 11.35 | 13.73 | |
| SPRING | ||||
| 0148 | 4931454651 | 4.54 | 5.49 | |
| RETAINING BOLT (2 needed) | ||||
| 0149 | 4931454652 | 12.60 | 15.25 | |
| INTERLOCK SLEAVE | ||||
| 0150 | 4931454653 | 2.28 | 2.76 | |
| SCREW (2 needed) | ||||
| 0151 | 4931454654 | 3.00 | 3.63 | |
| INTERLOCK ELEMENT | ||||
| 0153 | 4931454655 | 12.60 | 15.25 | |
| BOLT | ||||
| 0159 | 4931454656 | 5.40 | 6.53 | |
| TRIGGER | ||||
| 0160 | 4931454657 | 5.40 | 6.53 | |
| LOCKING PART | ||||
| 0161 | 4931454658 | 3.00 | 3.63 | |
| SPRING | ||||
| 0162 | 4931454659 | 3.00 | 3.63 | |
| SCREW (5 needed) | ||||
| 0167 | 4931454660 | 3.00 | 3.63 | |
| LOCKING PART | ||||
| 0168 | 4931454661 | 74.45 | 90.08 | |
| BEARING COVER | ||||
| 0169 | 4931454662 | 79.20 | 95.83 | |
| RIGHT HANDLE HALF | ||||
| 0171 | 4931454663 | 25.34 | 30.66 | |
| SCREW (8 needed) | ||||
| 0172 | 4931454664 | 3.00 | 3.63 | |
| COVER FRAME | ||||
| 0174 | 4931454665 | 39.60 | 47.92 | |
| COVER FRAME | ||||
| 0175 | 4931454666 | 39.60 | 47.92 | |
| COVER (2 needed) | ||||
| 0180 | 4931454667 | 5.40 | 6.53 | |
| RUBBER FOOT | ||||
| 0181 | 4931454668 | 3.00 | 3.63 | |
| LEFT HANDLE HALF | ||||
| 0182 | 4931454669 | 26.93 | 32.59 | |
| ABSOLUTE UNIT | ||||
| 0191 | 4931454670 | 145.73 | 176.33 | |
| SCREW (3 needed) | ||||
| 0194 | 4931454671 | 3.00 | 3.63 | |
| COVER (2 needed) | ||||
| 0227 | 4931507954 | 1.20 | 1.45 | |
| YOKE | ||||
| 0234 | 4931472866 | 18.15 | 21.96 | |
| GUARD CAP | ||||
| 0500 | 4931454674 | 53.86 | 65.17 | |
| MOTOR SUPPORT | ||||
| 0501 | 4931454675 | 166.32 | 201.25 | |
| BOLT SET | ||||
| 0502 | 4931454676 | 8.09 | 9.79 | |
| SPINDLE KIT | ||||
| 0504 | 4931454677 | 55.44 | 67.08 | |
| GEAR BOX | ||||
| 0505 | 4931454678 | 55.44 | 67.08 | |
| GEAR BOX KIT | ||||
| 0506 | 4931454679 | 80.78 | 97.74 | |
| BEARING END PLATE | ||||
| 0507 | 4931454680 | 36.43 | 44.08 | |
| ARMATURE ASSEMBLY | ||||
| 0508 | 4931454681 | 155.23 | 187.83 | |
| HOUSING SET ASSY | ||||
| 0509 | 4931454682 | 12.60 | 15.25 | |
| HANDLE SET | ||||
| 0510 | 4931454683 | 41.18 | 49.83 | |
| HANDLE SET | ||||
| 0511 | 4931454684 | 31.68 | 38.33 | |
| SWITCH BUTTON | ||||
| 0512 | 4931454685 | 9.00 | 10.89 | |
| PROTECTIVE CAP | ||||
| 0513 | 4931454686 | 19.01 | 23.00 | |
| COVER | ||||
| 0514 | 4931454687 | 191.66 | 231.91 | |
| BEVEL GEAR | ||||
| 0516 | 4931454688 | 166.32 | 201.25 | |
| GUIDE BAR | ||||
| 0517 | 4931454689 | 172.66 | 208.92 | |
| DUST BAG | ||||
| 0518 | 4931454690 | 28.51 | 34.50 | |
| TABLE | ||||
| 0519 | 4931454691 | 275.62 | 333.50 | |
| LOCK COMPLETE | ||||
| 0520 | 4931454692 | 6.82 | 8.25 | |
| EXT. W. STOP GAUGE | ||||
| 0521 | 4931454693 | 14.40 | 17.42 | |
| STOP | ||||
| 0523 | 4931454694 | 34.85 | 42.17 | |
| LOCK COMPLETE | ||||
| 0530 | 4931454696 | 9.00 | 10.89 | |
| LOCK COMPLETE | ||||
| 0531 | 4931454697 | 8.09 | 9.79 | |
| ROTARY SLIDER | ||||
| 0532 | 4931454698 | 36.43 | 44.08 | |
| LATCH PLATE | ||||
| 0533 | 4931454699 | 8.09 | 9.79 | |
| NUT | ||||
| 0534 | 4931454700 | 5.40 | 6.53 | |
| SPRING | ||||
| 0535 | 4931454701 | 49.10 | 59.41 | |
| STOP | ||||
| 0536 | 4931454702 | 10.80 | 13.07 | |
| CABLE ENTRY SLEEVE | ||||
| 0537 | 4931454703 | 9.00 | 10.89 | |
| DUST GUARD | ||||
| 0538 | 4931454704 | 12.60 | 15.25 | |
| LOCK COMPLETE | ||||
| 0539 | 4931454705 | 74.45 | 90.08 | |
| DISPLAYER RING | ||||
| 0540 | 4931454706 | 12.60 | 15.25 | |
| DISC | ||||
| 0541 | 4931454707 | 20.59 | 24.91 | |
| GUIDE KIT | ||||
| 0542 | 4931454708 | 118.80 | 143.75 | |
| WRENCH | ||||
| 0543 | 4931454709 | 7.20 | 8.71 | |
| KNOB | ||||
| 0544 | 4931454710 | 53.86 | 65.17 | |
| BODY | ||||
| 0545 | 4931454711 | 39.60 | 47.92 | |
| SPRING | ||||
| 0546 | 4931454712 | 5.40 | 6.53 | |
| CLAMPING FLANGE | ||||
| 0547 | 4931454713 | 26.93 | 32.59 | |
| LAMP | ||||
| 0549 | 4931507955 | 37.40 | 45.25 | |
| RETAINING PLATE | ||||
| 0550 | 4931454715 | 22.18 | 26.84 | |
| GUIDE BAR | ||||
| 0551 | 4931454716 | 19.01 | 23.00 | |
| RATING PLATE | ||||
| 0552 | 4931507956 | 6.00 | 7.26 | |
| ELECTRIC FIELD | ||||
| 0553 | 4931507957 | 313.50 | 379.34 | |
