Here you will find all available parts and drawings of the 'Milwaukee 4000477063 (M18FMCS66-0C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

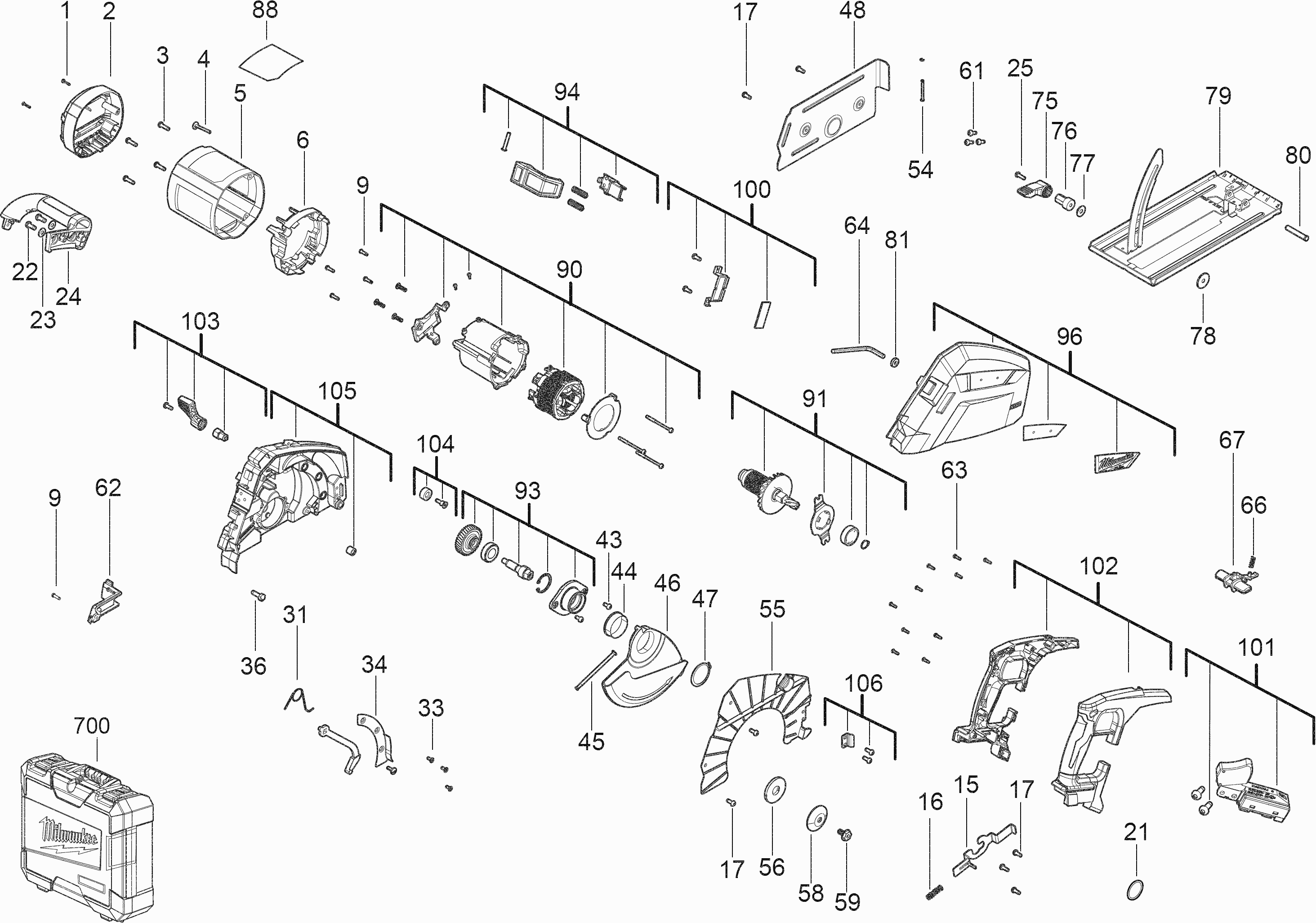

Technical drawing of model Milwaukee 4000477063 (M18FMCS66-0C)
Spare parts list of model Milwaukee 4000477063 (M18FMCS66-0C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0001 | 4931436757 | 3.60 | 4.36 | |
| COVER | ||||
| 0002 | 4931473870 | 6.60 | 7.99 | |
| SCREW (4 needed) | ||||
| 0003 | 4931473871 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0004 | 4931454468 | 3.00 | 3.63 | |
| MOTOR HOUSING | ||||
| 0005 | 4931473872 | 12.47 | 15.09 | |
| AIR GUIDE | ||||
| 0006 | 4931473873 | 3.60 | 4.36 | |
| SCREW (27 needed) | ||||
| 0009 | 4931435150 | 3.60 | 4.36 | |
| SPINDLE LOCK | ||||
| 0015 | 4931473874 | 4.54 | 5.49 | |
| SPRING | ||||
| 0016 | 4931473875 | 3.00 | 3.63 | |
| LOCKING SCREW (3 needed) | ||||
| 0017 | 4931465672 | 3.00 | 3.63 | |
| O-RING | ||||
| 0021 | 34401375 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0022 | 4931472943 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0023 | 691142001 | |||
| HANDLE | ||||
| 0024 | 4931473876 | 13.20 | 15.97 | |
| SCREW | ||||
| 0025 | 4931473877 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0031 | 4931435698 | |||
| SCREW | ||||
| 0032 | 4931435699 | 1.20 | 1.45 | |
| SCREW (3 needed) | ||||
| 0033 | 4931473878 | 3.00 | 3.63 | |
| DEFLECTOR | ||||
| 0034 | 4931473879 | 3.60 | 4.36 | |
| GUARD | ||||
| 0035 | 4931435700 | 3.60 | 4.36 | |
| SCREW 1/4-20X3/4 | ||||
| 0036 | 06755860 | 4.32 | 5.23 | |
| SCREW (2 needed) | ||||
| 0043 | 4931473880 | 3.00 | 3.63 | |
| PROTECTIVE SLEEVE | ||||
| 0044 | 4931435707 | 5.40 | 6.53 | |
| SPRING | ||||
| 0045 | 40500045 | 3.00 | 3.63 | |
| GUARD | ||||
| 0046 | 4931473881 | 23.10 | 27.95 | |
| THRUST COLLAR | ||||
| 0047 | 34600860 | 3.00 | 3.63 | |
| COVER | ||||
| 0048 | 4931473882 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0053 | 4931435714 | |||
| CLAMPING BOLT | ||||
| 0054 | 4931435715 | 5.40 | 6.53 | |
| GUARD | ||||
| 0055 | 4931473883 | 16.50 | 19.96 | |
| FLANGE | ||||
| 0056 | 4931435710 | 6.00 | 7.26 | |
| FLANGE | ||||
| 0058 | 4931435711 | 6.31 | 7.64 | |
| SCREW | ||||
| 0059 | 660988001 | 3.00 | 3.63 | |
| SCREW TORX SCREW (8 needed) | ||||
| 0061 | 06825314 | 3.60 | 4.36 | |
| COVER | ||||
| 0062 | 4931473884 | 3.00 | 3.63 | |
| SCREW (10 needed) | ||||
| 0063 | 4931465471 | 3.00 | 3.63 | |
| ALLEN KEY | ||||
| 0064 | 4931473885 | 3.00 | 3.63 | |
| SPRING WASHER | ||||
| 0066 | 672029001 | 3.00 | 3.63 | |
| TRIGGER | ||||
| 0067 | 4931461128 | 3.00 | 3.63 | |
| TENSION LEVER | ||||
| 0075 | 4931461131 | 4.80 | 5.81 | |
| BOLT | ||||
| 0076 | 4931473886 | 8.40 | 10.16 | |
| WASHER | ||||
| 0077 | 4931506000 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0078 | 633266001 | |||
| GUIDE SHOE | ||||
| 0079 | 4931473887 | 73.69 | 89.16 | |
| PIN | ||||
| 0080 | 44601180 | 5.40 | 6.53 | |
| O-RING | ||||
| 0081 | 4931473888 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0088 | 4931473889 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0090 | 4931473890 | 335.41 | 405.85 | |
| ROTOR | ||||
| 0091 | 4931473891 | 110.00 | 133.10 | |
| SPINDLE | ||||
| 0093 | 4931473892 | 70.95 | 85.85 | |
| LATCH | ||||
| 0094 | 4931473893 | 17.60 | 21.30 | |
| GUARD COVER | ||||
| 0096 | 4931473894 | 86.39 | 104.53 | |
| COVER | ||||
| 0100 | 4931473895 | 7.20 | 8.71 | |
| SWITCH | ||||
| 0101 | 4931465965 | 28.51 | 34.50 | |
| HANDLE SET | ||||
| 0102 | 4931473896 | 22.87 | 27.67 | |
| LOCK COMPLETE | ||||
| 0103 | 4931473897 | 10.58 | 12.80 | |
| RUBBER BUMPER | ||||
| 0104 | 4931473898 | 6.05 | 7.32 | |
| GEAR CASE | ||||
| 0105 | 4931473899 | 102.85 | 124.45 | |
| COVER PLATE | ||||
| 0106 | 4931473900 | 6.05 | 7.32 | |
| CARRYING CASE | ||||
| 0700 | 4931473901 | 98.47 | 119.15 | |
