Here you will find all available parts and drawings of the 'Milwaukee 4000458740 ( M18FMCS-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

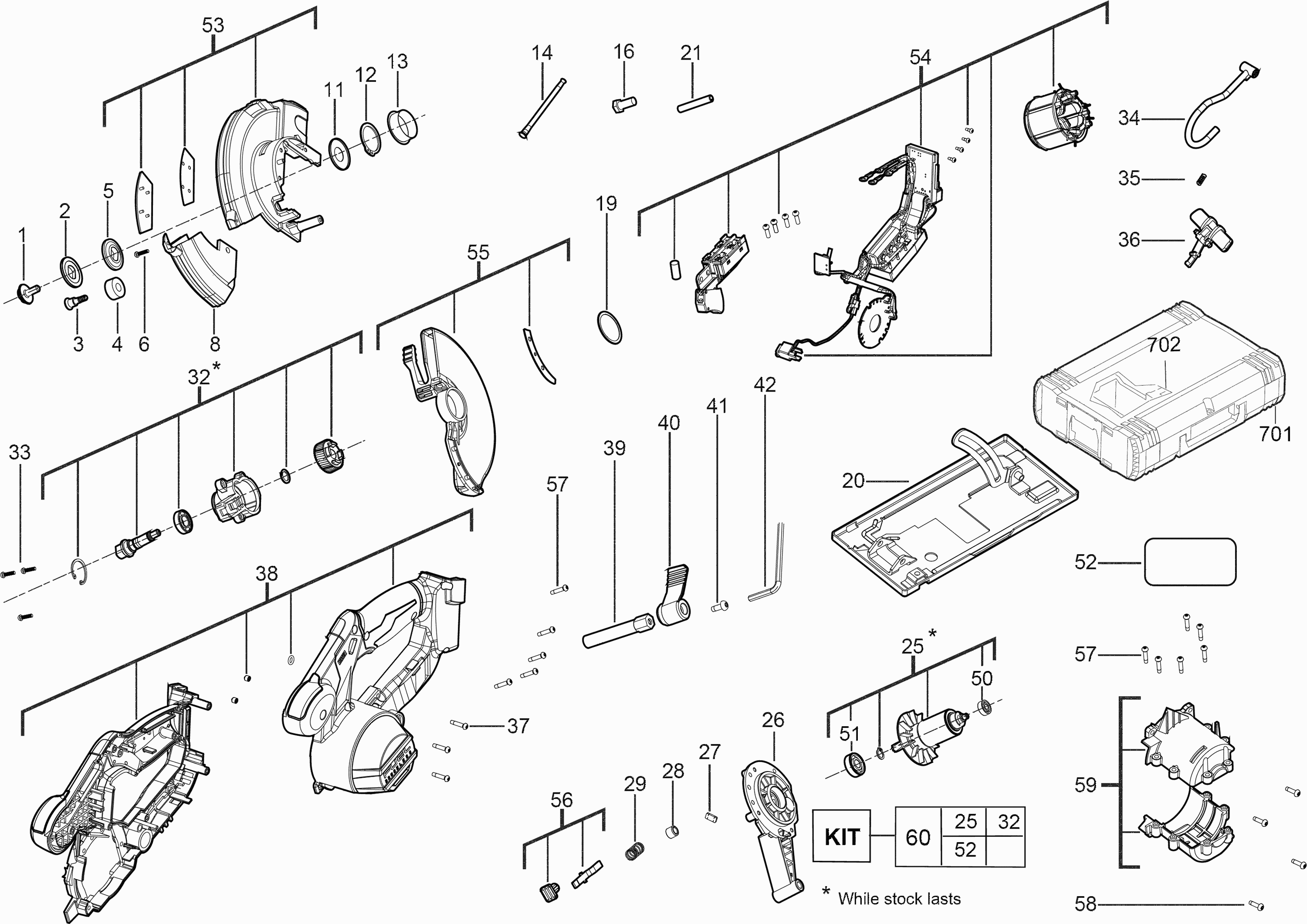

Technical drawing of model Milwaukee 4000458740 ( M18FMCS-0 )
Spare parts list of model Milwaukee 4000458740 ( M18FMCS-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 0001 | 661263001 | 1.80 | 2.18 | |
| FLANGE | ||||
| 0002 | 611280001 | 4.49 | 5.43 | |
| SCREW | ||||
| 0003 | 661354001 | 1.80 | 2.18 | |
| RUBBER BUMPER | ||||
| 0004 | 4931465876 | 1.90 | 2.30 | |
| FLANGE | ||||
| 0005 | 611281001 | 1.80 | 2.18 | |
| SCREW (10 needed) | ||||
| 0006 | 661414002 | 1.90 | 2.30 | |
| GUARD CAP | ||||
| 0008 | 4931461114 | 4.49 | 5.43 | |
| WASHER | ||||
| 0011 | 633585001 | 1.80 | 2.18 | |
| RETAINING RING | ||||
| 0012 | 4931461115 | 1.90 | 2.30 | |
| WASHER | ||||
| 0013 | 4931461116 | 1.80 | 2.18 | |
| SPRING | ||||
| 0014 | 692687001 | 1.80 | 2.18 | |
| SCREW 1/4-20X3/4 | ||||
| 0016 | 06755860 | 4.32 | 5.23 | |
| WASHER | ||||
| 0019 | 4931461117 | 1.80 | 2.18 | |
| GLIDING SHOE | ||||
| 0020 | 4931461118 | 42.77 | 51.75 | |
| PIN | ||||
| 0021 | 4931461119 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 0025 | 4931461120 | |||
| DIAPHRAGM | ||||
| 0026 | 4931461121 | 23.76 | 28.75 | |
| FELT | ||||
| 0027 | 4931461122 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0028 | 4931461123 | 1.90 | 2.30 | |
| SPRING | ||||
| 0029 | 4931461124 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0032 | 4931461125 | |||
| SCREW (3 needed) | ||||
| 0033 | 4931461126 | 1.80 | 2.18 | |
| HOOK | ||||
| 0034 | 4931461127 | 8.09 | 9.79 | |
| SPRING WASHER | ||||
| 0035 | 672029001 | 1.90 | 2.30 | |
| TRIGGER | ||||
| 0036 | 4931461128 | 1.80 | 2.18 | |
| SCREW (24 needed) | ||||
| 0037 | 06827261 | 3.60 | 4.36 | |
| SCREW (9 required) | ||||
| 0037 | 6827261 | 1.00 | 1.21 | |
| HOUSING | ||||
| 0038 | 4931461129 | 44.35 | 53.66 | |
| GUIDE SHAFT | ||||
| 0039 | 4931461130 | 9.00 | 10.89 | |
| TENSION LEVER | ||||
| 0040 | 4931461131 | 4.49 | 5.43 | |
| SCREW TORX SCREW (2 needed) | ||||
| 0041 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (13 required) | ||||
| 0041 | 6825314 | 1.00 | 1.21 | |
| KEY | ||||
| 0042 | 4931436125 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0050 | 4931461132 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0051 | 4931461133 | 10.80 | 13.07 | |
| RATING PLATE | ||||
| 0052 | 4931461134 | 1.90 | 2.30 | |
| GUARD CAP | ||||
| 0053 | 4931461135 | 26.93 | 32.59 | |
| SWITCH ASSEMBLY | ||||
| 0054 | 4931461136 | 158.40 | 191.66 | |
| SAW BLADE PROTECT. | ||||
| 0055 | 4931461137 | 25.34 | 30.66 | |
| TRIGGER | ||||
| 0056 | 4931461138 | 3.60 | 4.36 | |
| SCREW (23 needed) | ||||
| 0057 | 660031017 | 1.90 | 2.30 | |
| SCREW (12 needed) | ||||
| 0058 | 06825285 | 3.60 | 4.36 | |
| SCREW (12 needed) | ||||
| 0058 | 6825285 | 1.00 | 1.21 | |
| MOTOR HOUSING | ||||
| 0059 | 4931461139 | 12.60 | 15.25 | |
| GEAR CASE / ROTOR ASSY | ||||
| 0060 | 4931466480 | 144.14 | 174.41 | |
| NO DESCRIPTION | ||||
| 0701 | 4932453386 | 60.72 | 73.47 | |
| No longer available, no replacement | ||||
| 0702 | 4931461140 | |||
