Here you will find all available parts and drawings of the 'Milwaukee 4000469259 (M18FJS-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

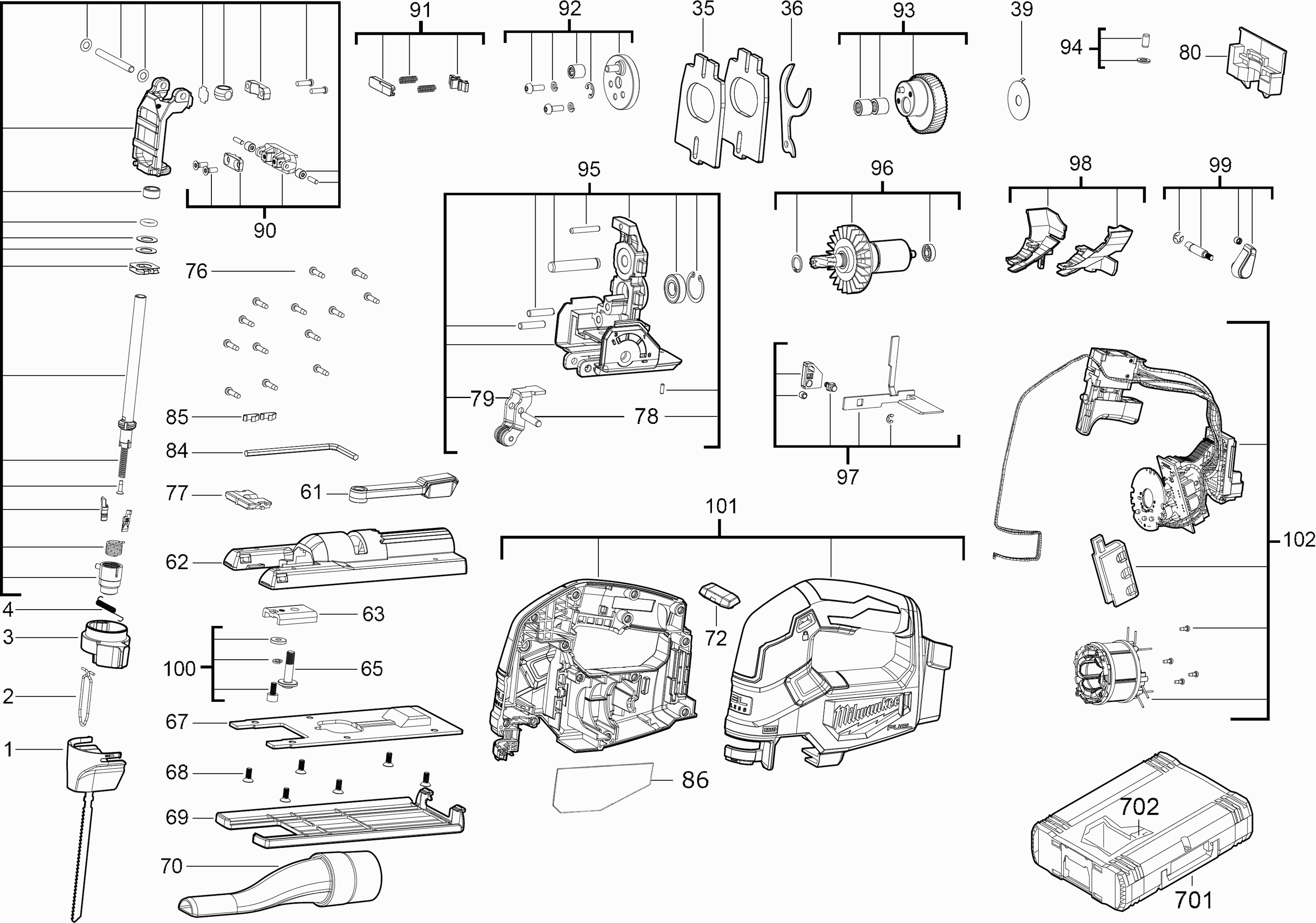

Technical drawing of model Milwaukee 4000469259 (M18FJS-0)
Spare parts list of model Milwaukee 4000469259 (M18FJS-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER | ||||
| 0001 | 4931466420 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0002 | 4931454320 | |||
| SHOE REL.LEVER KIT | ||||
| 0003 | 4931466421 | 4.54 | 5.49 | |
| SPRING | ||||
| 0004 | 4931454321 | 5.40 | 6.53 | |
| ECCENTRIC BEARING (2 needed) | ||||
| 0035 | 4931454304 | 7.20 | 8.71 | |
| ECCENTRIC DISC | ||||
| 0036 | 4931454305 | 4.80 | 5.81 | |
| WASHER | ||||
| 0039 | 4931454307 | 1.80 | 2.18 | |
| CLAMPING LEVER | ||||
| 0061 | 4931466422 | 4.49 | 5.43 | |
| GLIDING SHOE | ||||
| 0062 | 4931466423 | 25.34 | 30.66 | |
| HOLDING PLATE | ||||
| 0063 | 4931454313 | 2.28 | 2.76 | |
| SCREW | ||||
| 0065 | 4931466424 | 3.00 | 3.63 | |
| BASE PLATE | ||||
| 0067 | 4931466425 | 4.54 | 5.49 | |
| SCREW (2 needed) | ||||
| 0068 | 4931454315 | 3.00 | 3.63 | |
| COVER | ||||
| 0069 | 4931466426 | 4.49 | 5.43 | |
| DUST EXTRACTION | ||||
| 0070 | 4931466427 | 4.49 | 5.43 | |
| PUSH BUTTON | ||||
| 0072 | 4931466428 | 1.80 | 2.18 | |
| SCREW (14 needed) | ||||
| 0076 | 660024030 | 3.00 | 3.63 | |
| ANT-CHIPPING DEVICE | ||||
| 0077 | 4931431787 | 4.54 | 5.49 | |
| HOLDING PIN | ||||
| 0078 | 4931472871 | 2.28 | 2.76 | |
| GUIDE ROLLER | ||||
| 0079 | 4931472870 | 15.84 | 19.17 | |
| GEAR BOX COVER | ||||
| 0080 | 4931466429 | 4.49 | 5.43 | |
| HEX WRENCH | ||||
| 0084 | 4931466430 | 2.28 | 2.76 | |
| SPRING (2 needed) | ||||
| 0085 | 4931466431 | 2.28 | 2.76 | |
| RATING PLATE | ||||
| 0086 | 4931466432 | 1.80 | 2.18 | |
| SPINDLE KIT | ||||
| 0090 | 4931466433 | 155.23 | 187.83 | |
| BACKING PLATE | ||||
| 0091 | 4931454328 | 9.00 | 10.89 | |
| SPACER PLATE | ||||
| 0092 | 4931466434 | 26.93 | 32.59 | |
| GEAR | ||||
| 0093 | 4931466435 | 44.35 | 53.66 | |
| SEAL | ||||
| 0094 | 4931454337 | 8.09 | 9.79 | |
| GEAR BOX ASSY | ||||
| 0095 | 4931466436 | 95.04 | 115.00 | |
| MOTOR ASSEMBLY | ||||
| 0096 | 4931466437 | 79.20 | 95.83 | |
| BLOWER | ||||
| 0097 | 4931466438 | 28.51 | 34.50 | |
| CLUTCH HOUSING | ||||
| 0098 | 4931466439 | 10.80 | 13.07 | |
| SHOE REL.LEVER KIT | ||||
| 0099 | 4931466440 | 17.42 | 21.08 | |
| COVER-KIT | ||||
| 0100 | 4931466441 | 9.00 | 10.89 | |
| HOUSING | ||||
| 0101 | 4931466442 | 61.78 | 74.75 | |
| SWITCH | ||||
| 0102 | 4931466443 | 190.08 | 230.00 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931466444 | 17.42 | 21.08 | |
