Here you will find all available parts and drawings of the 'Milwaukee 4000481988 (M18FHM-0C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

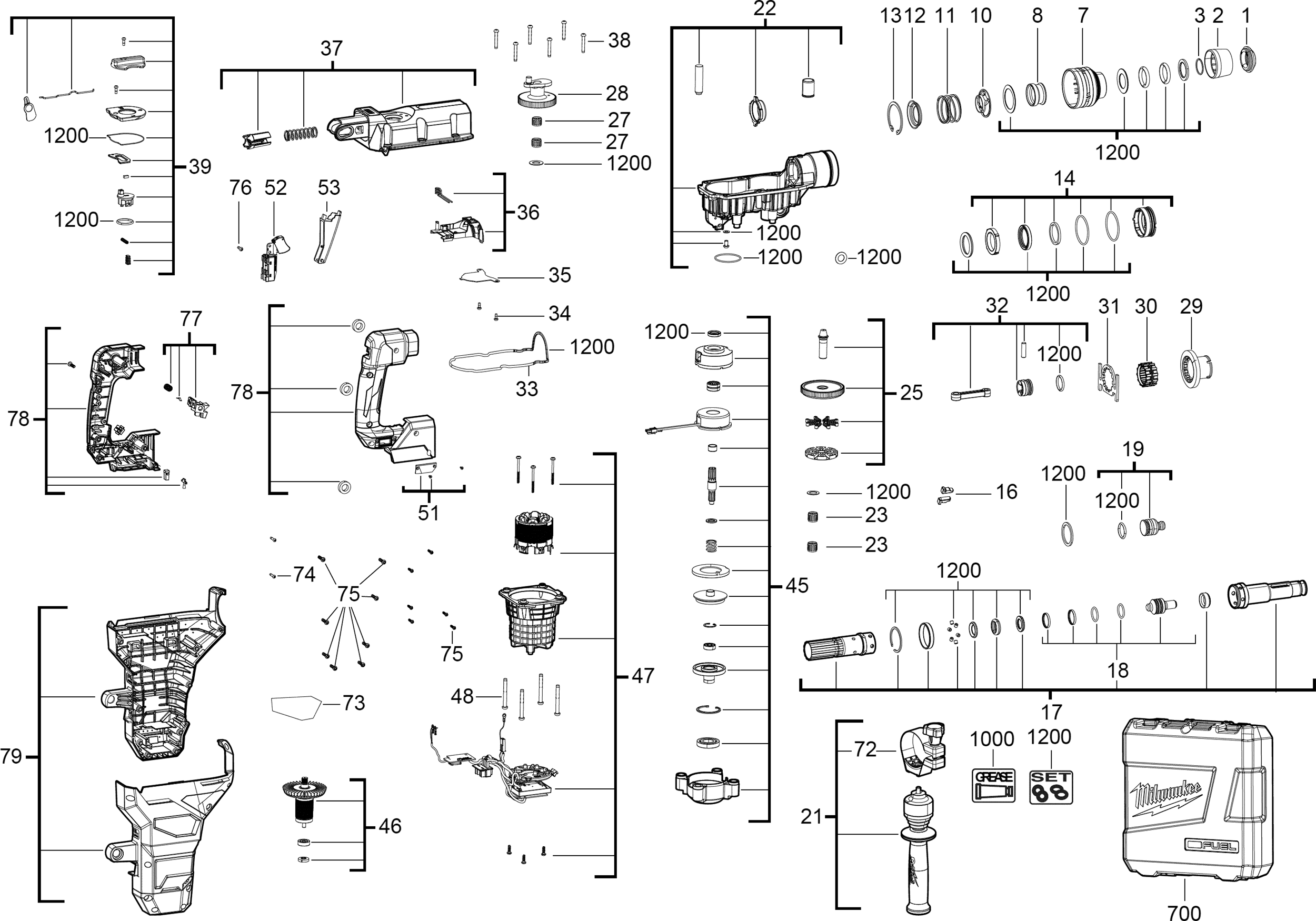

Technical drawing of model Milwaukee 4000481988 (M18FHM-0C)
Spare parts list of model Milwaukee 4000481988 (M18FHM-0C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RUBBER CAP | ||||
| 0001 | 4931435353 | 5.40 | 6.53 | |
| CAP | ||||
| 0002 | 4931435133 | 3.00 | 3.63 | |
| HOLDING RING | ||||
| 0003 | 4931435134 | 3.00 | 3.63 | |
| COLLAR | ||||
| 0007 | 4931435138 | 4.20 | 5.08 | |
| INTERLOCK SLEAVE | ||||
| 0008 | 4931435139 | 19.01 | 23.00 | |
| INTERLOCK ELEMENT | ||||
| 0010 | 4931466761 | 5.30 | 6.41 | |
| SPRING | ||||
| 0011 | 4931435140 | 3.00 | 3.63 | |
| PLATE | ||||
| 0012 | 633152001 | 4.49 | 5.43 | |
| PROTECTION WASHER | ||||
| 0013 | 4931435141 | 3.00 | 3.63 | |
| BEARING END PLATE | ||||
| 0014 | 4931466634 | 30.49 | 36.89 | |
| CAM (2 needed) | ||||
| 0016 | 4931435144 | 10.80 | 13.07 | |
| SPINDLE KIT | ||||
| 0017 | 4931466635 | 285.12 | 345.00 | |
| SNAP DIE | ||||
| 0018 | 4931466636 | 91.87 | 111.16 | |
| PERCUSSION BODY | ||||
| 0019 | 4931466637 | 41.18 | 49.83 | |
| AUXILIARY HANDLE | ||||
| 0021 | 4931466638 | 76.03 | 92.00 | |
| GEAR BOX | ||||
| 0022 | 4931466639 | 155.23 | 187.83 | |
| NEEDLE BEARING (2 needed) | ||||
| 0023 | 4931466640 | 5.40 | 6.53 | |
| SLIP CLUTCH | ||||
| 0025 | 4931466641 | 128.30 | 155.24 | |
| NEEDLE BEARING (2 needed) | ||||
| 0027 | 4931435168 | 9.00 | 10.89 | |
| CRANK WHEEL | ||||
| 0028 | 4931466642 | 83.95 | 101.58 | |
| BEVEL GEAR | ||||
| 0029 | 4931466643 | 85.54 | 103.50 | |
| SET COLLAR | ||||
| 0030 | 4931466644 | 15.84 | 19.17 | |
| LOCKING PLATE | ||||
| 0031 | 4931466645 | 7.20 | 8.71 | |
| PISTON | ||||
| 0032 | 4931466646 | 25.34 | 30.66 | |
| GASKET | ||||
| 0033 | 4931495609 | 11.00 | 13.31 | |
| SCREW (2 needed) | ||||
| 0034 | 661189001 | 3.00 | 3.63 | |
| LATCH PLATE | ||||
| 0035 | 4931466647 | 5.40 | 6.53 | |
| ADJUSTING PIECE | ||||
| 0036 | 4931466648 | 10.80 | 13.07 | |
| GEAR BOX COVER | ||||
| 0037 | 4931466649 | 33.26 | 40.24 | |
| SCREW (6 needed) | ||||
| 0038 | 4931435158 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0039 | 4931466650 | 20.59 | 24.91 | |
| COUPLING SET | ||||
| 0045 | 4931466651 | 323.14 | 391.00 | |
| ARMATURE ASSEMBLY | ||||
| 0046 | 4931466652 | 115.63 | 139.91 | |
| MOTOR ASSEMBLY | ||||
| 0047 | 4931506821 | 283.25 | 342.73 | |
| SCREW (4 needed) | ||||
| 0048 | 4931466654 | 3.00 | 3.63 | |
| PROTECTIVE CAP | ||||
| 0051 | 4931466655 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0052 | 4931465965 | 28.51 | 34.50 | |
| No longer available, no replacement | ||||
| 0053 | 4931466656 | |||
| BAND | ||||
| 0072 | 4931466657 | 33.26 | 40.24 | |
| RATING PLATE | ||||
| 0073 | 4931506822 | 1.20 | 1.45 | |
| SCREW (18 needed) | ||||
| 0074 | 660031017 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 0075 | 4931466659 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0076 | 4931447515 | |||
| LOCKING PIECE | ||||
| 0077 | 4931466660 | 7.20 | 8.71 | |
| HANDLE SET | ||||
| 0078 | 4931466661 | 44.35 | 53.66 | |
| HOUSING | ||||
| 0079 | 4931466662 | 82.37 | 99.67 | |
| CARRYING CASE | ||||
| 0700 | 4931466663 | 128.30 | 155.24 | |
| GREASE (2 needed) | ||||
| 1000 | 4931455865 | 23.76 | 28.75 | |
| MAINTENANCE SET | ||||
| 1200 | 4931466664 | 121.97 | 147.58 | |
