Here you will find all available parts and drawings of the 'Milwaukee 4000491576 (M18FHACOD32-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

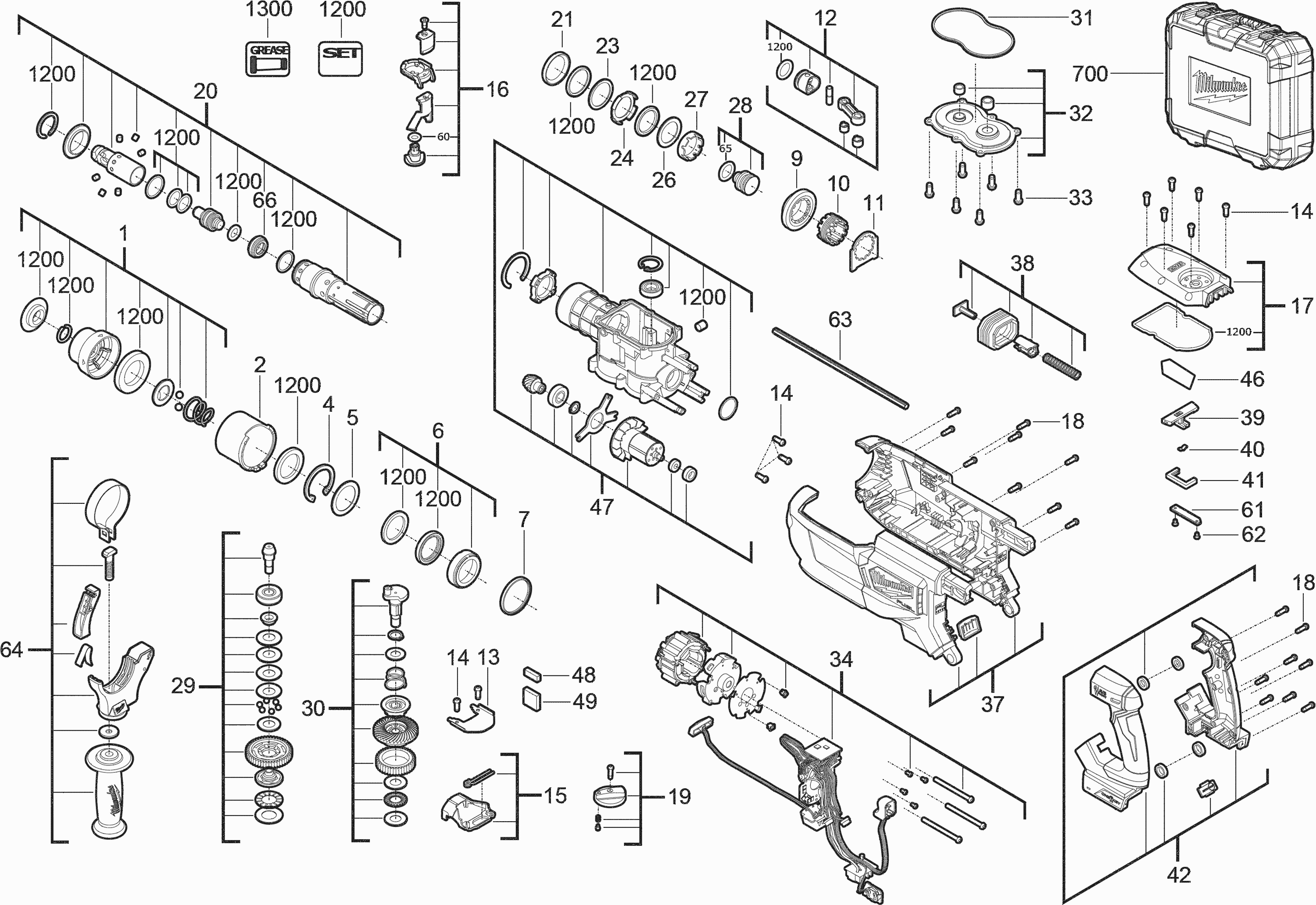

Technical drawing of model Milwaukee 4000491576 (M18FHACOD32-0)
Spare parts list of model Milwaukee 4000491576 (M18FHACOD32-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COLLAR | ||||
| 0001 | 4931494780 | 32.45 | 39.26 | |
| SLEEVE | ||||
| 0002 | 4931479800 | 3.60 | 4.36 | |
| SNAP RING | ||||
| 0004 | 4931479801 | 3.60 | 4.36 | |
| WASHER | ||||
| 0005 | 4931479802 | 3.00 | 3.63 | |
| BUSHING | ||||
| 0006 | 4931479803 | 16.50 | 19.96 | |
| RING | ||||
| 0007 | 4931494781 | 4.20 | 5.08 | |
| BEVEL GEAR | ||||
| 0009 | 4931479812 | 11.09 | 13.42 | |
| SLEEVE | ||||
| 0010 | 4931479813 | 7.80 | 9.44 | |
| LOCKING PLATE | ||||
| 0011 | 4931479814 | 3.79 | 4.59 | |
| PISTON | ||||
| 0012 | 4931479815 | 28.05 | 33.94 | |
| CLAMPING PIECE | ||||
| 0013 | 4931479816 | 3.00 | 3.63 | |
| SCREW (27 needed) | ||||
| 0014 | 4931435150 | 3.60 | 4.36 | |
| COVER | ||||
| 0015 | 4931479817 | 11.40 | 13.79 | |
| CLAMPING SET | ||||
| 0016 | 4931494782 | 15.25 | 18.45 | |
| GEAR COVER | ||||
| 0017 | 4931494783 | 28.05 | 33.94 | |
| SCREW (18 needed) | ||||
| 0018 | 660031017 | 3.60 | 4.36 | |
| PUSH BUTTON | ||||
| 0019 | 4931479829 | 12.47 | 15.09 | |
| SPINDLE KIT | ||||
| 0020 | 4931494784 | 152.46 | 184.48 | |
| WASHER | ||||
| 0021 | 4931479805 | 3.00 | 3.63 | |
| WASHER | ||||
| 0023 | 4931479807 | 3.00 | 3.63 | |
| BUFFER | ||||
| 0024 | 4931436375 | 3.00 | 3.63 | |
| WASHER (3 needed) | ||||
| 0026 | 4931436371 | 3.00 | 3.63 | |
| SPINDLE | ||||
| 0027 | 4931479809 | 3.60 | 4.36 | |
| STRIKER | ||||
| 0028 | 4931479810 | 25.85 | 31.28 | |
| CLUTCH | ||||
| 0029 | 4931494785 | 87.45 | 105.81 | |
| CRANK ASSEMBLY | ||||
| 0030 | 4931494786 | 76.23 | 92.24 | |
| SEAL | ||||
| 0031 | 4931494787 | 6.00 | 7.26 | |
| GEAR CASE | ||||
| 0032 | 4931494788 | 36.85 | 44.59 | |
| SCREW (6 needed) | ||||
| 0033 | 4931436390 | 1.80 | 2.18 | |
| MOTOR ASSEMBLY | ||||
| 0034 | 4931494789 | 279.51 | 338.21 | |
| HOUSING | ||||
| 0037 | 4931494790 | 62.70 | 75.87 | |
| ASSEMBLY SET | ||||
| 0038 | 4931494791 | 12.71 | 15.38 | |
| CROSS BRACKET | ||||
| 0039 | 4931494792 | 3.00 | 3.63 | |
| SPRING PLATE | ||||
| 0040 | 4931479612 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0041 | 4931479825 | 3.00 | 3.63 | |
| HANDLE SET | ||||
| 0042 | 4931494793 | 54.63 | 66.10 | |
| RATING PLATE | ||||
| 0046 | 4931494794 | 3.00 | 3.63 | |
| ROTOR | ||||
| 0047 | 4931494795 | 140.80 | 170.37 | |
| CROSS BRACKET | ||||
| 0048 | 4931494796 | 3.00 | 3.63 | |
| CROSS BRACKET | ||||
| 0049 | 4931494797 | 3.00 | 3.63 | |
| O-RING | ||||
| 0060 | 4931436413 | 3.00 | 3.63 | |
| COVER | ||||
| 0061 | 4931479660 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0062 | 4931465385 | 3.00 | 3.63 | |
| DEPTH GAUGE | ||||
| 0063 | 4931479598 | 4.80 | 5.81 | |
| HANDLE | ||||
| 0064 | 4931494798 | 46.20 | 55.90 | |
| O-RING | ||||
| 0065 | 4931494799 | 3.00 | 3.63 | |
| ANVIL | ||||
| 0066 | 4931479839 | 14.30 | 17.30 | |
| CARRYING CASE | ||||
| 0700 | 4931494800 | 127.05 | 153.73 | |
| MAINTENANCE SET | ||||
| 1200 | 4931494801 | 76.23 | 92.24 | |
| GEAR GREASE | ||||
| 1300 | 4931443288 | 39.38 | 47.65 | |
