Here you will find all available parts and drawings of the 'Milwaukee 4000497065 ( M18FHACO540-0C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

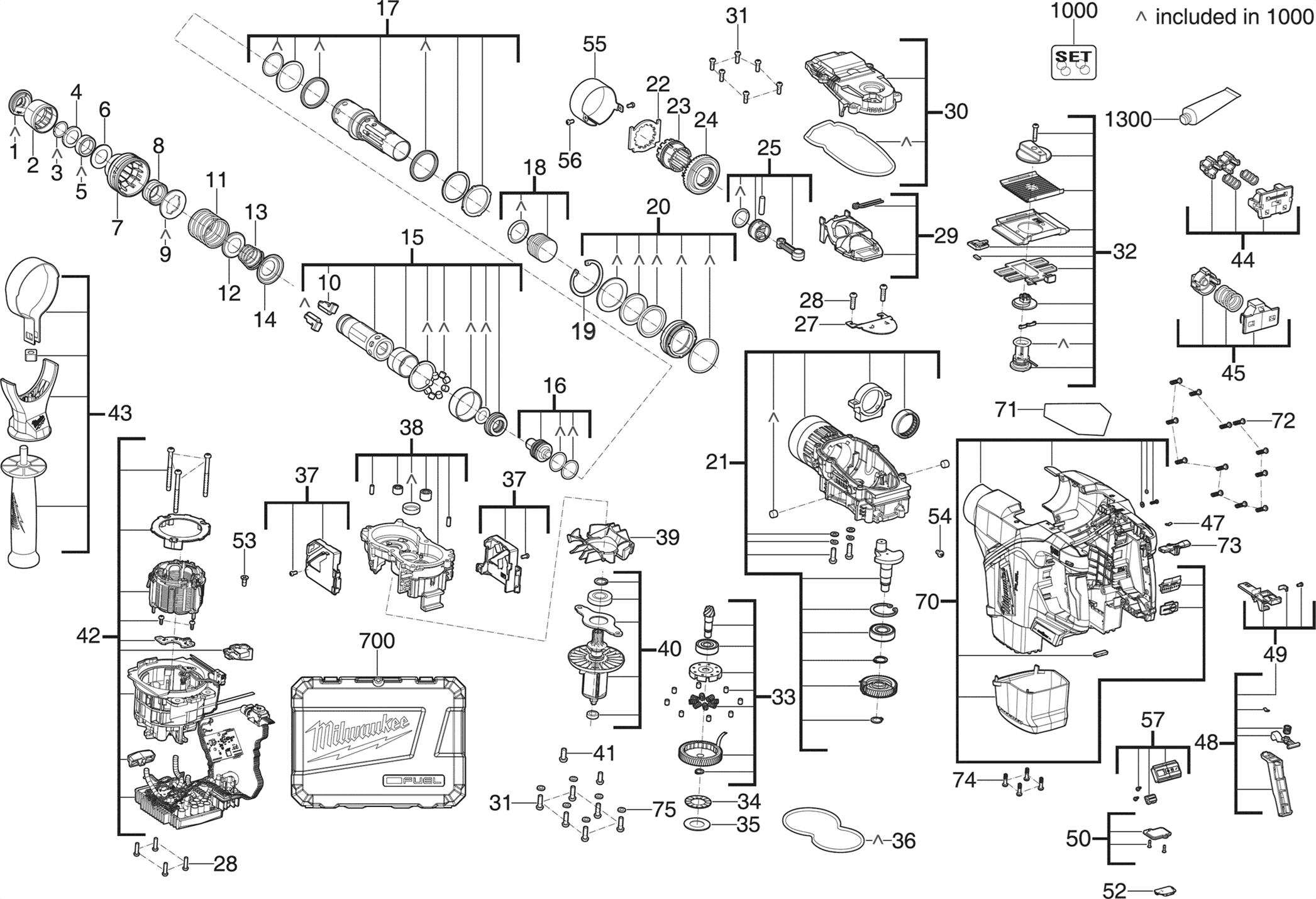

Technical drawing of model Milwaukee 4000497065 ( M18FHACO540-0C )
Spare parts list of model Milwaukee 4000497065 ( M18FHACO540-0C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RUBBER CAP | ||||
| 0001 | 4931435353 | 5.40 | 6.53 | |
| CONE | ||||
| 0002 | 4931506087 | 3.00 | 3.63 | |
| RING | ||||
| 0003 | 4931511175 | 1.20 | 1.45 | |
| WASHER | ||||
| 0004 | 4931511029 | 7.20 | 8.71 | |
| RING | ||||
| 0005 | 4931511176 | 9.60 | 11.62 | |
| WASHER | ||||
| 0006 | 4931435137 | 3.00 | 3.63 | |
| SET COLLAR | ||||
| 0007 | 4931506089 | 6.00 | 7.26 | |
| SLEEVE | ||||
| 0008 | 4931506091 | 9.60 | 11.62 | |
| WASHER | ||||
| 0009 | 4931511177 | 3.60 | 4.36 | |
| LATCH (2 needed) | ||||
| 0010 | 4931511033 | 8.40 | 10.16 | |
| SPRING | ||||
| 0011 | 4931511178 | 3.60 | 4.36 | |
| WASHER | ||||
| 0012 | 4931506094 | 1.20 | 1.45 | |
| SPRING | ||||
| 0013 | 4931506095 | 1.20 | 1.45 | |
| RETAINING PLATE | ||||
| 0014 | 4931511179 | 4.80 | 5.81 | |
| SPINDLE KIT | ||||
| 0015 | 4931511180 | 85.80 | 103.82 | |
| ANVIL | ||||
| 0016 | 4931506098 | 39.60 | 47.92 | |
| SPINDLE KIT | ||||
| 0017 | 4931511181 | 82.50 | 99.82 | |
| STRIKER | ||||
| 0018 | 4931506100 | 31.90 | 38.60 | |
| PROTECTION WASHER | ||||
| 0019 | 4931435141 | 3.00 | 3.63 | |
| BUSHING | ||||
| 0020 | 4931511182 | 36.30 | 43.92 | |
| GEAR CASE | ||||
| 0021 | 4931511183 | 115.50 | 139.76 | |
| LOCKING PLATE | ||||
| 0022 | 4931506103 | 3.60 | 4.36 | |
| SET COLLAR | ||||
| 0023 | 4931506104 | 23.10 | 27.95 | |
| BEVEL GEAR | ||||
| 0024 | 4931511184 | 36.30 | 43.92 | |
| PISTON | ||||
| 0025 | 4931506106 | 37.40 | 45.25 | |
| PLATE | ||||
| 0027 | 4931511185 | 3.60 | 4.36 | |
| SCREW | ||||
| 0028 | 4931466683 | 1.80 | 2.18 | |
| BRACKET | ||||
| 0029 | 4931506108 | 17.60 | 21.30 | |
| COVER | ||||
| 0030 | 4931511186 | 23.10 | 27.95 | |
| SCREW (4 needed) | ||||
| 0031 | 4931466797 | 1.80 | 2.18 | |
| TURNING KNOB | ||||
| 0032 | 4931511187 | 42.90 | 51.91 | |
| CLUTCH | ||||
| 0033 | 4931506111 | 58.30 | 70.54 | |
| NEEDLE BEARING | ||||
| 0034 | 4931436408 | 4.54 | 5.49 | |
| WASHER | ||||
| 0035 | 4931506112 | 1.20 | 1.45 | |
| GASKET | ||||
| 0036 | 4931506113 | 4.80 | 5.81 | |
| COVER | ||||
| 0037 | 4931511188 | 13.20 | 15.97 | |
| GEAR CASE | ||||
| 0038 | 4931511189 | 70.40 | 85.18 | |
| COVER | ||||
| 0039 | 4931511190 | 3.60 | 4.36 | |
| ARMATURE | ||||
| 0040 | 4931511191 | 132.00 | 159.72 | |
| SCREW (4 needed) | ||||
| 0041 | 4931466678 | 1.80 | 2.18 | |
| ELECTRONIC | ||||
| 0042 | 4931511192 | 265.10 | 320.77 | |
| HANDLE | ||||
| 0043 | 4931506122 | 40.70 | 49.25 | |
| HOLDER | ||||
| 0044 | 4931511193 | 14.30 | 17.30 | |
| HOLDER | ||||
| 0045 | 4931511194 | 14.30 | 17.30 | |
| SPRING PLATE | ||||
| 0047 | 4931479612 | 3.00 | 3.63 | |
| LOCK | ||||
| 0048 | 4931511195 | 20.90 | 25.29 | |
| CROSS BRACKET | ||||
| 0049 | 4931511196 | 18.70 | 22.63 | |
| COVER | ||||
| 0050 | 4931511197 | 9.60 | 11.62 | |
| COIN CELL PCBA | ||||
| 0052 | 4931511198 | 18.70 | 22.63 | |
| SCREW | ||||
| 0053 | 4931511199 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0054 | 4931435162 | |||
| BUSHING | ||||
| 0055 | 4931511200 | 8.40 | 10.16 | |
| SCREW | ||||
| 0056 | 4931454390 | 3.00 | 3.63 | |
| PUSH-BUTTON | ||||
| 0057 | 4931511201 | 29.70 | 35.94 | |
| HANDLE | ||||
| 0070 | 4931511202 | 89.10 | 107.81 | |
| RATING PLATE | ||||
| 0071 | 4931511203 | 1.20 | 1.45 | |
| SCREW (15 needed) | ||||
| 0072 | 4931466659 | 1.80 | 2.18 | |
| SLIDING SWITCH | ||||
| 0073 | 4931511204 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0074 | 4931511205 | 1.20 | 1.45 | |
| WASHER (6 needed) | ||||
| 0075 | 4931511054 | 3.00 | 3.63 | |
| CARRYING CASE | ||||
| 0700 | 4931511206 | 73.70 | 89.18 | |
| MAINTENANCE SET | ||||
| 1000 | 4931511207 | 88.00 | 106.48 | |
| GEAR GREASE | ||||
| 1300 | 4931443288 | 39.38 | 47.65 | |
