Here you will find all available parts and drawings of the 'Milwaukee 4000460936 (M18FFSDC10-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

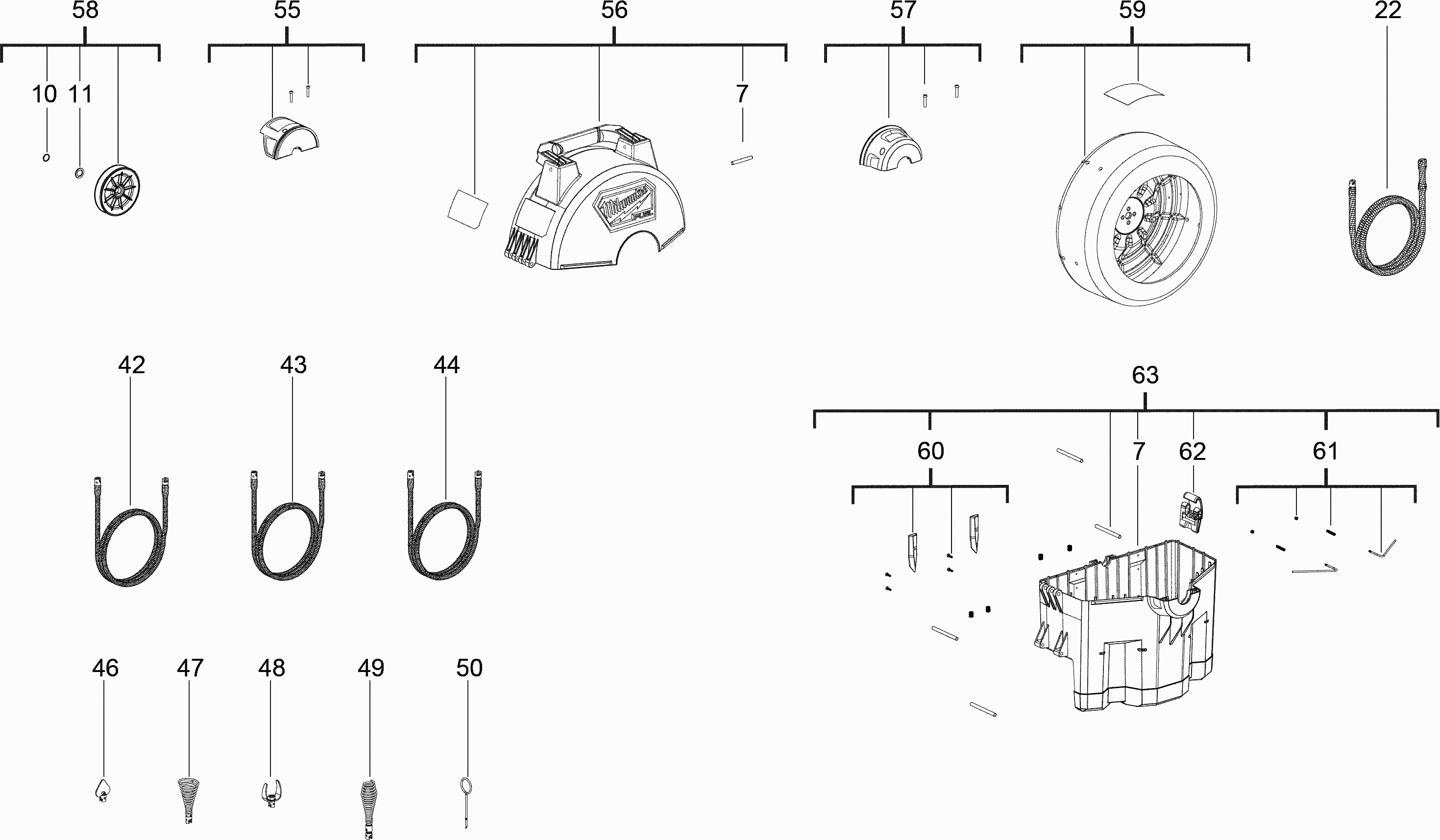

Technical drawing of model Milwaukee 4000460936 (M18FFSDC10-0)
Spare parts list of model Milwaukee 4000460936 (M18FFSDC10-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| PIN (5 needed) | ||||
| 0007 | 4931465451 | 4.49 | 5.43 | |
| RETAINING RING | ||||
| 0010 | 4931465452 | 3.00 | 3.63 | |
| WASHER | ||||
| 0011 | 4931465453 | 3.00 | 3.63 | |
| CABLE | ||||
| 0022 | 4931465454 | 41.18 | 49.83 | |
| 10mm x 15.2m Inner Core Coupling End | ||||
| 0042 | 48532773 | 231.28 | 279.85 | |
| 13mm x 15.2m Inner Core Coupling End | ||||
| 0043 | 48532774 | 247.39 | 299.34 | |
| 16mm x 15.2 Open Wind Coupling End | ||||
| 0044 | 48532775 | 275.55 | 333.42 | |
| Medium Spade Bit for 10 13 16mm Cables | ||||
| 0046 | 48532788 | 55.70 | 67.40 | |
| Medium Funnel Auger 10 13 16mm Cables | ||||
| 0047 | 48532786 | 50.60 | 61.23 | |
| Medium C Cutter for 10 13 16mm Cables | ||||
| 0048 | 48532789 | 32.31 | 39.10 | |
| Medium Drop Head for 10 13 16mm Cables | ||||
| 0049 | 48532787 | 47.30 | 57.23 | |
| TOOL | ||||
| 0050 | 4931465455 | 4.49 | 5.43 | |
| BEARING HOUSING | ||||
| 0055 | 4931465456 | 11.69 | 14.14 | |
| HOUSING COVER | ||||
| 0056 | 4931465457 | 82.37 | 99.67 | |
| BEARING HOUSING | ||||
| 0057 | 4931465458 | 11.69 | 14.14 | |
| FEEDER ROLLER | ||||
| 0058 | 4931465459 | 16.20 | 19.60 | |
| No longer available, no replacement | ||||
| 0059 | 4931465460 | |||
| GUIDE PIECE | ||||
| 0060 | 4931465461 | 9.91 | 11.99 | |
| ROD (2 needed) | ||||
| 0061 | 4931465462 | 9.91 | 11.99 | |
| LATCH (3 needed) | ||||
| 0062 | 4931465463 | 11.69 | 14.14 | |
| HOUSING BOTTOM | ||||
| 0063 | 4931465464 | 121.97 | 147.58 | |
| RATING PLATE | ||||
| 0070 | 4931465465 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0071 | 4931465466 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0072 | 4931454853 | |||
| BELT | ||||
| 0073 | 4931465467 | 80.78 | 97.74 | |
| PLATE | ||||
| 0074 | 4931465468 | 147.31 | 178.25 | |
| SCREW (6 needed) | ||||
| 0075 | 4931436390 | 1.80 | 2.18 | |
| STRAP | ||||
| 0076 | 4931465469 | 5.40 | 6.53 | |
| PIN | ||||
| 0077 | 4931465470 | 3.00 | 3.63 | |
| SCREW (10 needed) | ||||
| 0078 | 4931465471 | 3.00 | 3.63 | |
| BELT GUARD | ||||
| 0079 | 4931465472 | 8.09 | 9.79 | |
| RETAINER | ||||
| 0080 | 4931465473 | 15.29 | 18.50 | |
| SWITCH MOUNTING | ||||
| 0081 | 4931465474 | 4.49 | 5.43 | |
| HOUSING | ||||
| 0082 | 4931465475 | 60.19 | 72.83 | |
| SWITCH BOARD | ||||
| 0083 | 4931465476 | 4.54 | 5.49 | |
| SLIDING SWITCH | ||||
| 0084 | 4931465477 | 4.49 | 5.43 | |
| LABEL | ||||
| 0085 | 4931465478 | 7.20 | 8.71 | |
| BALL BEARING | ||||
| 0086 | 4931436014 | 5.30 | 6.41 | |
| SCREW (8 needed) | ||||
| 0087 | 4931465479 | 3.00 | 3.63 | |
| BUSHING (2 needed) | ||||
| 0088 | 4931465480 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0089 | 4931465481 | 9.00 | 10.89 | |
| HOLDER | ||||
| 0090 | 4931465482 | 8.09 | 9.79 | |
| STRAP | ||||
| 0091 | 4931465483 | 45.94 | 55.59 | |
| HOUSING | ||||
| 0092 | 4931465484 | 72.86 | 88.16 | |
| TERMINAL STRIP | ||||
| 0093 | 4931465485 | 25.34 | 30.66 | |
| FEEDER ROLLER (2 needed) | ||||
| 0094 | 4931465486 | 17.42 | 21.08 | |
| TENSIONING DEVICE | ||||
| 0095 | 4931465487 | 45.94 | 55.59 | |
| FEEDER ROLLER | ||||
| 0096 | 4931465488 | 16.20 | 19.60 | |
| MOTOR ASSEMBLY | ||||
| 0097 | 4931465489 | 63.36 | 76.67 | |
| MOTOR HOUSING | ||||
| 0098 | 4931465490 | 13.51 | 16.35 | |
| ELECTRONIC | ||||
| 0099 | 4931465491 | 240.77 | 291.33 | |
| BASIC SOCKET | ||||
| 0100 | 4931465492 | 64.94 | 78.58 | |
| HOUSING BOTTOM | ||||
| 0102 | 4931465493 | 49.10 | 59.41 | |
| SLIDER | ||||
| 0103 | 4931465494 | 22.18 | 26.84 | |
| GEAR CASE | ||||
| 0104 | 4931465495 | 77.62 | 93.92 | |
| FOOT PEDAL | ||||
| 0105 | 4931465496 | 120.38 | 145.66 | |
| PLUG | ||||
| 0106 | 4931466591 | 12.60 | 15.25 | |
