Here you will find all available parts and drawings of the 'Milwaukee 4000503385 ( M18FCS66GR3-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

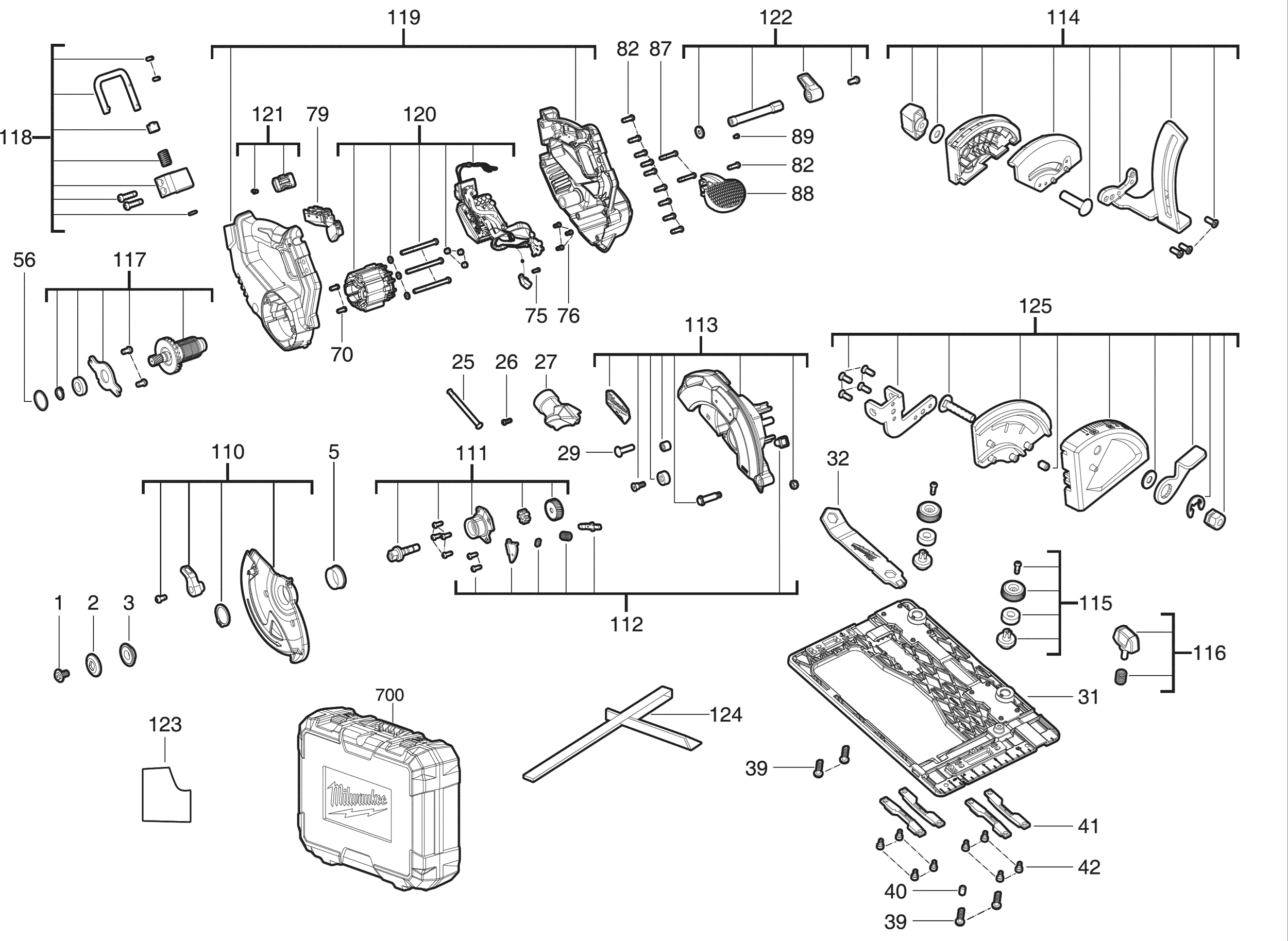

Technical drawing of model Milwaukee 4000503385 ( M18FCS66GR3-0 )
Spare parts list of model Milwaukee 4000503385 ( M18FCS66GR3-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FLANGE BOLT | ||||
| 0001 | 4931507076 | 1.20 | 1.45 | |
| FLANGE | ||||
| 0002 | 43340485 | 4.20 | 5.08 | |
| FLANGE WASHER | ||||
| 0003 | 4931507077 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0005 | 4931507078 | 1.20 | 1.45 | |
| SPRING | ||||
| 0025 | 40500045 | 3.00 | 3.63 | |
| SCREW | ||||
| 0026 | 4931465872 | 3.00 | 3.63 | |
| DUST EXTRACTION | ||||
| 0027 | 4931507079 | 4.20 | 5.08 | |
| SCREW | ||||
| 0029 | 4931507080 | 1.20 | 1.45 | |
| PROTECTING SHOE | ||||
| 0031 | 4931507081 | 76.45 | 92.50 | |
| WRENCH | ||||
| 0032 | 4931507082 | 4.80 | 5.81 | |
| SCREW | ||||
| 0039 | 06956290 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0040 | 06831600 | |||
| SLIDE (4 needed) | ||||
| 0041 | 4931494162 | 3.00 | 3.63 | |
| SCREW (8 needed) | ||||
| 0042 | 4931507083 | 1.20 | 1.45 | |
| RUBBER RING | ||||
| 0056 | 4931507084 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0070 | 4931465883 | 3.00 | 3.63 | |
| SCREW | ||||
| 0075 | 4931496888 | 1.20 | 1.45 | |
| SCREW (3 needed) | ||||
| 0076 | 4931507085 | 1.20 | 1.45 | |
| SWITCH KIT | ||||
| 0079 | 4931507086 | 23.10 | 27.95 | |
| SCREW (10 needed) | ||||
| 0082 | 4931506283 | 1.20 | 1.45 | |
| SCREW (2 needed) | ||||
| 0087 | 4931507087 | 1.20 | 1.45 | |
| HANDLE | ||||
| 0088 | 4931507088 | 4.80 | 5.81 | |
| SCREW | ||||
| 0089 | 4931507089 | 1.20 | 1.45 | |
| CUTTING GUARD | ||||
| 0110 | 4931507090 | 41.80 | 50.58 | |
| OUTPUT SHAFT KIT | ||||
| 0111 | 4931507091 | 44.00 | 53.24 | |
| SPINDLE LOCK | ||||
| 0112 | 4931507092 | 13.20 | 15.97 | |
| CUTTING GUARD | ||||
| 0113 | 4931507093 | 79.75 | 96.50 | |
| ADJUSTABLE SEGMENT | ||||
| 0114 | 4931507094 | 39.60 | 47.92 | |
| KNOB | ||||
| 0115 | 4931507095 | 13.20 | 15.97 | |
| KNOB | ||||
| 0116 | 4931507096 | 12.10 | 14.64 | |
| ROTOR | ||||
| 0117 | 4931507097 | 86.90 | 105.15 | |
| HOOK | ||||
| 0118 | 4931507098 | 18.70 | 22.63 | |
| HOUSING | ||||
| 0119 | 4931507099 | 34.10 | 41.26 | |
| ELECTRONIC | ||||
| 0120 | 4931507100 | 209.00 | 252.89 | |
| LOCK RELEASE KIT | ||||
| 0121 | 4931507101 | 12.10 | 14.64 | |
| CLAMPING LEVER | ||||
| 0122 | 4931507102 | 24.20 | 29.28 | |
| RATING PLATE | ||||
| 0123 | 4931507103 | 1.20 | 1.45 | |
| PARALLEL GUIDE | ||||
| 0124 | 4931448018 | 14.40 | 17.42 | |
| ADJUSTABLE SEGMENT | ||||
| 0125 | 4931507104 | 37.40 | 45.25 | |
| TOOL BOX | ||||
| 0700 | 4931507105 | 105.60 | 127.78 | |
