Here you will find all available parts and drawings of the 'Milwaukee 4000474678 (M18FBS85-0C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

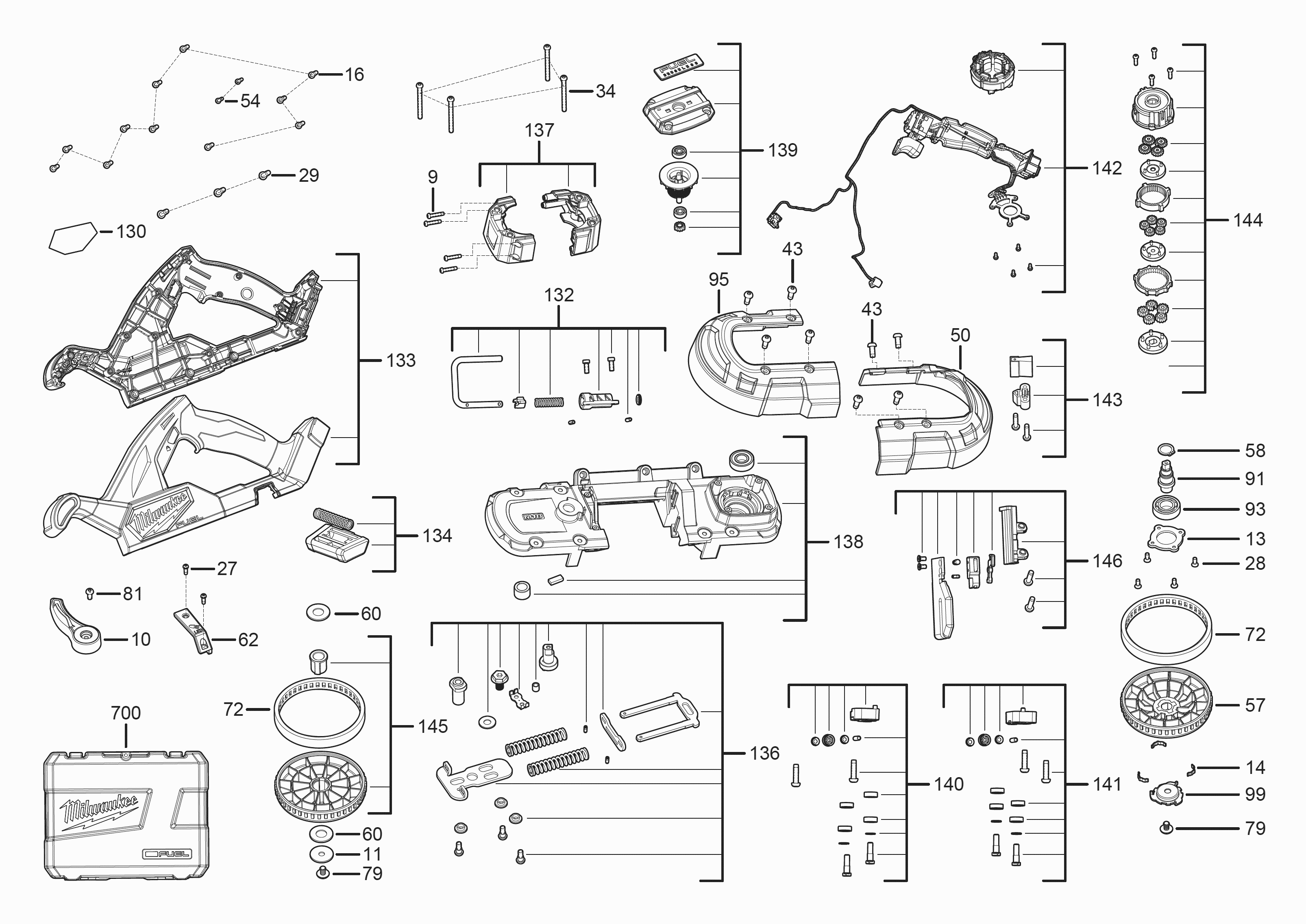

Technical drawing of model Milwaukee 4000474678 (M18FBS85-0C)
Spare parts list of model Milwaukee 4000474678 (M18FBS85-0C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (2 needed) | ||||
| 0009 | 660230017 | 3.00 | 3.63 | |
| TENSION LEVER | ||||
| 0010 | 4931472747 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0011 | 633266001 | |||
| PLATE | ||||
| 0013 | 4931472748 | 5.40 | 6.53 | |
| SPRING PLATE (3 needed) | ||||
| 0014 | 4931472749 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 0016 | 4931453119 | |||
| No longer available, no replacement | ||||
| 0027 | 661414002 | |||
| SCREW (4 needed) | ||||
| 0028 | 4931472750 | 1.80 | 2.18 | |
| SCREW (8 needed) | ||||
| 0029 | 4931465543 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0034 | 4931436424 | 3.00 | 3.63 | |
| SCREW TORX SCREW (8 needed) | ||||
| 0043 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (4 needed) | ||||
| 0043 | 6825314 | 1.00 | 1.21 | |
| GUARD | ||||
| 0050 | 4931494471 | 22.00 | 26.62 | |
| GUARD | ||||
| 0050 | 4931472752 | 14.40 | 17.42 | |
| SCREW (13 needed) | ||||
| 0054 | 4931465499 | 3.60 | 4.36 | |
| PULLEY | ||||
| 0057 | 4931472753 | 10.80 | 13.07 | |
| SNAP RING | ||||
| 0058 | 4931472754 | 1.80 | 2.18 | |
| WASHER (2 needed) | ||||
| 0060 | 560189001 | 2.28 | 2.76 | |
| HOLDING BRACKET | ||||
| 0062 | 4931472755 | 5.40 | 6.53 | |
| PLANET WHEEL (2 needed) | ||||
| 0072 | 4931472756 | 4.54 | 5.49 | |
| SCREW (2 needed) | ||||
| 0079 | 661299001 | 3.00 | 3.63 | |
| SCREW | ||||
| 0081 | 4931472757 | 1.80 | 2.18 | |
| SHAFT | ||||
| 0091 | 4931472758 | 23.76 | 28.75 | |
| BALL BEARING | ||||
| 0093 | 4931472759 | 7.20 | 8.71 | |
| GUARD | ||||
| 0095 | 4931472760 | 16.20 | 19.60 | |
| WASHER | ||||
| 0099 | 4931472761 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0130 | 4931472762 | 1.80 | 2.18 | |
| HOOK | ||||
| 0132 | 4931472763 | 20.59 | 24.91 | |
| HANDLE SHELLS | ||||
| 0133 | 4931472764 | 53.86 | 65.17 | |
| LOCK | ||||
| 0134 | 4931472765 | 9.00 | 10.89 | |
| TENSIONING DEVICE | ||||
| 0136 | 4931472766 | 58.61 | 70.92 | |
| HOUSING SET ASSY | ||||
| 0137 | 4931472767 | 14.40 | 17.42 | |
| BEARING END PLATE | ||||
| 0138 | 4931472768 | 133.06 | 161.00 | |
| MOTOR ASSEMBLY | ||||
| 0139 | 4931472769 | 45.94 | 55.59 | |
| STEERING PULLEY | ||||
| 0140 | 4931472770 | 30.10 | 36.42 | |
| STEERING PULLEY | ||||
| 0141 | 4931472771 | 30.10 | 36.42 | |
| ELECTRONIC | ||||
| 0142 | 4931472772 | 166.32 | 201.25 | |
| STEEL WIRE BRUSH | ||||
| 0143 | 4931472773 | 15.84 | 19.17 | |
| GEAR BOX | ||||
| 0144 | 4931472774 | 42.77 | 51.75 | |
| PULLEY | ||||
| 0145 | 4931472775 | 22.18 | 26.84 | |
| No longer available, no replacement | ||||
| 0146 | 4931472776 | |||
| GUIDE SHOE | ||||
| 0147 | 4931512312 | 102.30 | 123.78 | |
| CARRYING CASE | ||||
| 0700 | 4931472777 | 109.30 | 132.25 | |
