Here you will find all available parts and drawings of the 'Milwaukee 4000510047 ( M18F2SSBL-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

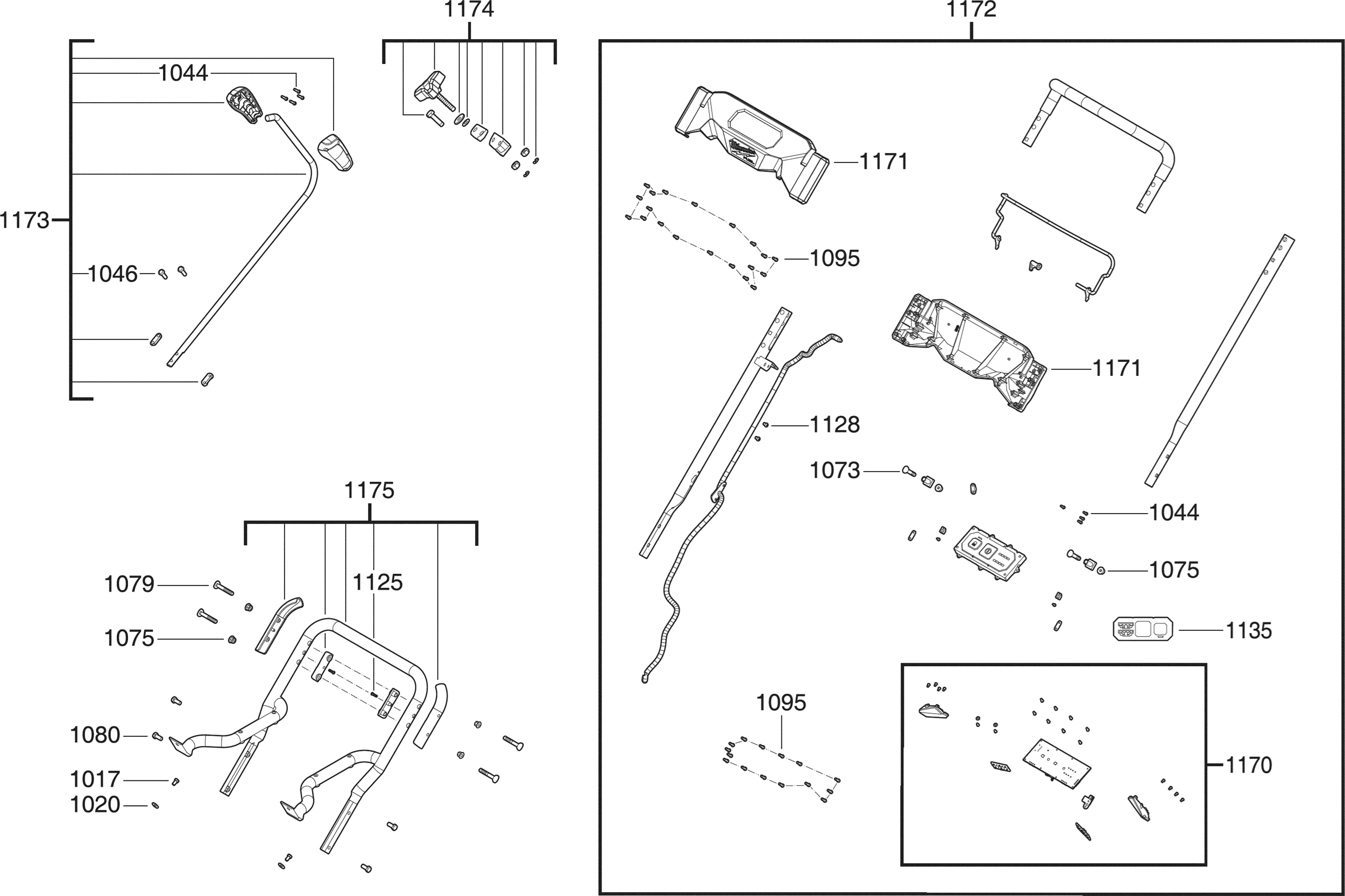

Technical drawing of model Milwaukee 4000510047 ( M18F2SSBL-0 )
Spare parts list of model Milwaukee 4000510047 ( M18F2SSBL-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (14 needed) | ||||
| 1017 | 4931508419 | 3.00 | 3.63 | |
| WASHER (25 needed) | ||||
| 1020 | 4931508420 | 3.00 | 3.63 | |
| SCREW (35 needed) | ||||
| 1044 | 660570005 | 3.60 | 4.36 | |
| BOLT (2 needed) | ||||
| 1046 | 4931508421 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 1073 | 4931508422 | 3.60 | 4.36 | |
| FLANGE NUT (6 needed) | ||||
| 1075 | 4931508423 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 1079 | 4931508424 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 1080 | 4931508425 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 1095 | 4931465326 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 1125 | 4931508426 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 1128 | 4931466677 | 1.80 | 2.18 | |
| LABEL | ||||
| 1135 | 4931508427 | 6.00 | 7.26 | |
| ELECTRONIC | ||||
| 1170 | 4931508428 | 95.70 | 115.80 | |
| HOUSING | ||||
| 1171 | 4931508429 | 63.80 | 77.20 | |
| HANDLE BAR | ||||
| 1172 | 4931508430 | 283.80 | 343.40 | |
| ROD | ||||
| 1173 | 4931508431 | 91.30 | 110.47 | |
| KNOB | ||||
| 1174 | 4931508432 | 66.00 | 79.86 | |
| HANDLE | ||||
| 1175 | 4931508433 | 105.60 | 127.78 | |
| SCREW (2 needed) | ||||
| 2004 | 661164001 | 3.60 | 4.36 | |
| SCREW (13 needed) | ||||
| 2010 | 4931508434 | 3.00 | 3.63 | |
| SCREW (5 needed) | ||||
| 2012 | 4931435015 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 2015 | 4931447515 | |||
| COVER | ||||
| 2016 | 4931508435 | 22.00 | 26.62 | |
| SCREW (10 needed) | ||||
| 2019 | 4931508436 | 3.60 | 4.36 | |
| BUSHING (14 needed) | ||||
| 2021 | 4931508437 | 3.00 | 3.63 | |
| NUT (16 needed) | ||||
| 2022 | 4931508438 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 2023 | 4931508439 | 3.60 | 4.36 | |
| PADDLE ASSEMBLY (2 needed) | ||||
| 2024 | 4931508440 | 75.90 | 91.84 | |
| PLATE (3 needed) | ||||
| 2037 | 4931508441 | 3.00 | 3.63 | |
| NUT (2 needed) | ||||
| 2038 | 4931508442 | 3.00 | 3.63 | |
| GROMMET | ||||
| 2039 | 4931508443 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 2040 | 4931496891 | 1.80 | 2.18 | |
| SIDE DISCHARGE CHUTE | ||||
| 2041 | 4931508444 | 30.80 | 37.27 | |
| SPRING (2 needed) | ||||
| 2048 | 4931508445 | 4.80 | 5.81 | |
| CROSS BRACKET (4 needed) | ||||
| 2049 | 4931508446 | 8.40 | 10.16 | |
| SCRAPER SET | ||||
| 2050 | 4931508447 | 36.30 | 43.92 | |
| MOTOR | ||||
| 2051 | 4931508448 | 216.15 | 261.54 | |
| SCREW (4 needed) | ||||
| 2052 | 4931494114 | 1.80 | 2.18 | |
| PULLEY | ||||
| 2053 | 4931508449 | 8.40 | 10.16 | |
| SPRING | ||||
| 2054 | 4931508450 | 3.60 | 4.36 | |
| BUSHING | ||||
| 2057 | 4931508451 | 4.80 | 5.81 | |
| SCREW (5 needed) | ||||
| 2058 | 4931508452 | 3.60 | 4.36 | |
| SCREW | ||||
| 2059 | 4931508453 | 3.00 | 3.63 | |
| BALL BEARING (2 needed) | ||||
| 2064 | 4931508454 | 7.20 | 8.71 | |
| COVER | ||||
| 2065 | 4931508455 | 7.20 | 8.71 | |
| PULLEY | ||||
| 2066 | 4931508456 | 25.30 | 30.61 | |
| SCREW | ||||
| 2067 | 4931508457 | 3.60 | 4.36 | |
| BELT | ||||
| 2068 | 4931508458 | 16.50 | 19.96 | |
| CLAMP | ||||
| 2104 | 4931508459 | 3.60 | 4.36 | |
| COVER | ||||
| 2110 | 4931508460 | 28.60 | 34.61 | |
| NUT (6 needed) | ||||
| 2111 | 4931508461 | 3.00 | 3.63 | |
| BODY | ||||
| 2114 | 4931508462 | 262.90 | 318.11 | |
| HOUSING | ||||
| 2116 | 4931508463 | 51.70 | 62.56 | |
| WASHER (4 needed) | ||||
| 2117 | 4931508464 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 2121 | 4931508465 | 3.00 | 3.63 | |
| WASHER (4 needed) | ||||
| 2130 | 4931508466 | 3.00 | 3.63 | |
| BUSHING (2 needed) | ||||
| 2131 | 4931508467 | 4.80 | 5.81 | |
| WRENCH | ||||
| 2132 | 4931508468 | 13.20 | 15.97 | |
| RATING PLATE | ||||
| 2137 | 4931510735 | 6.00 | 7.26 | |
| PLATE (2 needed) | ||||
| 2152 | 4931508469 | 4.80 | 5.81 | |
| BRACKET | ||||
| 2153 | 4931508470 | 24.20 | 29.28 | |
| SCREW (2 needed) | ||||
| 2154 | 4931508471 | 3.00 | 3.63 | |
| HOUSING | ||||
| 2180 | 4931508472 | 600.60 | 726.73 | |
| PADDLE ASSEMBLY | ||||
| 2181 | 4931508473 | 215.60 | 260.88 | |
| WHEEL (2 needed) | ||||
| 2182 | 4931508474 | 44.00 | 53.24 | |
| TENSIONING DEVICE | ||||
| 2183 | 4931508475 | 23.10 | 27.95 | |
| HINGE PIECE | ||||
| 3078 | 4931508476 | 6.00 | 7.26 | |
| BUSHING | ||||
| 3151 | 4931508477 | 3.60 | 4.36 | |
| SHAFT | ||||
| 3155 | 4931508478 | 41.80 | 50.58 | |
| PINION | ||||
| 3156 | 4931508479 | 30.80 | 37.27 | |
| BUSHING | ||||
| 3157 | 4931508480 | 3.60 | 4.36 | |
| FLANGE NUT | ||||
| 3158 | 4931508481 | 3.00 | 3.63 | |
| BEVEL GEAR | ||||
| 3159 | 4931508482 | 17.60 | 21.30 | |
| CONNECTION PLATE | ||||
| 3190 | 4931508483 | 132.00 | 159.72 | |
| FRAME | ||||
| 3191 | 4931508484 | 90.20 | 109.14 | |
| LABEL | ||||
| 3192 | 4931508485 | 40.70 | 49.25 | |
| MAGNET | ||||
| 3193 | 4931508486 | 26.40 | 31.94 | |
| COVER | ||||
| 3194 | 4931508487 | 37.40 | 45.25 | |
| SCREW (5 needed) | ||||
| 4032 | 4931508488 | 3.00 | 3.63 | |
| SCREW (22 needed) | ||||
| 4118 | 4931508489 | 3.00 | 3.63 | |
| SIDE DISCHARGE CHUTE | ||||
| 4200 | 4931508490 | 94.60 | 114.47 | |
