Here you will find all available parts and drawings of the 'Milwaukee 4000497717 ( M18F2BCU-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

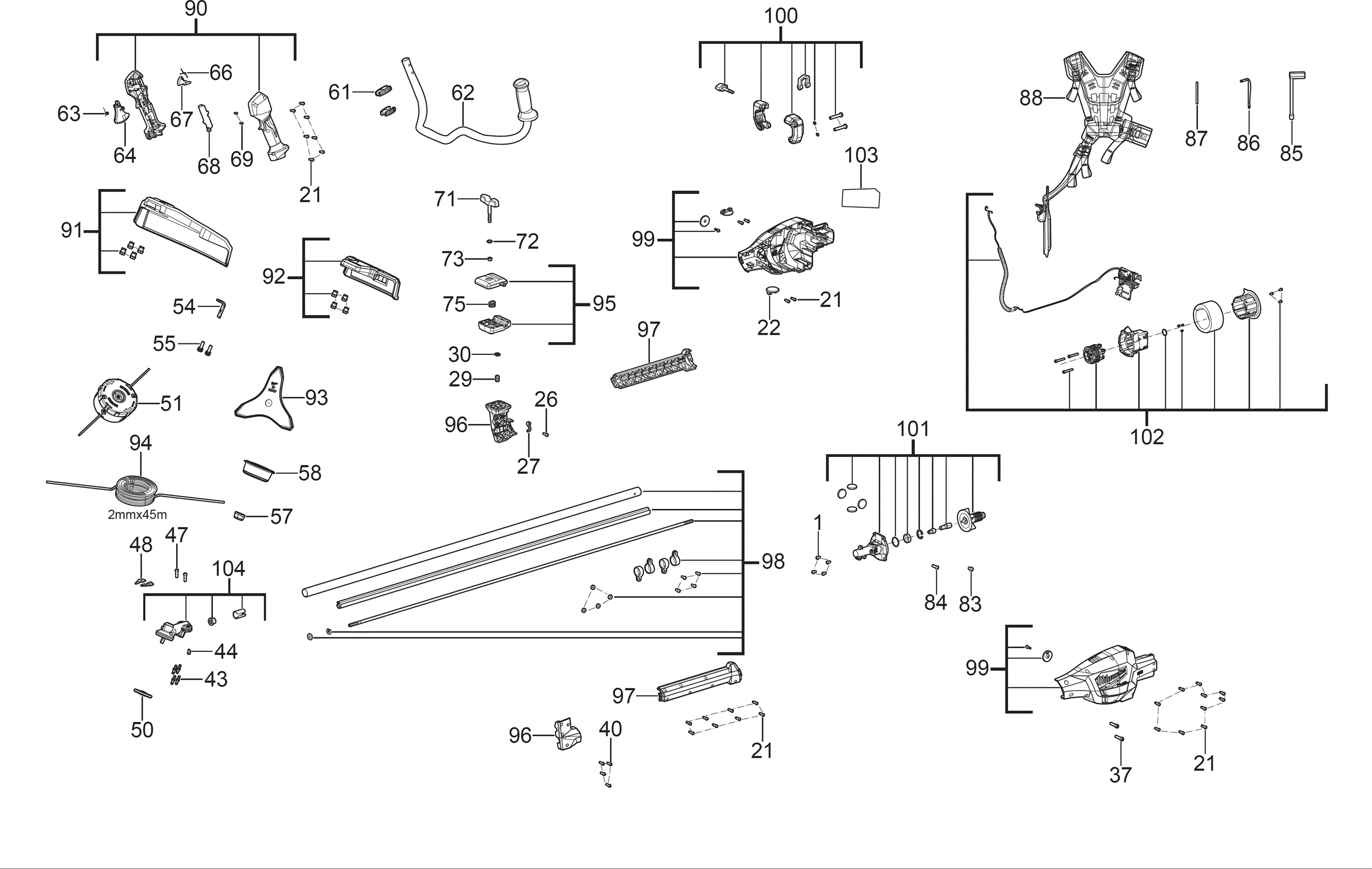

Technical drawing of model Milwaukee 4000497717 ( M18F2BCU-0 )
Spare parts list of model Milwaukee 4000497717 ( M18F2BCU-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (2 needed) | ||||
| 0001 | 4931435850 | 1.80 | 2.18 | |
| SCREW (29 needed) | ||||
| 0021 | 4931496932 | 1.80 | 2.18 | |
| HOLDER (2 needed) | ||||
| 0022 | 4931507037 | 1.20 | 1.45 | |
| SCREW | ||||
| 0026 | 4931465913 | 3.00 | 3.63 | |
| CLAMP | ||||
| 0027 | 4931507038 | 1.20 | 1.45 | |
| THREADED SLEEVE | ||||
| 0029 | 4931507039 | 6.00 | 7.26 | |
| RETAINING RING | ||||
| 0030 | 4931495590 | 1.20 | 1.45 | |
| SCREW (2 needed) | ||||
| 0037 | 4931461358 | 1.80 | 2.18 | |
| SCREW (10 needed) | ||||
| 0040 | 4931472710 | 1.80 | 2.18 | |
| STUD (4 needed) | ||||
| 0043 | 4931507040 | 6.00 | 7.26 | |
| SCREW | ||||
| 0044 | 4931496270 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0047 | 4931494116 | 3.00 | 3.63 | |
| GASKET (2 needed) | ||||
| 0048 | 4931507043 | 1.80 | 2.18 | |
| LOCKING PLATE | ||||
| 0050 | 4931507045 | 20.90 | 25.29 | |
| Easy Load Trimmer Head Gen II 1pc | ||||
| 0051 | 4932480180 | 54.33 | 65.74 | |
| BLADE | ||||
| 0054 | 4931507046 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0055 | 4931507047 | 1.20 | 1.45 | |
| FLANGE NUT | ||||
| 0057 | 4931494328 | 3.79 | 4.59 | |
| ASSEMBLING HOLDER | ||||
| 0058 | 4931494329 | 10.58 | 12.80 | |
| HOLDING CLIP (2 needed) | ||||
| 0061 | 4931507048 | 1.20 | 1.45 | |
| HANDLE BAR | ||||
| 0062 | 4931507049 | 36.30 | 43.92 | |
| SPRING | ||||
| 0063 | 4931507050 | 1.20 | 1.45 | |
| TRIGGER | ||||
| 0064 | 4931507051 | 3.60 | 4.36 | |
| SPRING | ||||
| 0066 | 4931494753 | 3.00 | 3.63 | |
| TRIGGER | ||||
| 0067 | 4931507052 | 3.00 | 3.63 | |
| COVER | ||||
| 0068 | 4931494979 | 3.00 | 3.63 | |
| SCREW (8 needed) | ||||
| 0069 | 4931454269 | 3.00 | 3.63 | |
| SCREW | ||||
| 0071 | 4931507053 | 3.60 | 4.36 | |
| WASHER | ||||
| 0072 | 4931507054 | 1.20 | 1.45 | |
| NUT | ||||
| 0073 | 4931506467 | 1.20 | 1.45 | |
| SPRING | ||||
| 0075 | 4931507055 | 1.20 | 1.45 | |
| SCREW | ||||
| 0083 | 4931473045 | 1.20 | 1.45 | |
| SCREW | ||||
| 0084 | 4931466683 | 1.80 | 2.18 | |
| HEX WRENCH | ||||
| 0085 | 4931507056 | 18.15 | 21.96 | |
| ALLEN KEY | ||||
| 0086 | 4931496238 | 4.20 | 5.08 | |
| HOLDING PIN | ||||
| 0087 | 4931454818 | 3.00 | 3.63 | |
| Double Shoulder Harness for Brush Cutter | ||||
| 0088 | 4932492849 | 71.27 | 86.24 | |
| HOUSING | ||||
| 0090 | 4931507057 | 26.40 | 31.94 | |
| CUTTING GUARD | ||||
| 0091 | 4931507058 | 60.50 | 73.20 | |
| CUTTING GUARD | ||||
| 0092 | 4931507059 | 53.90 | 65.22 | |
| Brush cutter replacement blade- 3-tooth | ||||
| 0093 | 4932498762 | 38.39 | 46.45 | |
| Trimmer Line 2mm x 45m - 1PC | ||||
| 0094 | 49162712 | 36.30 | 43.92 | |
| CLAMPING SET | ||||
| 0095 | 4931507060 | 39.60 | 47.92 | |
| CHAIN CLAMP BODY | ||||
| 0096 | 4931507061 | 47.30 | 57.23 | |
| CHAIN CLAMP BODY | ||||
| 0097 | 4931507062 | 25.30 | 30.61 | |
| TUBE | ||||
| 0098 | 4931507063 | 68.75 | 83.19 | |
| HOUSING | ||||
| 0099 | 4931507064 | 50.60 | 61.23 | |
| CHAIN CLAMP BODY | ||||
| 0100 | 4931507065 | 84.70 | 102.49 | |
| ROTOR | ||||
| 0101 | 4931507066 | 85.80 | 103.82 | |
| ELECTRONIC | ||||
| 0102 | 4931507067 | 396.00 | 479.16 | |
| RATING PLATE | ||||
| 0103 | 4931507068 | 77.00 | 93.17 | |
| GEAR BOX ASSY | ||||
| 0104 | 4931507044 | 76.45 | 92.50 | |
