Here you will find all available parts and drawings of the 'Milwaukee 4000448972 ( M18CSX-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

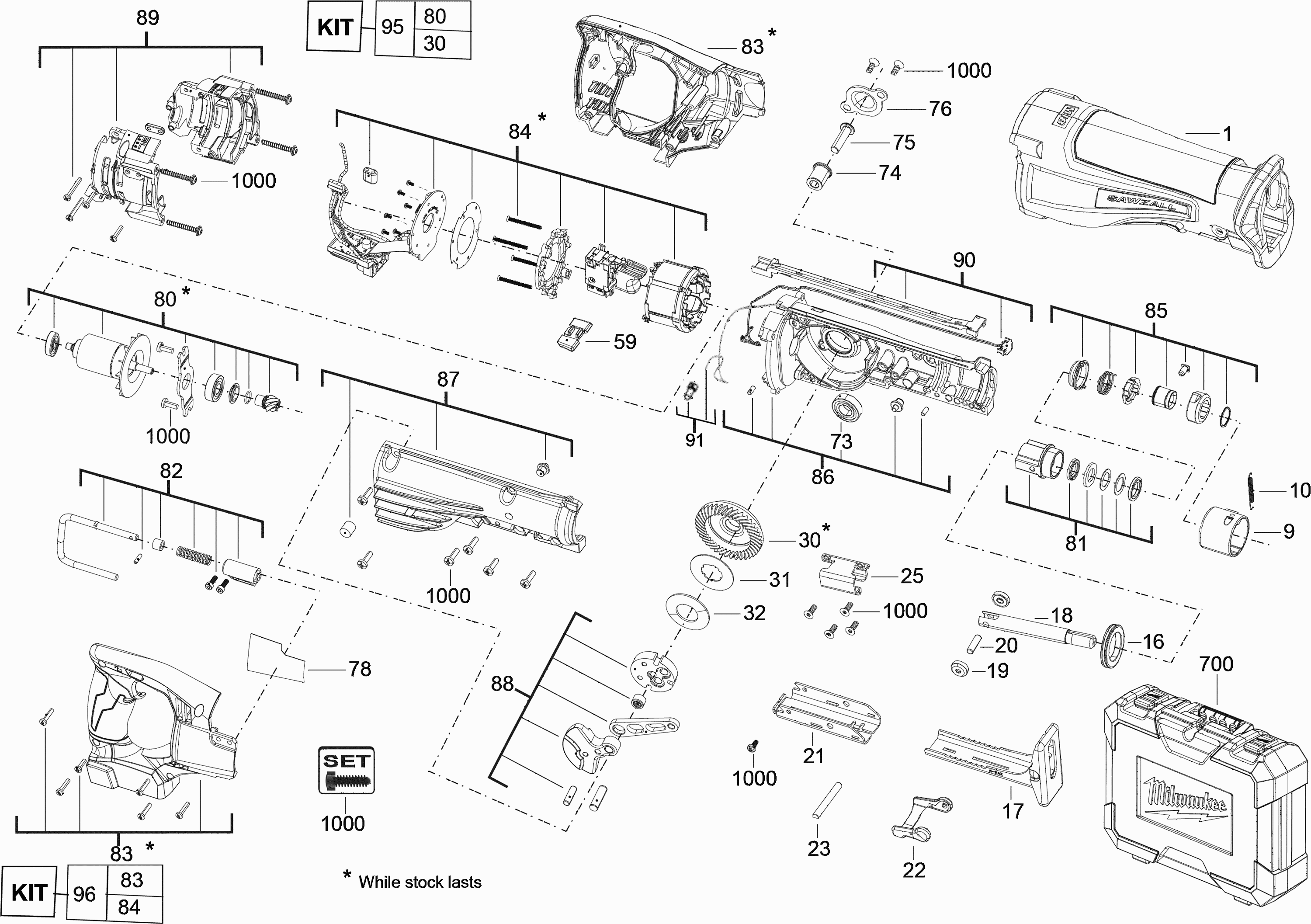

Technical drawing of model Milwaukee 4000448972 ( M18CSX-0 )
Spare parts list of model Milwaukee 4000448972 ( M18CSX-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| M18 B5 85076000 | ||||
| 0001 | 4932430483 | 111.00 | 134.31 | |
| RUBBER FOOT | ||||
| 0001 | 4931436052 | 20.59 | 24.91 | |
| CAM | ||||
| 0009 | 4931436051 | 5.40 | 6.53 | |
| SPRING | ||||
| 0010 | 4931436050 | 1.80 | 2.18 | |
| SEAL | ||||
| 0016 | 4931436021 | 1.80 | 2.18 | |
| DISTANCE HOLDER | ||||
| 0017 | 4931436022 | 10.80 | 13.07 | |
| SPINDLE | ||||
| 0018 | 4931436023 | 23.76 | 28.75 | |
| ROLL (2 needed) | ||||
| 0019 | 4931436024 | 1.80 | 2.18 | |
| BALANCE WEIGHT | ||||
| 0020 | 4931436025 | 1.90 | 2.30 | |
| HOLDER | ||||
| 0021 | 4931436026 | 5.40 | 6.53 | |
| LOCK BOTTON | ||||
| 0022 | 4931436027 | 1.90 | 2.30 | |
| PIN | ||||
| 0023 | 44601635 | 5.40 | 6.53 | |
| STAMP | ||||
| 0025 | 4931436028 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0030 | 4931436029 | |||
| PLATE | ||||
| 0031 | 4931436030 | 5.40 | 6.53 | |
| SPRING | ||||
| 0032 | 4931436031 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0059 | 4931436053 | |||
| BALL BEARING | ||||
| 0073 | 4931436033 | 9.00 | 10.89 | |
| DISTANCE HOLDER | ||||
| 0074 | 4931436034 | 1.90 | 2.30 | |
| SCREW | ||||
| 0075 | 4931436035 | 1.80 | 2.18 | |
| PLATE | ||||
| 0076 | 4931436036 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0078 | 4931436037 | 1.90 | 2.30 | |
| BUSH | ||||
| 0081 | 4931453359 | 17.42 | 21.08 | |
| HOOK | ||||
| 0082 | 4931436040 | 19.01 | 23.00 | |
| ACCEPTANCE | ||||
| 0085 | 4931436647 | 30.10 | 36.42 | |
| GEAR BOX INSUL.LEFT | ||||
| 0086 | 4931436044 | 63.36 | 76.67 | |
| GEAR BOX INSU.RIGHT | ||||
| 0087 | 4931436045 | 36.43 | 44.08 | |
| CRANK ASSEMBLY | ||||
| 0088 | 4931436046 | 27.72 | 33.54 | |
| HOUSING SET ASSY | ||||
| 0089 | 4931436047 | 19.01 | 23.00 | |
| LAMP | ||||
| 0090 | 4931436048 | 14.40 | 17.42 | |
| CABLE SET | ||||
| 0091 | 4931453362 | 7.20 | 8.71 | |
| MOTOR ASSEMBLY | ||||
| 0095 | 4931456542 | 118.80 | 143.75 | |
| BODY HOUSING +SWITCH | ||||
| 0096 | 4931456541 | 201.17 | 243.42 | |
| BOLT SET | ||||
| 1000 | 4931436032 | 10.80 | 13.07 | |
