Here you will find all available parts and drawings of the 'Milwaukee 4000448711 ( M18CIW12-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

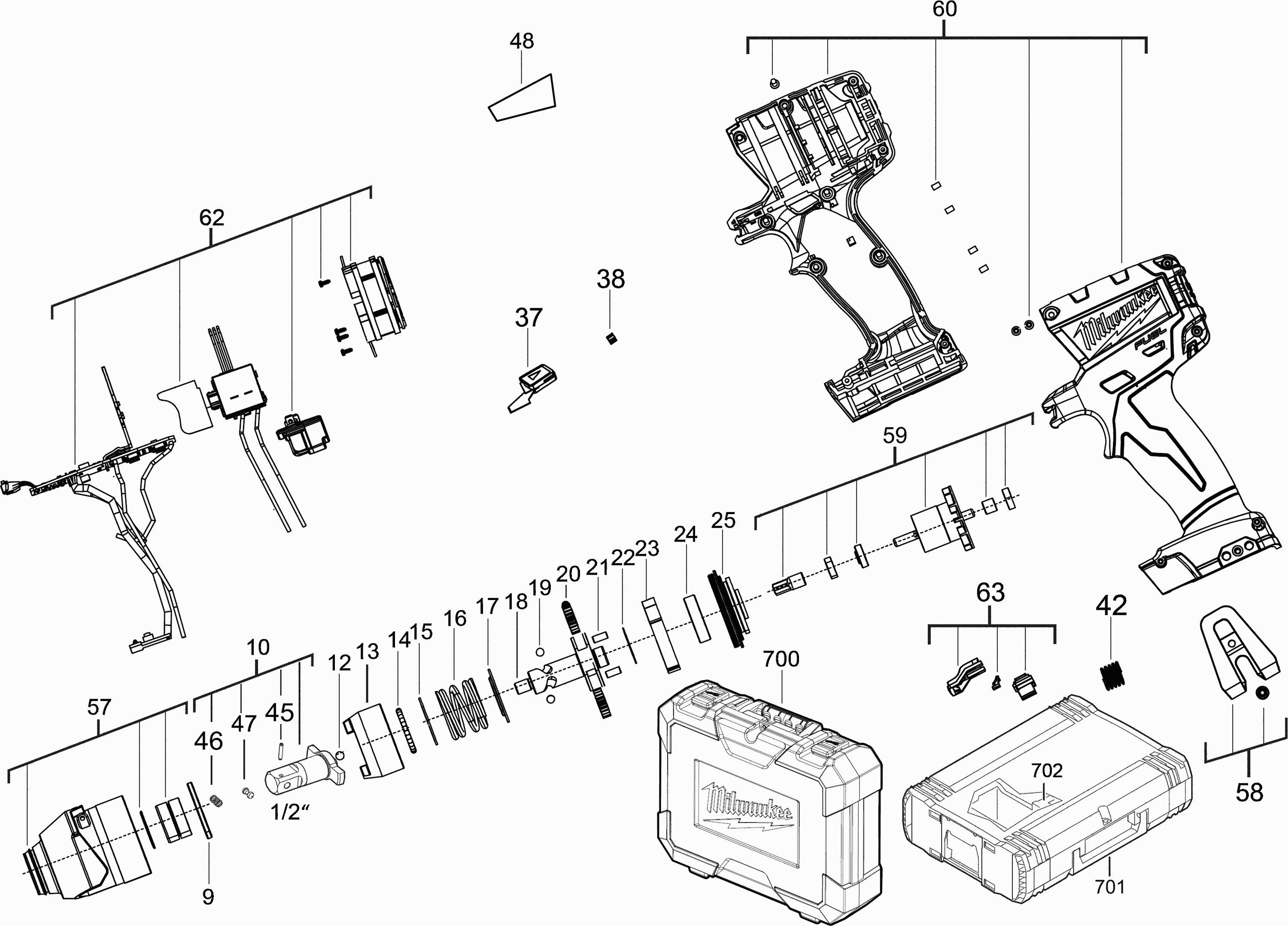

Technical drawing of model Milwaukee 4000448711 ( M18CIW12-0 )
Spare parts list of model Milwaukee 4000448711 ( M18CIW12-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| WASHER | ||||
| 0009 | 4931435372 | 1.80 | 2.18 | |
| ANVIL | ||||
| 0010 | 4931447073 | 34.85 | 42.17 | |
| BALL | ||||
| 0012 | 670219001 | 1.80 | 2.18 | |
| HAMMER | ||||
| 0013 | 4931448715 | 33.26 | 40.24 | |
| BALL | ||||
| 0014 | 4931440309 | 1.80 | 2.18 | |
| DISC | ||||
| 0015 | 4931440454 | 5.40 | 6.53 | |
| SPRING | ||||
| 0016 | 4931435742 | 5.40 | 6.53 | |
| WASHER | ||||
| 0017 | 4931435376 | 1.80 | 2.18 | |
| CRANK ASSEMBLY | ||||
| 0018 | 4931448716 | 23.76 | 28.75 | |
| BALL | ||||
| 0019 | 4931440453 | 1.80 | 2.18 | |
| GEAR (2 needed) | ||||
| 0020 | 4931454799 | 1.80 | 2.18 | |
| CYLINDER PIN (2 needed) | ||||
| 0021 | 4931435378 | 5.40 | 6.53 | |
| WASHER | ||||
| 0022 | 4931435379 | 1.80 | 2.18 | |
| PLANET WHEEL | ||||
| 0023 | 4931435745 | 5.40 | 6.53 | |
| GROOVED BALL BEAR. | ||||
| 0024 | 4931435380 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0025 | 4931435382 | |||
| PUSH BUTTON | ||||
| 0037 | 4931435383 | 5.40 | 6.53 | |
| SPRING PLATE | ||||
| 0038 | 4931452341 | 1.90 | 2.30 | |
| PRESSURE SPRING | ||||
| 0042 | 4931408243 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0045 | 4931436207 | 5.40 | 6.53 | |
| SPRING | ||||
| 0046 | 4931436071 | 1.80 | 2.18 | |
| PIN | ||||
| 0047 | 4931436072 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0048 | 4931448717 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0057 | 4931435749 | |||
| CLAMP | ||||
| 0058 | 4931435388 | 10.80 | 13.07 | |
| ROTOR | ||||
| 0059 | 4931447077 | 44.35 | 53.66 | |
| HANDLE COMPL. | ||||
| 0060 | 4931447067 | 31.68 | 38.33 | |
| ELECTRONIC | ||||
| 0062 | 4931435751 | 110.88 | 134.16 | |
| COVER | ||||
| 0063 | 4931435392 | 4.49 | 5.43 | |
| CARRYING CASE | ||||
| 0700 | 4931435393 | 36.43 | 44.08 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0701 | 4932378986 | 47.85 | 57.90 | |
| INSERT | ||||
| 0702 | 4931440936 | 12.60 | 15.25 | |
