Here you will find all available parts and drawings of the 'Milwaukee 4000447256 ( M18CCS66-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

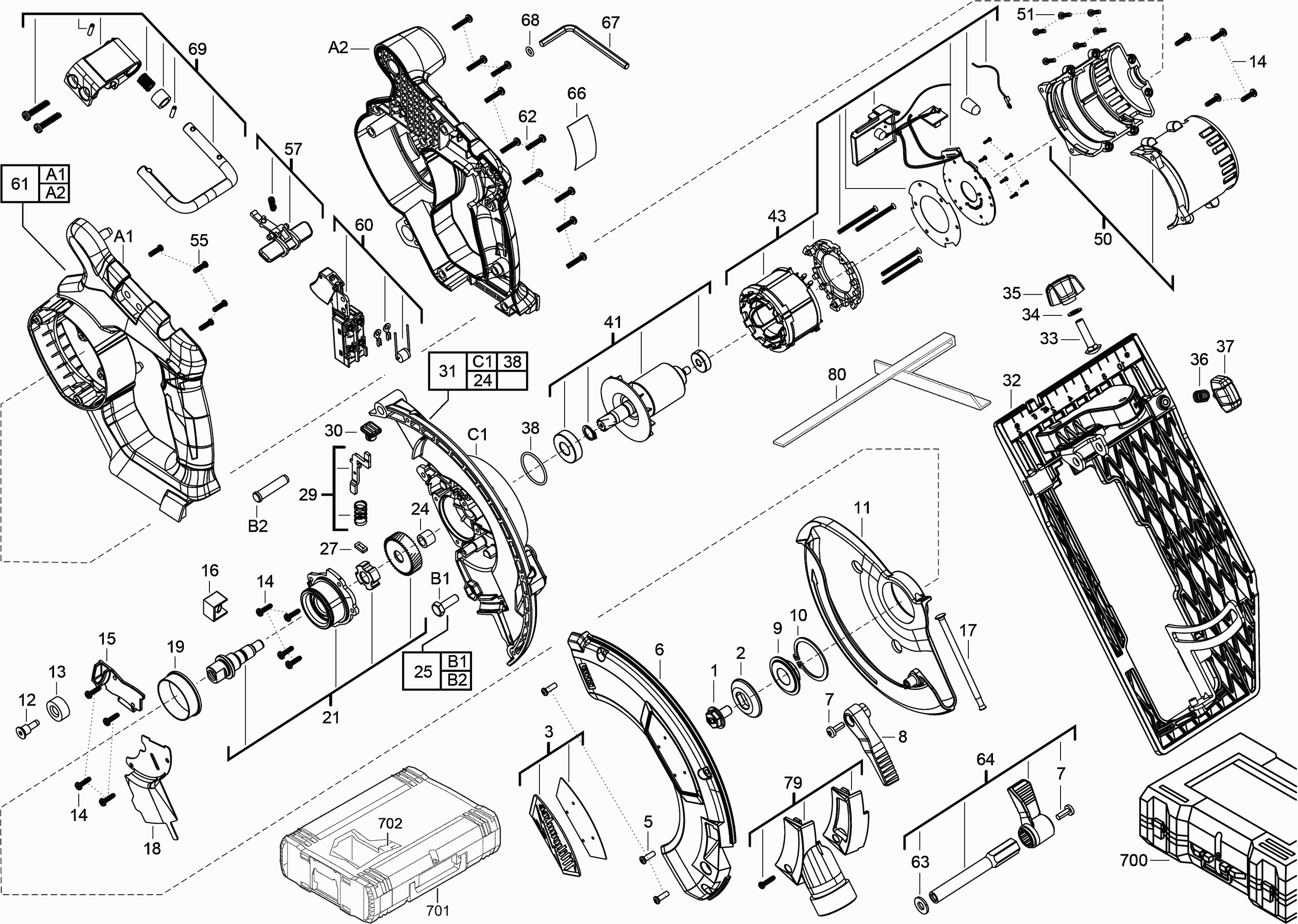

Technical drawing of model Milwaukee 4000447256 ( M18CCS66-0 )
Spare parts list of model Milwaukee 4000447256 ( M18CCS66-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 0001 | 4931436453 | 1.80 | 2.18 | |
| FLANGE | ||||
| 0002 | 43340485 | 1.80 | 2.18 | |
| NAME PLATE | ||||
| 0003 | 4931436100 | 3.78 | 4.57 | |
| SCREW (4 needed) | ||||
| 0005 | 4931435150 | 1.90 | 2.30 | |
| HOUSING | ||||
| 0006 | 4931436454 | 36.43 | 44.08 | |
| SCREW TORX SCREW (2 needed) | ||||
| 0007 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (13 required) | ||||
| 0007 | 6825314 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0008 | 4931436455 | |||
| FLANGE | ||||
| 0009 | 4931448349 | 7.20 | 8.71 | |
| THRUST COLLAR | ||||
| 0010 | 34600860 | 1.90 | 2.30 | |
| SAW PROTECTION | ||||
| 0011 | 4931436456 | 41.18 | 49.83 | |
| SCREW | ||||
| 0012 | 45040485 | 1.80 | 2.18 | |
| RUBBER BUMPER | ||||
| 0013 | 4931465876 | 1.90 | 2.30 | |
| SCREW (12 needed) | ||||
| 0014 | 06825285 | 3.60 | 4.36 | |
| SCREW (12 needed) | ||||
| 0014 | 6825285 | 1.00 | 1.21 | |
| COVER | ||||
| 0015 | 4931436457 | 4.49 | 5.43 | |
| INDICATOR SET | ||||
| 0016 | 4931436458 | 7.20 | 8.71 | |
| SPRING | ||||
| 0017 | 40500045 | 1.80 | 2.18 | |
| PLATE | ||||
| 0018 | 4931436459 | 4.49 | 5.43 | |
| RING | ||||
| 0019 | 4931436460 | 5.40 | 6.53 | |
| SHAFT | ||||
| 0021 | 4931436461 | 44.35 | 53.66 | |
| NEEDLE BEARING | ||||
| 0024 | 4931435696 | 3.78 | 4.57 | |
| BOLT SET | ||||
| 0025 | 4931436462 | 4.49 | 5.43 | |
| FELT PACKING | ||||
| 0027 | 45060720 | 5.40 | 6.53 | |
| SPINDLE LOCK | ||||
| 0029 | 4931436463 | 3.78 | 4.57 | |
| PUSH-BUTTON | ||||
| 0030 | 42421030 | 5.68 | 6.87 | |
| GEAR BOX ASSY | ||||
| 0031 | 4931436464 | 72.86 | 88.16 | |
| DISTANCE HOLDER | ||||
| 0032 | 4931436465 | 107.71 | 130.33 | |
| SCREW | ||||
| 0033 | 4931436115 | 1.80 | 2.18 | |
| WASHER | ||||
| 0034 | 45881560 | 1.80 | 2.18 | |
| TRIGGER (2 needed) | ||||
| 0035 | 4931436114 | 5.40 | 6.53 | |
| SPRING | ||||
| 0036 | 40500650 | 1.80 | 2.18 | |
| TRIGGER | ||||
| 0037 | 4931436113 | 1.80 | 2.18 | |
| O-RING | ||||
| 0038 | 4931436466 | 1.80 | 2.18 | |
| ARMATURE | ||||
| 0041 | 4931436467 | 91.87 | 111.16 | |
| ELECTRONIC ELEMENT | ||||
| 0043 | 4931469374 | 134.64 | 162.91 | |
| MOTOR HOUSING | ||||
| 0050 | 4931436121 | 17.11 | 20.70 | |
| SCREW (11 needed) | ||||
| 0051 | 660570005 | 1.90 | 2.30 | |
| SCREW (4 needed) | ||||
| 0055 | 4931436469 | 1.80 | 2.18 | |
| PUSH-BUTTON | ||||
| 0057 | 4931436123 | 3.78 | 4.57 | |
| SWITCH | ||||
| 0060 | 4931436122 | 36.43 | 44.08 | |
| HOUSING | ||||
| 0061 | 4931436470 | 39.60 | 47.92 | |
| SCREW (10 needed) | ||||
| 0062 | 06827470 | 6.22 | 7.53 | |
| SCREW (10 needed) | ||||
| 0062 | 6827470 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0063 | 45881545 | |||
| DEPTH GAUGE | ||||
| 0064 | 4931436471 | 8.20 | 9.92 | |
| No longer available, no replacement | ||||
| 0066 | 4931436472 | |||
| KEY | ||||
| 0067 | 4931436125 | 1.80 | 2.18 | |
| O-RING | ||||
| 0068 | 34404480 | 1.90 | 2.30 | |
| HOOK | ||||
| 0069 | 4931436473 | 15.29 | 18.50 | |
| DUST EXTRACTION AS. | ||||
| 0079 | 4931436474 | 10.80 | 13.07 | |
| PARALLEL GUIDE | ||||
| 0080 | 4931448018 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0700 | 4931436475 | |||
| NO DESCRIPTION | ||||
| 0701 | 4932453386 | 60.72 | 73.47 | |
| NO DESCRIPTION | ||||
| 0702 | 4932453859 | 19.72 | 23.86 | |
