Here you will find all available parts and drawings of the 'Milwaukee 4000447151 ( M18CBS125-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

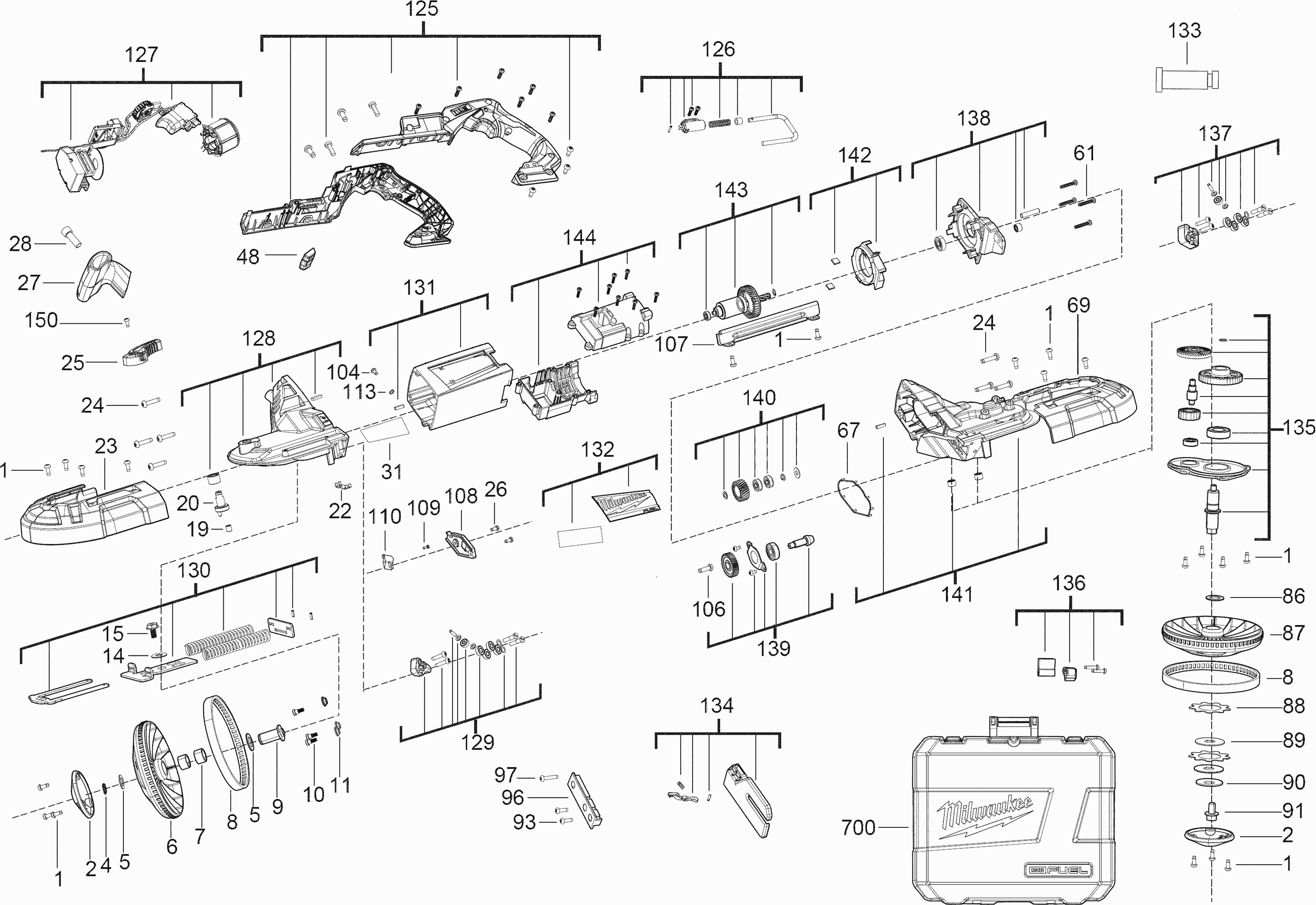

Technical drawing of model Milwaukee 4000447151 ( M18CBS125-0 )
Spare parts list of model Milwaukee 4000447151 ( M18CBS125-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| M18 B4 (18 V / 4,0 Ah Red Li-Ion) 85076000 | ||||
| 0001 | 4932430063 | 103.00 | 124.63 | |
| SCREW TORX SCREW (2 needed) | ||||
| 0001 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (13 required) | ||||
| 0001 | 6825314 | 1.00 | 1.21 | |
| PULLEY (2 needed) | ||||
| 0002 | 4931436230 | 1.90 | 2.30 | |
| PROTECTION WASHER | ||||
| 0004 | 4931436231 | 1.90 | 2.30 | |
| SPACER (2 needed) | ||||
| 0005 | 4931436232 | 1.90 | 2.30 | |
| PULLEY | ||||
| 0006 | 4931436233 | 23.76 | 28.75 | |
| BUSH (2 needed) | ||||
| 0007 | 4931436234 | 1.80 | 2.18 | |
| BELT (2 needed) | ||||
| 0008 | 4931436235 | 4.49 | 5.43 | |
| BOLT | ||||
| 0009 | 4931436236 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0010 | 4931436237 | |||
| BUSH (3 needed) | ||||
| 0011 | 4931436238 | 1.80 | 2.18 | |
| WASHER (4 needed) | ||||
| 0014 | 4931436239 | 1.90 | 2.30 | |
| SCREW | ||||
| 0015 | 660988001 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0019 | 4931436240 | |||
| SHAFT | ||||
| 0020 | 4931436241 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 0022 | 4931436242 | |||
| No longer available, no replacement | ||||
| 0023 | 4931436243 | |||
| SCREW (7 needed) | ||||
| 0024 | 4931436244 | 1.20 | 1.45 | |
| LEVER | ||||
| 0025 | 4931436245 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 0026 | 660023001 | 1.80 | 2.18 | |
| HANDLE | ||||
| 0027 | 4931436246 | 6.31 | 7.64 | |
| SCREW | ||||
| 0028 | 4931436247 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 0031 | 4931436248 | |||
| PUSH-BUTTON | ||||
| 0048 | 4931436249 | 1.90 | 2.30 | |
| SCREW (4 needed) | ||||
| 0061 | 4931436250 | 1.20 | 1.45 | |
| SEAL | ||||
| 0067 | 4931436251 | 1.80 | 2.18 | |
| SAW PROTECTION | ||||
| 0069 | 4931436252 | 15.29 | 18.50 | |
| STAMP | ||||
| 0086 | 4931436253 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0087 | 4931436254 | |||
| COUPLING (2 needed) | ||||
| 0088 | 4931436255 | 1.90 | 2.30 | |
| COUPLING (2 needed) | ||||
| 0089 | 4931436256 | 1.90 | 2.30 | |
| SPRING WASHER | ||||
| 0090 | 4931436718 | 5.40 | 6.53 | |
| SCREW | ||||
| 0091 | 4931436258 | 1.20 | 1.45 | |
| SCREW (2 needed) | ||||
| 0093 | 4931436259 | 1.20 | 1.45 | |
| COVER PLATE | ||||
| 0096 | 4931436260 | 17.42 | 21.08 | |
| SCREW | ||||
| 0097 | 4931436261 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0104 | 4931435162 | |||
| No information available, not orderable | ||||
| 0106 | 4931436262 | |||
| No longer available, no replacement | ||||
| 0107 | 4931436263 | |||
| No information available, not orderable | ||||
| 0108 | 4931436264 | |||
| No longer available, no replacement | ||||
| 0109 | 4931436265 | |||
| Display | ||||
| 0110 | 4931436266 | 7.20 | 8.71 | |
| PROTECTION WASHER (4 needed) | ||||
| 0113 | 680866003 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0125 | 4931436267 | |||
| HOOK | ||||
| 0126 | 4931436268 | 25.34 | 30.66 | |
| ELECTRIC ELEMENT | ||||
| 0127 | 4931436269 | 163.15 | 197.41 | |
| No longer available, no replacement | ||||
| 0128 | 4931436270 | |||
| SUPPORT ROLL HOLDER | ||||
| 0129 | 4931436271 | 26.93 | 32.59 | |
| TENSION SPRING | ||||
| 0130 | 4931436272 | 34.85 | 42.17 | |
| MOTOR HOUSING | ||||
| 0131 | 4931436273 | 44.35 | 53.66 | |
| NAME PLATE | ||||
| 0132 | 4931436274 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0133 | 49085271 | |||
| No longer available, no replacement | ||||
| 0134 | 4931436275 | |||
| GEAR BOX | ||||
| 0135 | 4931436276 | 60.19 | 72.83 | |
| No longer available, no replacement | ||||
| 0136 | 4931436277 | |||
| GUIDE ROLLER | ||||
| 0137 | 4931436278 | 26.93 | 32.59 | |
| PACKING SET | ||||
| 0138 | 4931436279 | 38.02 | 46.00 | |
| BEVEL GEAR PAIR | ||||
| 0139 | 4931436280 | 33.26 | 40.24 | |
| No longer available, no replacement | ||||
| 0140 | 4931436281 | |||
| GEAR BOX COVER | ||||
| 0141 | 4931436282 | 50.69 | 61.33 | |
| No information available, not orderable | ||||
| 0142 | 4931436283 | |||
| ARMATURE | ||||
| 0143 | 4931436284 | 52.27 | 63.25 | |
| MOTOR HOUSING | ||||
| 0144 | 4931436285 | 17.11 | 20.70 | |
| No information available, not orderable | ||||
| 0150 | 4931452223 | |||
| CARRYING CASE | ||||
| 0700 | 4931436229 | 83.95 | 101.58 | |
