Here you will find all available parts and drawings of the 'Milwaukee 4000452129 ( M18CAG115XPDB-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

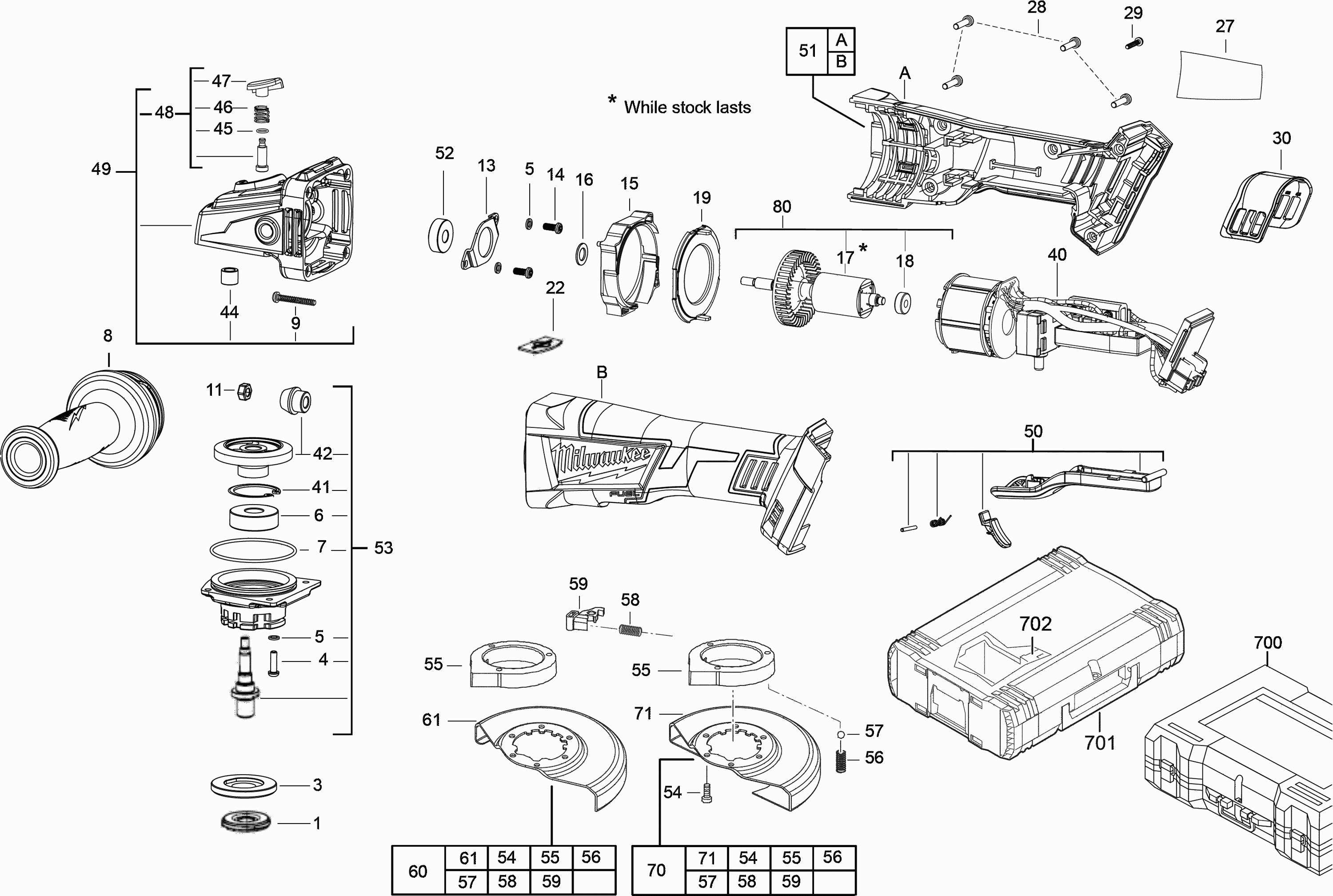

Technical drawing of model Milwaukee 4000452129 ( M18CAG115XPDB-0 )
Spare parts list of model Milwaukee 4000452129 ( M18CAG115XPDB-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FIXTEC-spanmoer | ||||
| 0001 | 4932352473 | 30.95 | 37.45 | |
| FLANGE | ||||
| 0003 | 4931435020 | 9.91 | 11.99 | |
| SCREW (6 needed) | ||||
| 0004 | 660414013 | 1.90 | 2.30 | |
| PROTECTION WASHER (4 needed) | ||||
| 0005 | 680866003 | 1.90 | 2.30 | |
| BALL BEARING | ||||
| 0006 | 4931446467 | 4.42 | 5.35 | |
| O-RING | ||||
| 0007 | 570699002 | 1.80 | 2.18 | |
| AUXILIARY HANDLE | ||||
| 0008 | 4931435002 | 17.42 | 21.08 | |
| SCREW | ||||
| 0009 | 4931435023 | 1.90 | 2.30 | |
| NUT | ||||
| 0011 | 671686001 | 4.49 | 5.43 | |
| BEARING CAGE | ||||
| 0013 | 672569001 | 1.90 | 2.30 | |
| SCREW | ||||
| 0014 | 660400005 | 1.80 | 2.18 | |
| PLATE | ||||
| 0015 | 4931436010 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0016 | 632876001 | |||
| No information available, not orderable | ||||
| 0017 | 4931436012 | |||
| BALL BEARING | ||||
| 0018 | 4931436014 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0019 | 4931436011 | 1.90 | 2.30 | |
| COVER PLATE | ||||
| 0022 | 4931453199 | 5.40 | 6.53 | |
| LABEL | ||||
| 0027 | 4931452774 | 1.80 | 2.18 | |
| SCREW (14 needed) | ||||
| 0028 | 660024030 | 1.90 | 2.30 | |
| SCREW (3 needed) | ||||
| 0029 | 4931453227 | 1.90 | 2.30 | |
| DUST GUARD CAP | ||||
| 0030 | 4931436016 | 5.68 | 6.87 | |
| No longer available, no replacement | ||||
| 0040 | 4931452761 | |||
| HOLDING RING | ||||
| 0041 | 4931435476 | 1.90 | 2.30 | |
| BEVEL GEAR PAIR | ||||
| 0042 | 4931436007 | 31.68 | 38.33 | |
| NEEDLE BEARING | ||||
| 0044 | 4931446185 | 4.49 | 5.43 | |
| O-RING | ||||
| 0045 | 4931435006 | 1.80 | 2.18 | |
| SPRING | ||||
| 0046 | 4931435005 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0047 | 4931452762 | 5.40 | 6.53 | |
| SPINDLE LOCK | ||||
| 0048 | 4931452763 | 9.00 | 10.89 | |
| GEAR CASE | ||||
| 0049 | 4931452764 | 44.35 | 53.66 | |
| PUSH-BUTTON | ||||
| 0050 | 4931452765 | 11.69 | 14.14 | |
| HOUSING | ||||
| 0051 | 4931452766 | 34.85 | 42.17 | |
| BALL BEARING | ||||
| 0052 | 681337001 | 9.00 | 10.89 | |
| SPINDLE | ||||
| 0053 | 4931452767 | 69.70 | 84.34 | |
| SCREW (5 needed) | ||||
| 0054 | 4931435015 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0055 | 4931433694 | |||
| SPRING (2 needed) | ||||
| 0056 | 4931435012 | 4.49 | 5.43 | |
| BALL | ||||
| 0057 | 670219001 | 1.80 | 2.18 | |
| SPRING | ||||
| 0058 | 4931435010 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0059 | 4931452768 | |||
| GUARD CAP | ||||
| 0060 | 4931452110 | 14.40 | 17.42 | |
| GUARD CAP | ||||
| 0061 | 4931452769 | 9.91 | 11.99 | |
| GUARD CAP | ||||
| 0070 | 4931452113 | 30.10 | 36.42 | |
| GUARD CAP | ||||
| 0071 | 4931452771 | 20.59 | 24.91 | |
| ARMATURE | ||||
| 0080 | 4931466720 | 71.28 | 86.25 | |
| CARRYING CASE SIZE2 MET | ||||
| 0700 | 4932383162 | 67.96 | 82.23 | |
| NO DESCRIPTION | ||||
| 0701 | 4932453386 | 60.72 | 73.47 | |
| NO DESCRIPTION | ||||
| 0702 | 4932453860 | 19.72 | 23.86 | |
