Here you will find all available parts and drawings of the 'Milwaukee 4000447591 ( M18CAG115XPD-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

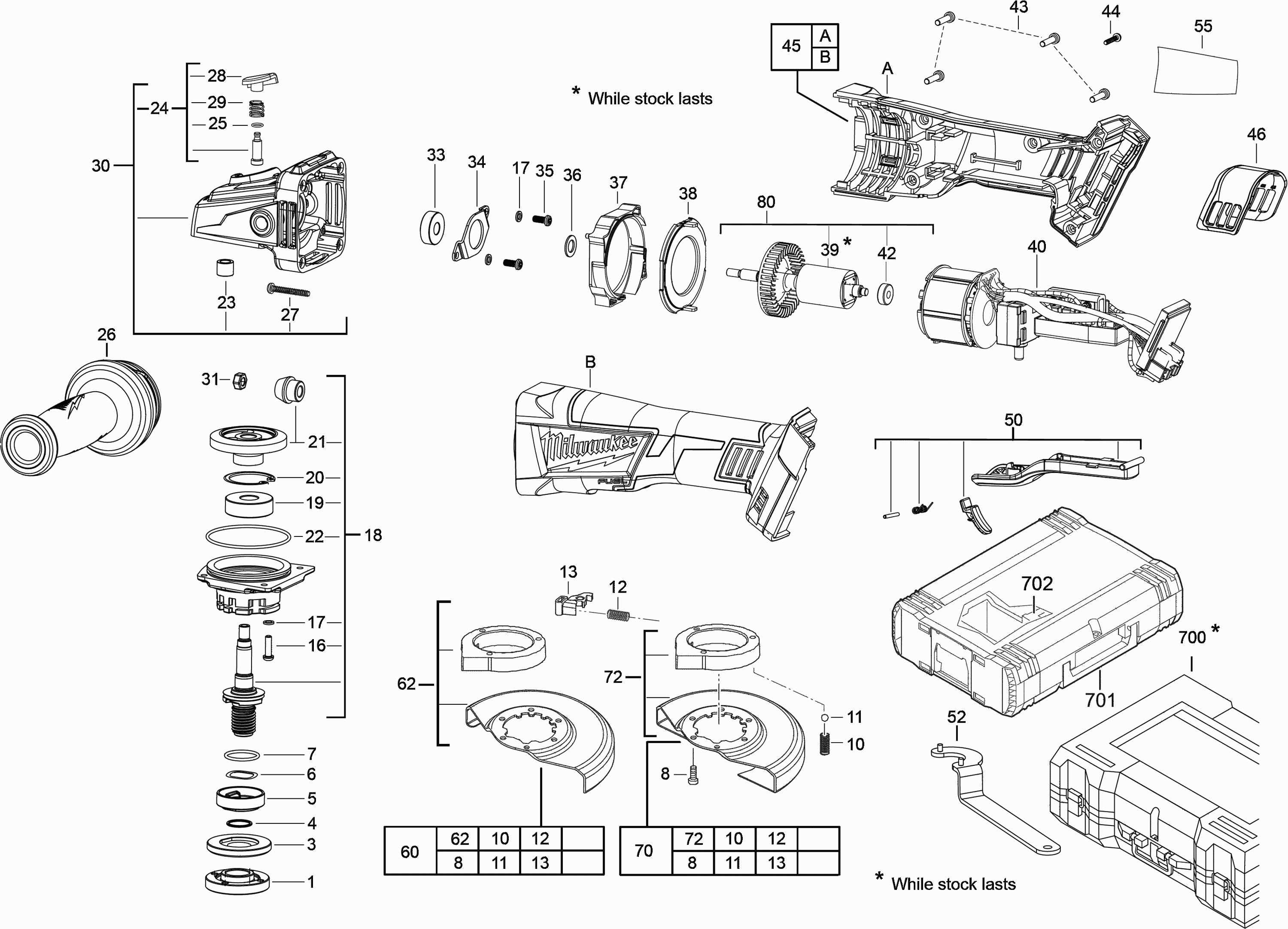

Technical drawing of model Milwaukee 4000447591 ( M18CAG115XPD-0 )
Spare parts list of model Milwaukee 4000447591 ( M18CAG115XPD-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FLANGE NUT | ||||
| 0001 | 4931441309 | 5.68 | 6.87 | |
| M12 18 C 85044055 | ||||
| 0002 | 4932352959 | 57.00 | 68.97 | |
| FLANGE | ||||
| 0003 | 4931435020 | 9.91 | 11.99 | |
| RETAINING RING | ||||
| 0004 | 4931435019 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0005 | 4931435018 | 9.00 | 10.89 | |
| SPRING WASHER | ||||
| 0006 | 4931435017 | 1.90 | 2.30 | |
| O-RING | ||||
| 0007 | 4931435016 | 1.80 | 2.18 | |
| SCREW (5 needed) | ||||
| 0008 | 4931435015 | 1.80 | 2.18 | |
| SPRING (2 needed) | ||||
| 0010 | 4931435012 | 4.49 | 5.43 | |
| BALL | ||||
| 0011 | 670219001 | 1.80 | 2.18 | |
| SPRING | ||||
| 0012 | 4931435010 | 5.40 | 6.53 | |
| LEVER | ||||
| 0013 | 4931435009 | 5.40 | 6.53 | |
| SCREW (6 needed) | ||||
| 0016 | 660414013 | 1.90 | 2.30 | |
| PROTECTION WASHER (4 needed) | ||||
| 0017 | 680866003 | 1.90 | 2.30 | |
| SPINDLE KIT | ||||
| 0018 | 4931436006 | 41.18 | 49.83 | |
| BALL BEARING | ||||
| 0019 | 4931446467 | 4.42 | 5.35 | |
| HOLDING RING | ||||
| 0020 | 4931435476 | 1.90 | 2.30 | |
| BEVEL GEAR PAIR | ||||
| 0021 | 4931436007 | 31.68 | 38.33 | |
| O-RING | ||||
| 0022 | 570699002 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0023 | 4931446185 | 4.49 | 5.43 | |
| SPINDLE LOCK | ||||
| 0024 | 4931436008 | 9.00 | 10.89 | |
| O-RING | ||||
| 0025 | 4931435006 | 1.80 | 2.18 | |
| AUXILIARY HANDLE | ||||
| 0026 | 4931435002 | 17.42 | 21.08 | |
| SCREW | ||||
| 0027 | 4931435023 | 1.90 | 2.30 | |
| TRIGGER | ||||
| 0028 | 4931435004 | 5.40 | 6.53 | |
| SPRING | ||||
| 0029 | 4931435005 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0030 | 4931436009 | 39.60 | 47.92 | |
| NUT | ||||
| 0031 | 671686001 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0033 | 681337001 | 9.00 | 10.89 | |
| BEARING CAGE | ||||
| 0034 | 672569001 | 1.90 | 2.30 | |
| SCREW | ||||
| 0035 | 660400005 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0036 | 632876001 | |||
| PLATE | ||||
| 0037 | 4931436010 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 0038 | 4931436011 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 0039 | 4931436012 | |||
| SWITCH KIT | ||||
| 0040 | 4931447744 | 136.22 | 164.83 | |
| BALL BEARING | ||||
| 0042 | 4931436014 | 4.49 | 5.43 | |
| SCREW (14 needed) | ||||
| 0043 | 660024030 | 1.90 | 2.30 | |
| SCREW (3 needed) | ||||
| 0044 | 4931453227 | 1.90 | 2.30 | |
| HOUSING | ||||
| 0045 | 4931447745 | 26.93 | 32.59 | |
| DUST GUARD CAP | ||||
| 0046 | 4931436016 | 5.68 | 6.87 | |
| PRESSURE CLAMP | ||||
| 0050 | 4931447746 | 9.00 | 10.89 | |
| SPANNER M14 | ||||
| 0052 | 632145002 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0055 | 4931447747 | 1.90 | 2.30 | |
| GUARD CAP | ||||
| 0060 | 4931452110 | 14.40 | 17.42 | |
| GUARD CAP | ||||
| 0062 | 4931452112 | 12.60 | 15.25 | |
| GUARD CAP | ||||
| 0070 | 4931452113 | 30.10 | 36.42 | |
| GUARD CAP | ||||
| 0072 | 4931452114 | 23.76 | 28.75 | |
| ARMATURE | ||||
| 0080 | 4931466720 | 71.28 | 86.25 | |
| NO DESCRIPTION | ||||
| 0701 | 4932453386 | 60.72 | 73.47 | |
| NO DESCRIPTION | ||||
| 0702 | 4932453860 | 19.72 | 23.86 | |
