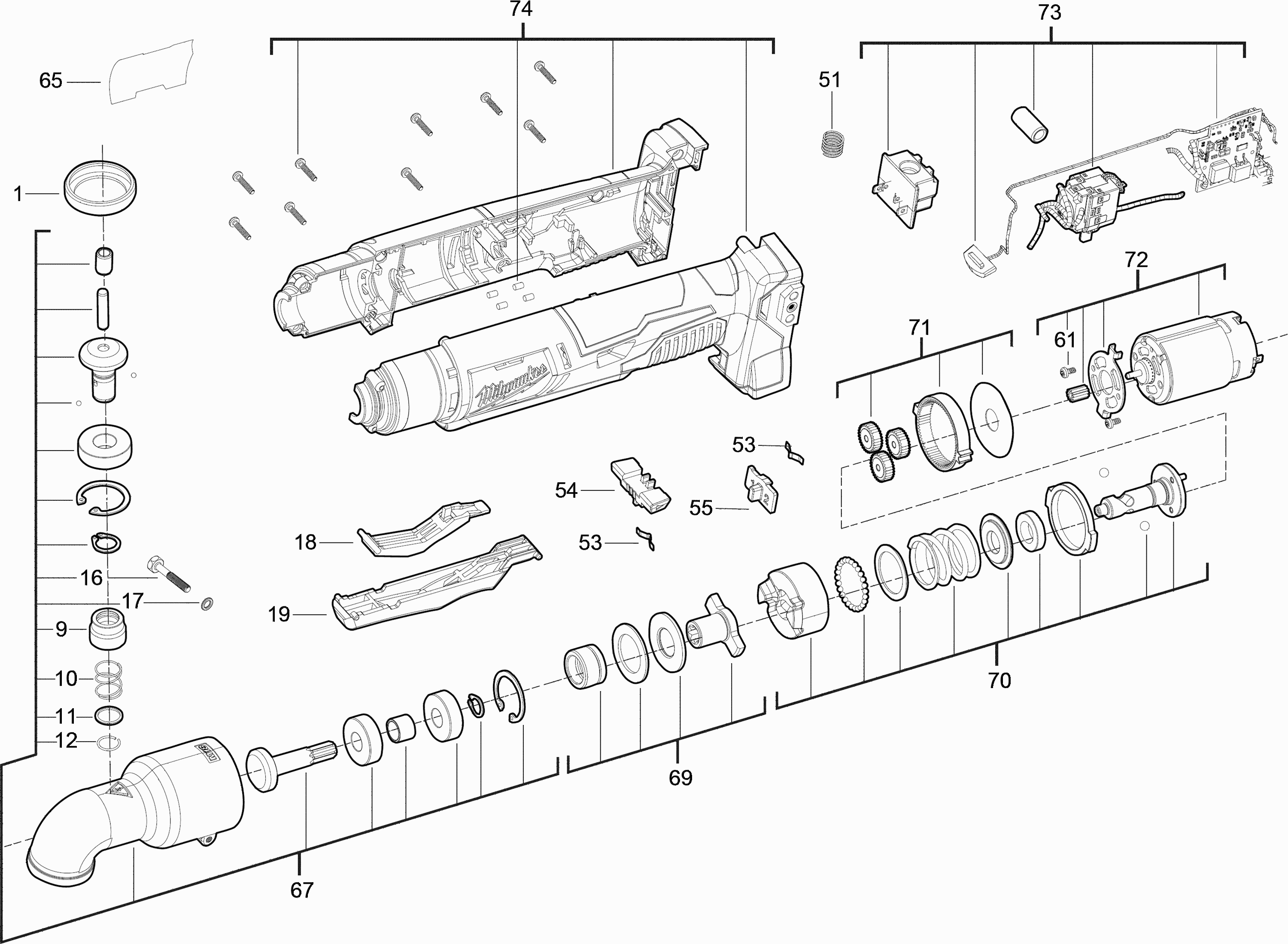

Technical drawing of model Milwaukee 4000452906 ( M18BRAID-0 )
Spare parts list of model Milwaukee 4000452906 ( M18BRAID-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RUBBER RING | ||||
| 0001 | 4931436476 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 0009 | 4931436477 | |||
| No information available, not orderable | ||||
| 0010 | 4931436478 | |||
| DISC | ||||
| 0011 | 4931436479 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0012 | 4931436480 | |||
| SCREW | ||||
| 0016 | 4931436481 | 1.80 | 2.18 | |
| PROTECTION WASHER (4 needed) | ||||
| 0017 | 680866003 | 1.90 | 2.30 | |
| RACKING LEVER | ||||
| 0018 | 4931436482 | 1.90 | 2.30 | |
| PUSH-BUTTON | ||||
| 0019 | 4931436483 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0051 | 4931408243 | 5.40 | 6.53 | |
| SPRING PLATE | ||||
| 0053 | 4931452341 | 1.90 | 2.30 | |
| SLIDING SWITCH | ||||
| 0054 | 4931436484 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0055 | 4931436485 | |||
| SCREW (2 needed) | ||||
| 0061 | 4931435990 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0065 | 4931453826 | 1.90 | 2.30 | |
| GEAR BOX HOUSING | ||||
| 0067 | 4931436487 | 104.54 | 126.49 | |
| ANVIL | ||||
| 0069 | 4931436488 | 42.77 | 51.75 | |
| IMPACT BOLT | ||||
| 0070 | 4931436489 | 55.44 | 67.08 | |
| PLANET GEAR | ||||
| 0071 | 4931436490 | 10.72 | 12.97 | |
| MOTOR | ||||
| 0072 | 4931436491 | 31.68 | 38.33 | |
| SWITCH | ||||
| 0073 | 4931436492 | 91.87 | 111.16 | |
| HOUSING | ||||
| 0074 | 4931453827 | 15.84 | 19.17 | |
