Here you will find all available parts and drawings of the 'Milwaukee 4000447825 (M18BMT-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

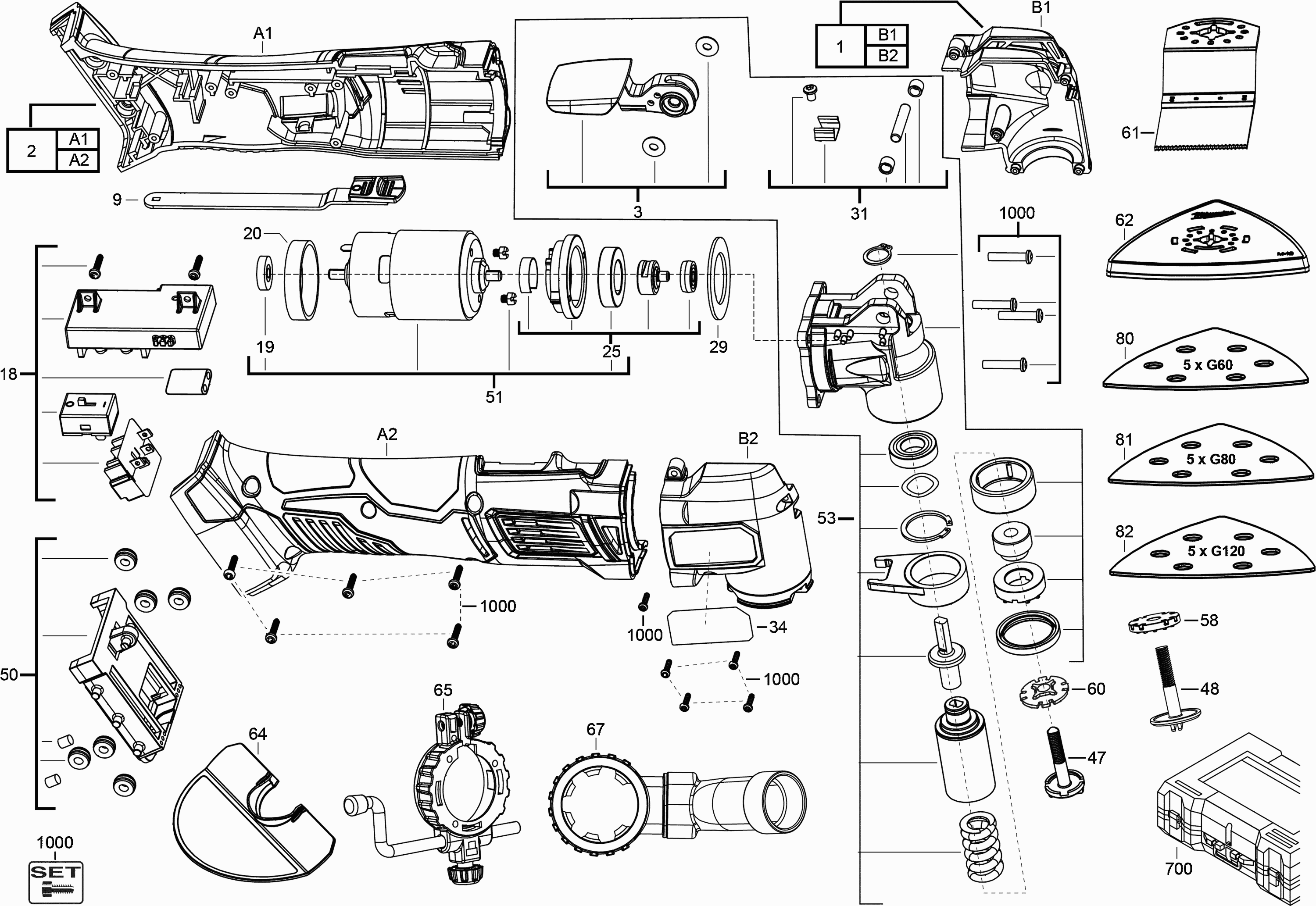

Technical drawing of model Milwaukee 4000447825 (M18BMT-0)
Spare parts list of model Milwaukee 4000447825 (M18BMT-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| M18 4,0 AH ACCU | ||||
| 0001 | 4932430063 | 138.30 | 167.34 | |
| HOUSING CAP | ||||
| 0001 | 4931436180 | 7.20 | 8.71 | |
| HOUSING | ||||
| 0002 | 4931436181 | 16.20 | 19.60 | |
| No longer available, no replacement | ||||
| 0003 | 4931436182 | |||
| No longer available, no replacement | ||||
| 0009 | 4931436183 | |||
| PRINT.CURIUT SWITCH | ||||
| 0018 | 4931447721 | 79.20 | 95.83 | |
| No longer available, no replacement | ||||
| 0019 | 4931447722 | |||
| RUBBER RING | ||||
| 0020 | 4931436186 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0025 | 4931447723 | |||
| WASHER | ||||
| 0029 | 4931436188 | 3.00 | 3.63 | |
| CLAMPING SET | ||||
| 0031 | 4931436189 | 3.79 | 4.59 | |
| RATING PLATE | ||||
| 0034 | 4931447829 | 4.54 | 5.49 | |
| CLAMPING SCREW | ||||
| 0047 | 4931436191 | 14.40 | 17.42 | |
| STRAINING SCREW | ||||
| 0048 | 4931447570 | 15.84 | 19.17 | |
| TERMINAL STRIP | ||||
| 0050 | 4931436192 | 7.20 | 8.71 | |
| MOTOR ASSEMBLY | ||||
| 0051 | 4931447724 | 64.94 | 78.58 | |
| GEAR BOX KIT | ||||
| 0053 | 4931436194 | 79.20 | 95.83 | |
| CLAMPING FLANGE,Adapter | ||||
| 0058 | 4931447571 | 10.80 | 13.07 | |
| ADAPTER | ||||
| 0060 | 4931447572 | 9.00 | 10.89 | |
| BLADE | ||||
| 0061 | 4931473395 | 17.05 | 20.63 | |
| SAW BLADE | ||||
| 0061 | 4931447573 | 10.80 | 13.07 | |
| GRINDING DISK | ||||
| 0062 | 4931447574 | 16.20 | 19.60 | |
| KNIFE PROTECTION | ||||
| 0064 | 4931447578 | 4.54 | 5.49 | |
| DEPTH GAUGE | ||||
| 0065 | 4931447579 | 26.69 | 32.29 | |
| DUST EXTRACTION AS. | ||||
| 0067 | 4931447580 | 16.20 | 19.60 | |
| SANDING PAPER | ||||
| 0080 | 4931447575 | 5.40 | 6.53 | |
| SANDING PAPER | ||||
| 0081 | 4931447576 | 6.00 | 7.26 | |
| SANDING PAPER | ||||
| 0082 | 4931447577 | 6.00 | 7.26 | |
| CARRYING CASE | ||||
| 0700 | 4931447720 | 63.36 | 76.67 | |
| SCREW | ||||
| 1000 | 4931436195 | 3.60 | 4.36 | |
