Here you will find all available parts and drawings of the 'Milwaukee 4000447936 ( M18BMS20-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

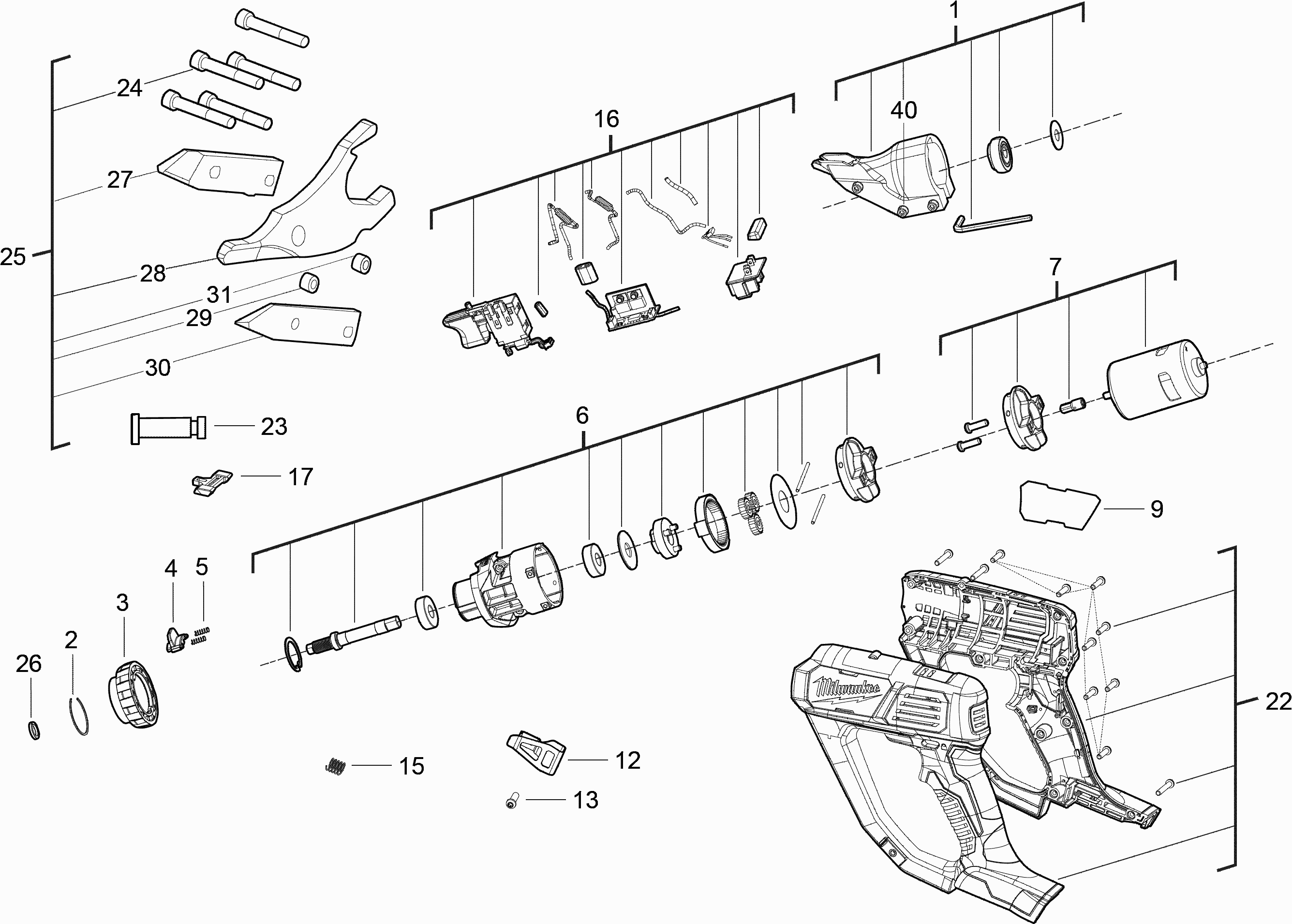

Technical drawing of model Milwaukee 4000447936 ( M18BMS20-0 )

Spare parts list of model Milwaukee 4000447936 ( M18BMS20-0 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
SHEAR HEAD
0001 4931448013 443.52 536.66
HOLDING RING
0002 4931436586 1.90 2.30
HOUSING
0003 4931436587 44.35 53.66
GEAR BOX HOUSING
0004 4931436588 5.40 6.53
SPRING (2 needed)
0005 4931436589 1.90 2.30
GEAR BOX KIT
0006 4931436600 76.03 92.00
MOTOR ASSEMBLY
0007 4931436591 76.03 92.00
No information available, not orderable
0009 4931436601
STAMP
0012 4931436593 4.49 5.43
SCREW
0013 4931436594 1.80 2.18
PRESSURE SPRING
0015 4931408243 5.40 6.53
ELECTRONIC ELEMENT
0016 4931436595 80.78 97.74
No information available, not orderable
0017 4931436596
HOUSING
0022 4931436597 42.77 51.75
GREASE TUBE (2 needed)
0023 4931432782 14.40 17.42
SCREW (3 needed)
0024 4931436602 7.20 8.71
No longer available, no replacement
0025 4931448014
WASHER
0026 4931436599 1.80 2.18
No longer available, no replacement
0027 48440170
No longer available, no replacement
0028 4931465448
BUSH
0029 4931465449 63.36 76.67
No longer available, no replacement
0030 48440160
No longer available, no replacement
0031 42400520
INSERT (3 needed)
0040 4931465450 9.00 10.89
