Here you will find all available parts and drawings of the 'Milwaukee 4000509240 ( M18BLSAG115XPD-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

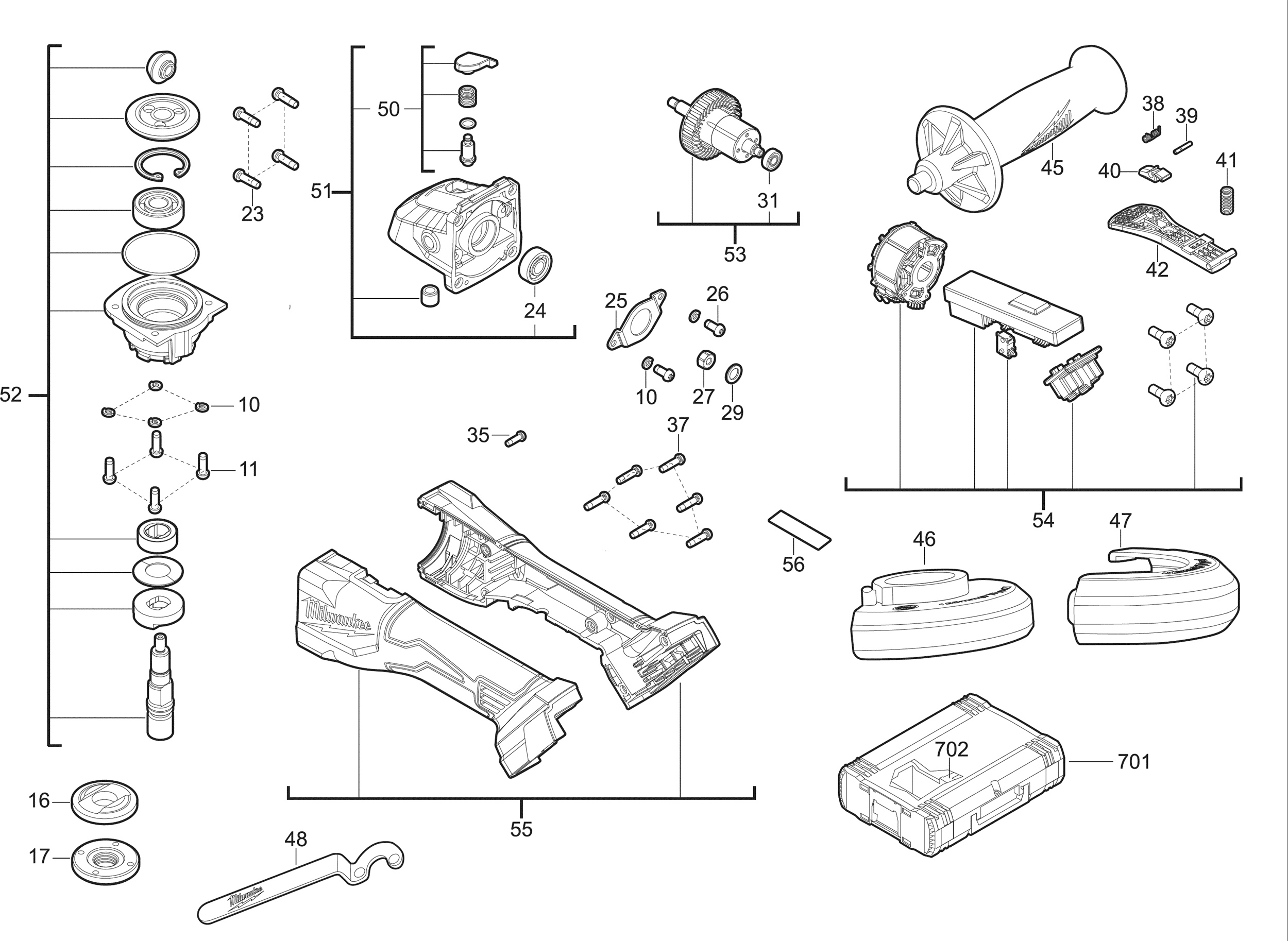

Technical drawing of model Milwaukee 4000509240 ( M18BLSAG115XPD-0 )
Spare parts list of model Milwaukee 4000509240 ( M18BLSAG115XPD-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| PROTECTION WASHER (4 needed) | ||||
| 0010 | 680866003 | 3.60 | 4.36 | |
| SCREW (27 needed) | ||||
| 0011 | 4931435150 | 3.60 | 4.36 | |
| FLANGE | ||||
| 0016 | 4931479268 | 6.60 | 7.99 | |
| FLANGE NUT | ||||
| 0017 | 4931441309 | 6.82 | 8.25 | |
| SCREW (14 needed) | ||||
| 0023 | 660024030 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0024 | 4931448373 | 3.00 | 3.63 | |
| RETAINER | ||||
| 0025 | 4931479269 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0026 | 660165015 | 3.00 | 3.63 | |
| NUT | ||||
| 0027 | 671686001 | 4.80 | 5.81 | |
| WASHER | ||||
| 0029 | 4931479270 | 3.60 | 4.36 | |
| BALL BEARING | ||||
| 0031 | 4931495379 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0035 | 4931436686 | 3.60 | 4.36 | |
| SCREW (18 needed) | ||||
| 0037 | 660031017 | 3.60 | 4.36 | |
| SPRING | ||||
| 0038 | 4931496284 | 1.80 | 2.18 | |
| BOLT | ||||
| 0039 | 4931454155 | 3.60 | 4.36 | |
| TRIGGER | ||||
| 0040 | 4931479404 | 3.60 | 4.36 | |
| SPRING | ||||
| 0041 | 4931479407 | 3.60 | 4.36 | |
| TRIGGER | ||||
| 0042 | 4931495380 | 3.00 | 3.63 | |
| AUXILIARY HANDLE | ||||
| 0045 | 4931435001 | 10.80 | 13.07 | |
| GUARD | ||||
| 0046 | 4931479276 | 14.85 | 17.97 | |
| CUTTING GUARD | ||||
| 0047 | 4931479277 | 5.30 | 6.41 | |
| SPANNER M14 | ||||
| 0048 | 632145002 | 6.00 | 7.26 | |
| LOCK COMPLETE | ||||
| 0050 | 4931495381 | 4.80 | 5.81 | |
| GEAR BOX | ||||
| 0051 | 4931495382 | 34.10 | 41.26 | |
| SPINDLE KIT | ||||
| 0052 | 4931495383 | 49.50 | 59.90 | |
| ARMATURE | ||||
| 0053 | 4931495384 | 34.10 | 41.26 | |
| ELECTRONIC | ||||
| 0054 | 4931495385 | 146.30 | 177.02 | |
| HOUSING | ||||
| 0055 | 4931495466 | 24.20 | 29.28 | |
| RATING PLATE | ||||
| 0056 | 4931507948 | 1.20 | 1.45 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931495388 | 15.40 | 18.63 | |
