Here you will find all available parts and drawings of the 'Milwaukee 4000467920 (M18BLCS66-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

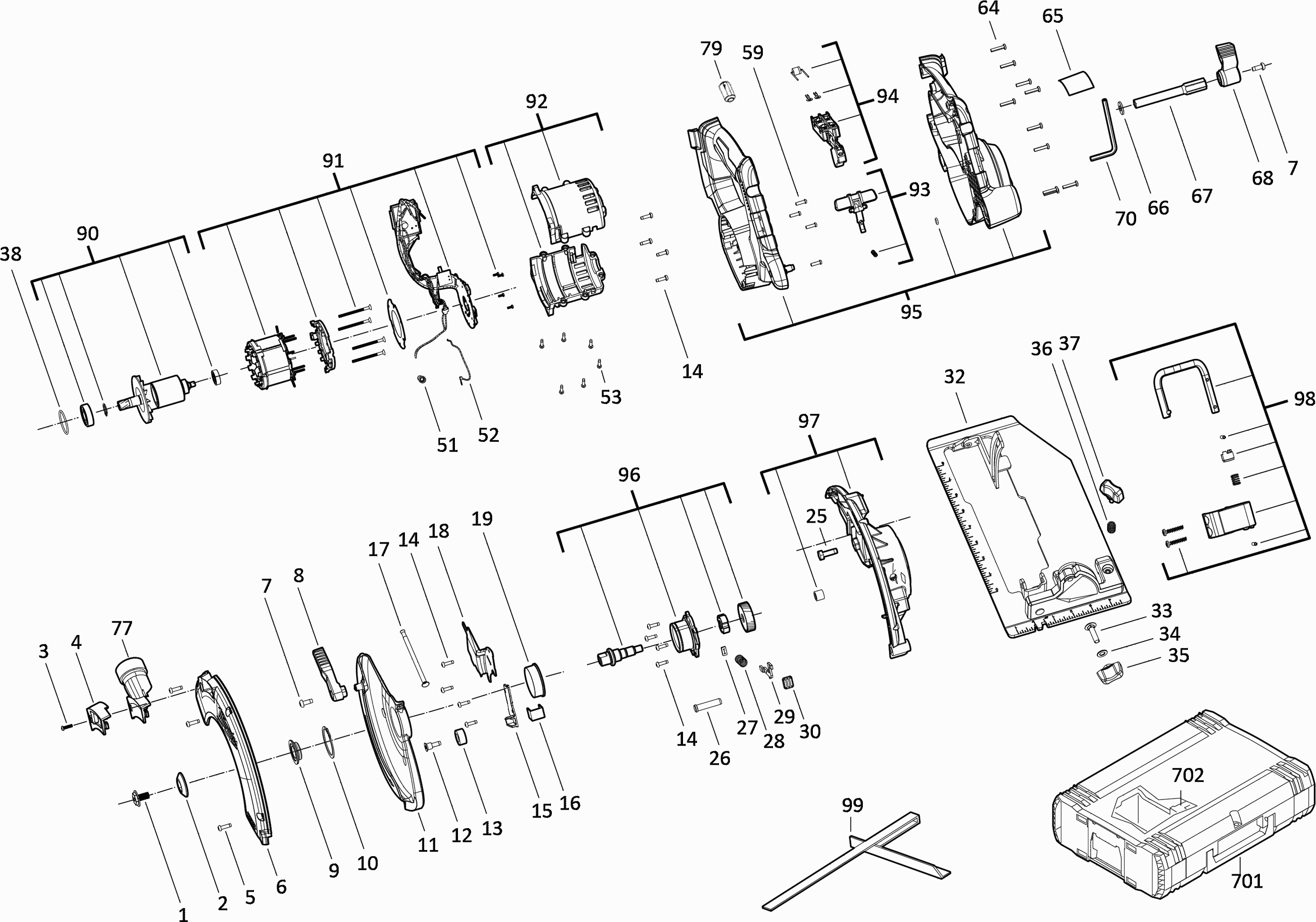

Technical drawing of model Milwaukee 4000467920 (M18BLCS66-0)
Spare parts list of model Milwaukee 4000467920 (M18BLCS66-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 0001 | 4931436453 | 3.00 | 3.63 | |
| FLANGE | ||||
| 0002 | 43340795 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0002 | 43340485 | 4.20 | 5.08 | |
| SCREW | ||||
| 0003 | 4931465872 | 3.00 | 3.63 | |
| CHIP EJECTOR | ||||
| 0004 | 4931465873 | 3.00 | 3.63 | |
| SCREW (27 needed) | ||||
| 0005 | 4931435150 | 3.60 | 4.36 | |
| GUARD | ||||
| 0006 | 4931465874 | 28.51 | 34.50 | |
| SCREW TORX SCREW (8 needed) | ||||
| 0007 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (4 needed) | ||||
| 0007 | 6825314 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0008 | 4931436455 | |||
| FLANGE | ||||
| 0009 | 4931465957 | 10.80 | 13.07 | |
| THRUST COLLAR | ||||
| 0010 | 34600860 | 3.00 | 3.63 | |
| GUARD CAP | ||||
| 0011 | 4931457177 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0012 | 45040485 | |||
| RUBBER BUFFER | ||||
| 0013 | 4931465876 | 3.00 | 3.63 | |
| SCREW (13 needed) | ||||
| 0014 | 06825285 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0014 | 6825285 | 1.00 | 1.21 | |
| COVER | ||||
| 0015 | 4931436457 | 4.80 | 5.81 | |
| INDICATOR SET | ||||
| 0016 | 4931436458 | 7.20 | 8.71 | |
| SPRING | ||||
| 0017 | 40500045 | 3.00 | 3.63 | |
| PLATE | ||||
| 0018 | 4931436459 | 4.49 | 5.43 | |
| RING | ||||
| 0019 | 4931436460 | 5.40 | 6.53 | |
| SCREW 1/4-20X3/4 | ||||
| 0025 | 06755860 | 4.32 | 5.23 | |
| PIN | ||||
| 0026 | 4931465877 | 4.49 | 5.43 | |
| FELT PACKING | ||||
| 0027 | 45060720 | 5.40 | 6.53 | |
| SPRING | ||||
| 0028 | 4931461124 | 3.00 | 3.63 | |
| SPRING | ||||
| 0029 | 4931465878 | 3.00 | 3.63 | |
| PUSH-BUTTON | ||||
| 0030 | 42421030 | 6.82 | 8.25 | |
| GUIDE SHOE | ||||
| 0032 | 4931465879 | 91.87 | 111.16 | |
| THREADED PIN | ||||
| 0033 | 4931465880 | 3.00 | 3.63 | |
| WASHER | ||||
| 0034 | 45881560 | 3.00 | 3.63 | |
| KNOB HANDLE | ||||
| 0035 | 4931465881 | 4.54 | 5.49 | |
| SPRING | ||||
| 0036 | 40500650 | 3.00 | 3.63 | |
| KNOB | ||||
| 0037 | 43980720 | 3.00 | 3.63 | |
| O-RING | ||||
| 0038 | 4931436466 | 3.00 | 3.63 | |
| CONNECTOR | ||||
| 0051 | 4931453770 | 5.40 | 6.53 | |
| WIRE | ||||
| 0052 | 4931465882 | 3.00 | 3.63 | |
| SCREW (35 needed) | ||||
| 0053 | 660570005 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0059 | 4931465883 | 3.00 | 3.63 | |
| SCREW (13 needed) | ||||
| 0064 | 06827470 | 6.22 | 7.53 | |
| SCREW (13 needed) | ||||
| 0064 | 6827470 | 1.20 | 1.45 | |
| RATING PLATE | ||||
| 0065 | 4931465884 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0066 | 45881545 | |||
| SHAFT | ||||
| 0067 | 45080395 | 4.20 | 5.08 | |
| TENSION LEVER | ||||
| 0068 | 4931461131 | 4.80 | 5.81 | |
| KEY | ||||
| 0070 | 4931436125 | 3.60 | 4.36 | |
| DUST EXTR.CONNECTOR | ||||
| 0077 | 4931465885 | 9.00 | 10.89 | |
| MAGNET | ||||
| 0079 | 4931466005 | 7.20 | 8.71 | |
| ROTOR | ||||
| 0090 | 4931465886 | 102.96 | 124.58 | |
| ELECTRONIC | ||||
| 0091 | 4931465887 | 190.08 | 230.00 | |
| HOUSING SET ASSY | ||||
| 0092 | 4931465888 | 19.01 | 23.00 | |
| LOCKING LEVER | ||||
| 0093 | 4931465889 | 10.80 | 13.07 | |
| SWITCH | ||||
| 0094 | 4931465890 | 39.60 | 47.92 | |
| HOUSING | ||||
| 0095 | 4931465891 | 60.19 | 72.83 | |
| DRIVING SHAFT | ||||
| 0096 | 4931465892 | 88.70 | 107.33 | |
| GEAR BOX COVER | ||||
| 0097 | 4931465893 | 76.03 | 92.00 | |
| HOOK | ||||
| 0098 | 4931465894 | 23.76 | 28.75 | |
| PARALLEL GUIDE | ||||
| 0099 | 4931448018 | 14.40 | 17.42 | |
| HD Box 3 - 1pc | ||||
| 0701 | 4932453386 | 66.79 | 80.82 | |
| No longer available, no replacement | ||||
| 0702 | 4931453859 | |||
