Here you will find all available parts and drawings of the 'Milwaukee 4000505269 (M12SICO20-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

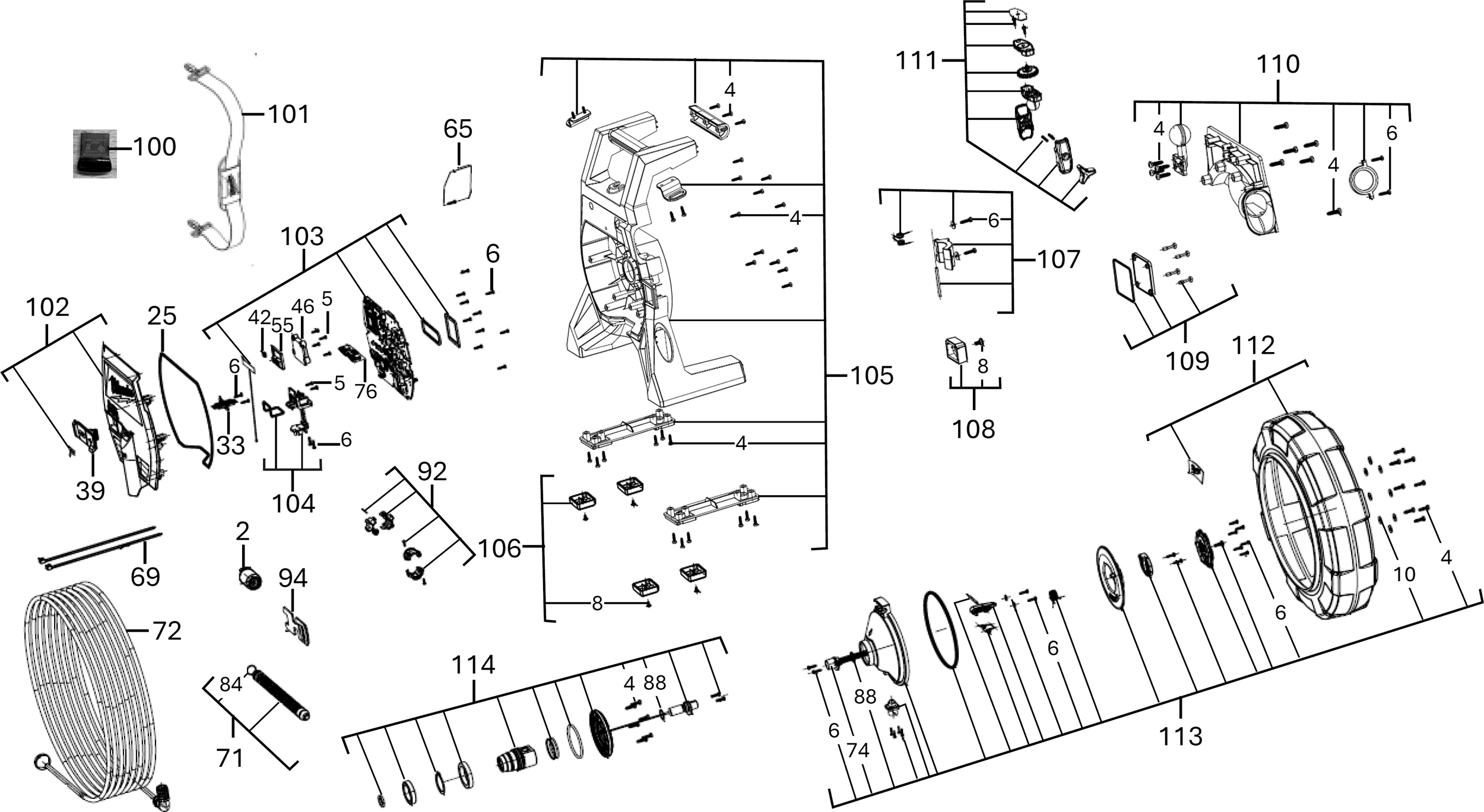

Technical drawing of model Milwaukee 4000505269 (M12SICO20-0)
Spare parts list of model Milwaukee 4000505269 (M12SICO20-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| INSPECTION CAMERA | ||||
| 0002 | 4931508612 | 485.65 | 587.64 | |
| SCREW (12 needed) | ||||
| 0004 | 4931473648 | 1.80 | 2.18 | |
| SCREW (6 needed) | ||||
| 0005 | 4931508614 | 1.20 | 1.45 | |
| SCREW (19 needed) | ||||
| 0006 | 4931473647 | 3.00 | 3.63 | |
| SCREW (12 needed) | ||||
| 0008 | 4931473597 | 3.00 | 3.63 | |
| SEALING WASHER (4 needed) | ||||
| 0010 | 4931473603 | 3.00 | 3.63 | |
| SEAL | ||||
| 0025 | 4931508615 | 11.00 | 13.31 | |
| GAUGE | ||||
| 0033 | 4931508616 | 6.00 | 7.26 | |
| COVER | ||||
| 0039 | 4931508617 | 12.10 | 14.64 | |
| LENS | ||||
| 0042 | 4931508618 | 8.40 | 10.16 | |
| COVER | ||||
| 0046 | 4931508619 | 6.00 | 7.26 | |
| BUTTON | ||||
| 0055 | 4931508620 | 67.10 | 81.19 | |
| RATING PLATE | ||||
| 0065 | 4931508621 | 3.60 | 4.36 | |
| CABLE JOINT (3 needed) | ||||
| 0069 | 4931473610 | 3.79 | 4.59 | |
| SPRING | ||||
| 0071 | 4931508622 | 312.95 | 378.67 | |
| CABLE | ||||
| 0072 | 4931508623 | 540.10 | 653.52 | |
| CONNECTOR | ||||
| 0074 | 4931508624 | 110.00 | 133.10 | |
| ELECTRONIC | ||||
| 0076 | 4931508625 | 106.70 | 129.11 | |
| SPRING | ||||
| 0084 | 4931508626 | 1.20 | 1.45 | |
| O-RING | ||||
| 0088 | 4931473613 | 1.20 | 1.45 | |
| SLEEVE | ||||
| 0092 | 4931508627 | 22.55 | 27.29 | |
| WRENCH | ||||
| 0094 | 4931508628 | 13.20 | 15.97 | |
| SWITCH KIT | ||||
| 0100 | 4931508629 | 97.35 | 117.79 | |
| STRAP | ||||
| 0101 | 4931479039 | 22.00 | 26.62 | |
| HOUSING | ||||
| 0102 | 4931508630 | 50.60 | 61.23 | |
| ELECTRONIC | ||||
| 0103 | 4931508631 | 963.60 | 1165.96 | |
| COVER | ||||
| 0104 | 4931508632 | 18.70 | 22.63 | |
| HOUSING | ||||
| 0105 | 4931508633 | 130.35 | 157.72 | |
| FOOT | ||||
| 0106 | 4931508634 | 71.50 | 86.52 | |
| CLIP | ||||
| 0107 | 4931508635 | 14.30 | 17.30 | |
| FOOT | ||||
| 0108 | 4931508636 | 33.00 | 39.93 | |
| DOOR | ||||
| 0109 | 4931508637 | 18.70 | 22.63 | |
| COVER | ||||
| 0110 | 4931508638 | 99.00 | 119.79 | |
| MOUNTING BRACKET | ||||
| 0111 | 4931508639 | 84.70 | 102.49 | |
| MOULDED PART | ||||
| 0112 | 4931508640 | 97.90 | 118.46 | |
| HUB | ||||
| 0113 | 4931508641 | 172.70 | 208.97 | |
| FRAME | ||||
| 0114 | 4931508642 | 211.20 | 255.55 | |
