Here you will find all available parts and drawings of the 'Milwaukee 4000505257 ( M12POSIC-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

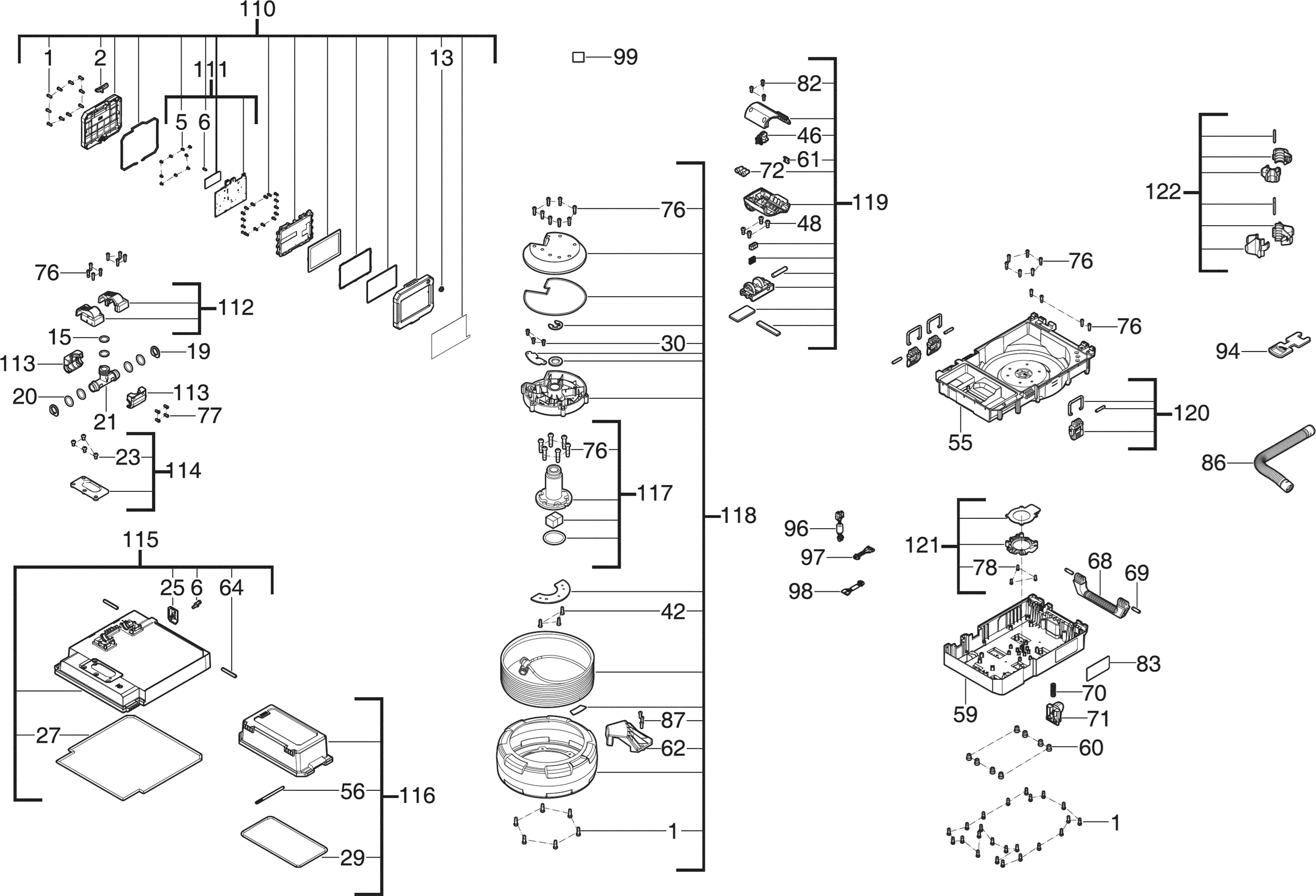

Technical drawing of model Milwaukee 4000505257 ( M12POSIC-0 )
Spare parts list of model Milwaukee 4000505257 ( M12POSIC-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (15 needed) | ||||
| 0001 | 4931465326 | 3.60 | 4.36 | |
| COVER | ||||
| 0002 | 4931511849 | 4.80 | 5.81 | |
| SCREW (9 needed) | ||||
| 0005 | 4931472507 | 1.20 | 1.45 | |
| SCREW (19 needed) | ||||
| 0006 | 4931511850 | 1.20 | 1.45 | |
| BUTTON | ||||
| 0013 | 4931511851 | 3.60 | 4.36 | |
| O-RING (2 needed) | ||||
| 0015 | 4931511852 | 3.60 | 4.36 | |
| RETAINING RING (2 needed) | ||||
| 0019 | 4931511853 | 3.60 | 4.36 | |
| O-RING (4 needed) | ||||
| 0020 | 4931511854 | 3.60 | 4.36 | |
| CONNECTION | ||||
| 0021 | 4931511855 | 10.80 | 13.07 | |
| SCREW | ||||
| 0023 | 4931453100 | 3.60 | 4.36 | |
| COVER | ||||
| 0025 | 4931511856 | 3.60 | 4.36 | |
| SEAL | ||||
| 0027 | 4931511857 | 10.80 | 13.07 | |
| SEAL | ||||
| 0029 | 4931511858 | 7.20 | 8.71 | |
| SCREW (8 needed) | ||||
| 0030 | 4931454269 | 3.00 | 3.63 | |
| SCREW (3 needed) | ||||
| 0042 | 4931507107 | 1.20 | 1.45 | |
| TERMINAL | ||||
| 0046 | 4931511859 | 12.10 | 14.64 | |
| No longer available, no replacement | ||||
| 0048 | 4931447515 | |||
| HOUSING | ||||
| 0055 | 4931511860 | 45.10 | 54.57 | |
| DOOR | ||||
| 0056 | 4931511861 | 3.00 | 3.63 | |
| HOUSING | ||||
| 0059 | 4931511862 | 28.60 | 34.61 | |
| RUBBER FOOT (8 needed) | ||||
| 0060 | 4931511863 | 3.00 | 3.63 | |
| CONNECTOR | ||||
| 0061 | 4931436292 | 3.60 | 4.36 | |
| CROSS BRACKET | ||||
| 0062 | 4931511864 | 4.80 | 5.81 | |
| PIN (2 needed) | ||||
| 0064 | 4931511865 | 1.20 | 1.45 | |
| HANDLE | ||||
| 0068 | 4931511866 | 10.80 | 13.07 | |
| PIN (2 needed) | ||||
| 0069 | 4931511867 | 1.20 | 1.45 | |
| SPRING | ||||
| 0070 | 4931511868 | 3.00 | 3.63 | |
| ADJUSTING LOCK | ||||
| 0071 | 4931511869 | 6.00 | 7.26 | |
| CONNECTOR | ||||
| 0072 | 4931453770 | 5.40 | 6.53 | |
| SCREW (32 needed) | ||||
| 0076 | 4931511870 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0077 | 4931466151 | 3.60 | 4.36 | |
| SCREW (5 needed) | ||||
| 0078 | 4931507637 | 1.20 | 1.45 | |
| SCREW (3 needed) | ||||
| 0082 | 4931511871 | 1.20 | 1.45 | |
| RATING PLATE | ||||
| 0083 | 4931505630 | 1.20 | 1.45 | |
| POIC CK Packout Camera 18mm Head Kit XXX | ||||
| 0086 | 4932501254 | 274.89 | 332.62 | |
| SCREW | ||||
| 0087 | 4931495588 | 1.80 | 2.18 | |
| WRENCH (2 needed) | ||||
| 0094 | 4931511873 | 4.80 | 5.81 | |
| JUMPER RING | ||||
| 0096 | 4931511874 | 64.90 | 78.53 | |
| SWITCH BOARD | ||||
| 0097 | 4931511875 | 7.20 | 8.71 | |
| SWITCH BOARD | ||||
| 0098 | 4931511876 | 7.20 | 8.71 | |
| INSERT CARD | ||||
| 0099 | 4931511877 | 40.70 | 49.25 | |
| LENS | ||||
| 0110 | 4931511878 | 198.00 | 239.58 | |
| ELECTRONIC | ||||
| 0111 | 4931511879 | 1197.90 | 1449.46 | |
| HOLDER | ||||
| 0112 | 4931511880 | 12.10 | 14.64 | |
| COVER | ||||
| 0113 | 4931511881 | 3.60 | 4.36 | |
| COVER | ||||
| 0114 | 4931511882 | 46.20 | 55.90 | |
| LID | ||||
| 0115 | 4931511883 | 61.60 | 74.54 | |
| LID | ||||
| 0116 | 4931511884 | 30.80 | 37.27 | |
| SHAFT | ||||
| 0117 | 4931511885 | 64.90 | 78.53 | |
| POIC CC Packout Camera Repl Drum+Cable | ||||
| 0118 | 4932501256 | 329.89 | 399.17 | |
| TERMINAL | ||||
| 0119 | 4931511886 | 35.20 | 42.59 | |
| LATCH (3 needed) | ||||
| 0120 | 4931511887 | 11.00 | 13.31 | |
| HOLDER | ||||
| 0121 | 4931511888 | 86.90 | 105.15 | |
| POIC CS Packout Camera replacement Skids | ||||
| 0122 | 4932501255 | 47.90 | 57.96 | |
