Here you will find all available parts and drawings of the 'Milwaukee 4000503600 ( M12PCSS54-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

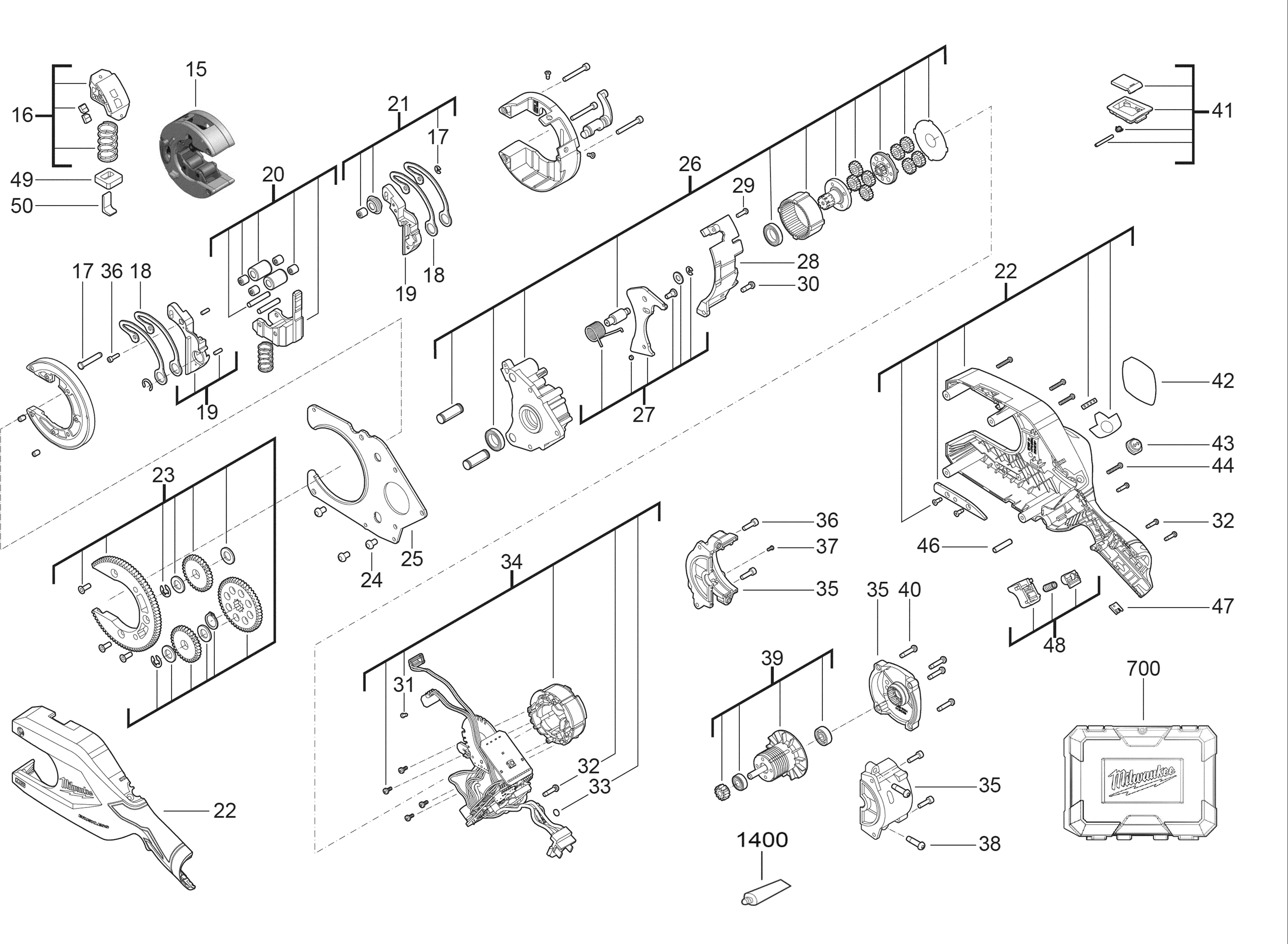

Technical drawing of model Milwaukee 4000503600 ( M12PCSS54-0 )
Spare parts list of model Milwaukee 4000503600 ( M12PCSS54-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CUTTING HEAD | ||||
| 0015 | 4931507786 | 199.10 | 240.91 | |
| PRESSURE SPRING | ||||
| 0016 | 4931507787 | 9.60 | 11.62 | |
| CLAMP CLIP | ||||
| 0017 | 4931507788 | 10.20 | 12.34 | |
| SPRING (4 needed) | ||||
| 0018 | 4931507789 | 13.20 | 15.97 | |
| CARRIAGE | ||||
| 0019 | 4931507790 | 108.90 | 131.77 | |
| ROLLER | ||||
| 0020 | 4931507791 | 88.00 | 106.48 | |
| PCSSW54 Wheels for 54 mm Pipe Cutter XXX | ||||
| 0021 | 4932498665 | 54.15 | 65.52 | |
| HANDLE SET | ||||
| 0022 | 4931507792 | 45.10 | 54.57 | |
| GEAR | ||||
| 0023 | 4931507793 | 105.60 | 127.78 | |
| SCREW (2 needed) | ||||
| 0024 | 4931466677 | 1.80 | 2.18 | |
| GEAR CASE | ||||
| 0025 | 4931507794 | 40.70 | 49.25 | |
| GEAR BOX | ||||
| 0026 | 4931507795 | 83.60 | 101.16 | |
| LEVER | ||||
| 0027 | 4931507796 | 13.20 | 15.97 | |
| COVER | ||||
| 0028 | 4931507797 | 4.80 | 5.81 | |
| SCREW | ||||
| 0029 | 4931495588 | 1.80 | 2.18 | |
| SCREW | ||||
| 0030 | 4931507811 | 3.00 | 3.63 | |
| SCREW | ||||
| 0031 | 4931465128 | 3.60 | 4.36 | |
| SCREW (35 needed) | ||||
| 0032 | 660570005 | 3.60 | 4.36 | |
| O-RING | ||||
| 0033 | 4931480707 | 3.60 | 4.36 | |
| ELECTRONIC | ||||
| 0034 | 4931507798 | 126.50 | 153.06 | |
| MOTOR HOUSING | ||||
| 0035 | 4931507799 | 12.10 | 14.64 | |
| SCREW (2 needed) | ||||
| 0036 | 4931479060 | 3.60 | 4.36 | |
| SCREW | ||||
| 0037 | 4931507800 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0038 | 4931495662 | 1.80 | 2.18 | |
| ROTOR | ||||
| 0039 | 4931507801 | 39.60 | 47.92 | |
| SCREW (13 needed) | ||||
| 0040 | 4931465499 | 3.60 | 4.36 | |
| LID | ||||
| 0041 | 4931507802 | 9.60 | 11.62 | |
| RATING PLATE | ||||
| 0042 | 4931507803 | 3.60 | 4.36 | |
| BUTTON | ||||
| 0043 | 4931507804 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0044 | 4931507805 | 3.00 | 3.63 | |
| PIN | ||||
| 0046 | 4931507806 | 3.60 | 4.36 | |
| CONNECTOR | ||||
| 0047 | 4931436292 | 3.60 | 4.36 | |
| TRIGGER | ||||
| 0048 | 4931507807 | 6.00 | 7.26 | |
| INTERLOCK PLATE | ||||
| 0049 | 4931507808 | 10.80 | 13.07 | |
| LIFTER ASSEMBLY | ||||
| 0050 | 4931507809 | 8.40 | 10.16 | |
| CARRYING CASE | ||||
| 0700 | 4931507810 | 60.50 | 73.20 | |
| No information available, not orderable | ||||
| 1400 | 4931491278 | |||
