Here you will find all available parts and drawings of the 'Milwaukee 4000477385 (M12FMT-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

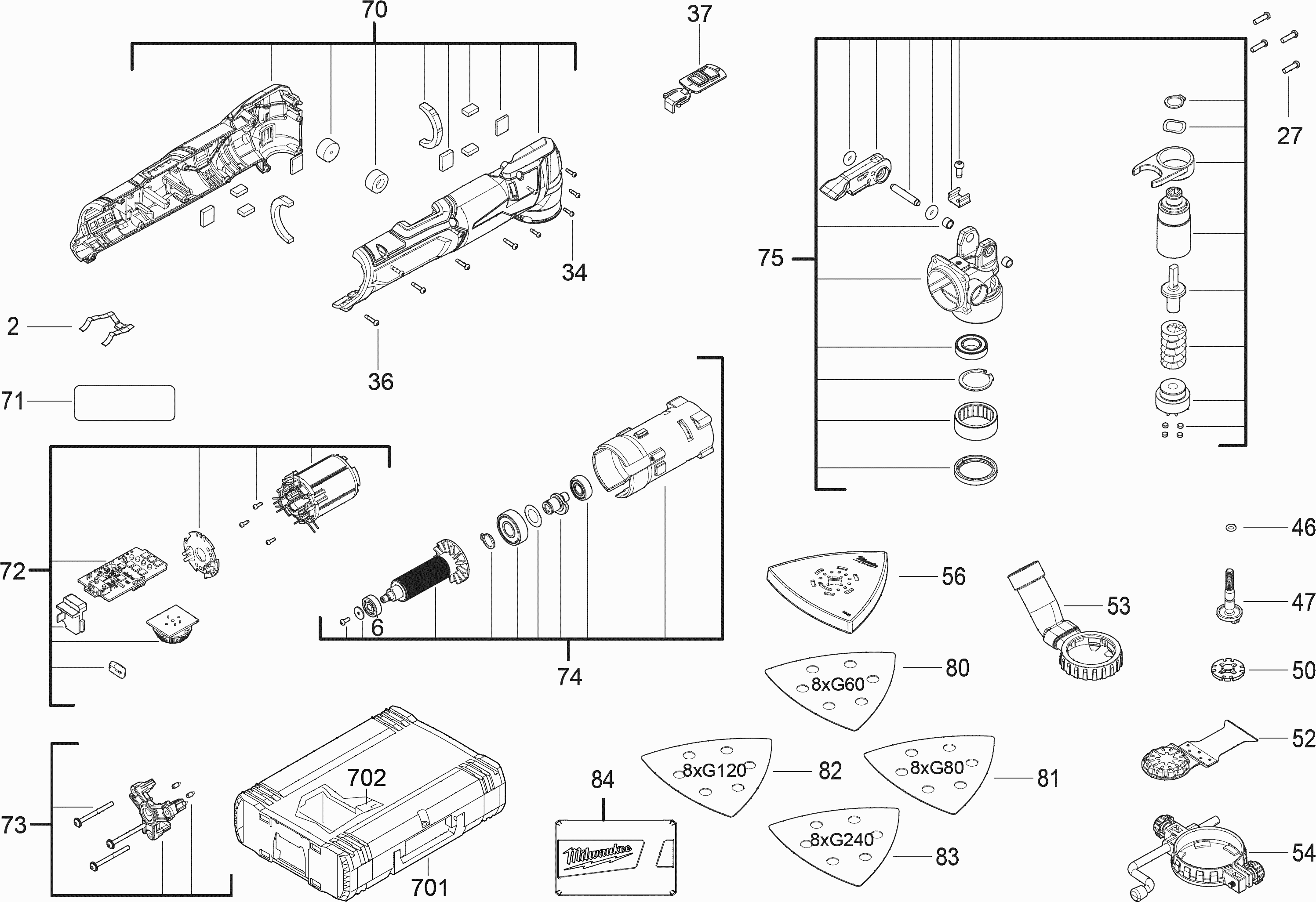

Technical drawing of model Milwaukee 4000477385 (M12FMT-0)
Spare parts list of model Milwaukee 4000477385 (M12FMT-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SPRING ELEMENT | ||||
| 0002 | 633680001 | 4.49 | 5.43 | |
| SPRING | ||||
| 0002 | 4931506540 | 3.60 | 4.36 | |
| BALL BEARING | ||||
| 0006 | 4931465987 | 4.49 | 5.43 | |
| SCREW (4 needed) | ||||
| 0027 | 4931465883 | 3.00 | 3.63 | |
| SCREW | ||||
| 0034 | 4931447534 | 3.00 | 3.63 | |
| SCREW (35 needed) | ||||
| 0036 | 660570005 | 3.60 | 4.36 | |
| SLIDER | ||||
| 0037 | 4931473391 | 3.60 | 4.36 | |
| O-RING | ||||
| 0046 | 4931473392 | 3.00 | 3.63 | |
| FASTENING BOLT | ||||
| 0047 | 4931473393 | 13.18 | 15.95 | |
| ADAPTER DISC | ||||
| 0050 | 4931473394 | 6.82 | 8.25 | |
| BLADE | ||||
| 0052 | 4931473395 | 17.05 | 20.63 | |
| DUST EXTR.CONNECTOR | ||||
| 0053 | 4931473396 | 9.60 | 11.62 | |
| DEPTH GAUGE | ||||
| 0054 | 4931473397 | 14.30 | 17.30 | |
| GRINDING DISK | ||||
| 0056 | 4931447574 | 16.20 | 19.60 | |
| No information available, not orderable | ||||
| 0070 | 4931473398 | |||
| RATING PLATE | ||||
| 0071 | 4931473399 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0072 | 4931473400 | |||
| BEARING END PLATE | ||||
| 0073 | 4931473401 | 15.25 | 18.45 | |
| ROTOR | ||||
| 0074 | 4931473402 | 97.90 | 118.46 | |
| GEAR BOX | ||||
| 0075 | 4931473403 | 88.55 | 107.15 | |
| Sand Paper D HL 93x93/6 G60-8pc | ||||
| 0080 | 48902060 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 0081 | 48902080 | |||
| Sand Paper D HL 93x93/6 G120-8pc | ||||
| 0082 | 48902120 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 0083 | 48902240 | |||
| TOOL BOX | ||||
| 0084 | 4931473404 | 13.20 | 15.97 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931479059 | 15.40 | 18.63 | |
