Here you will find all available parts and drawings of the 'Milwaukee 4000497516 ( M12FJS-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

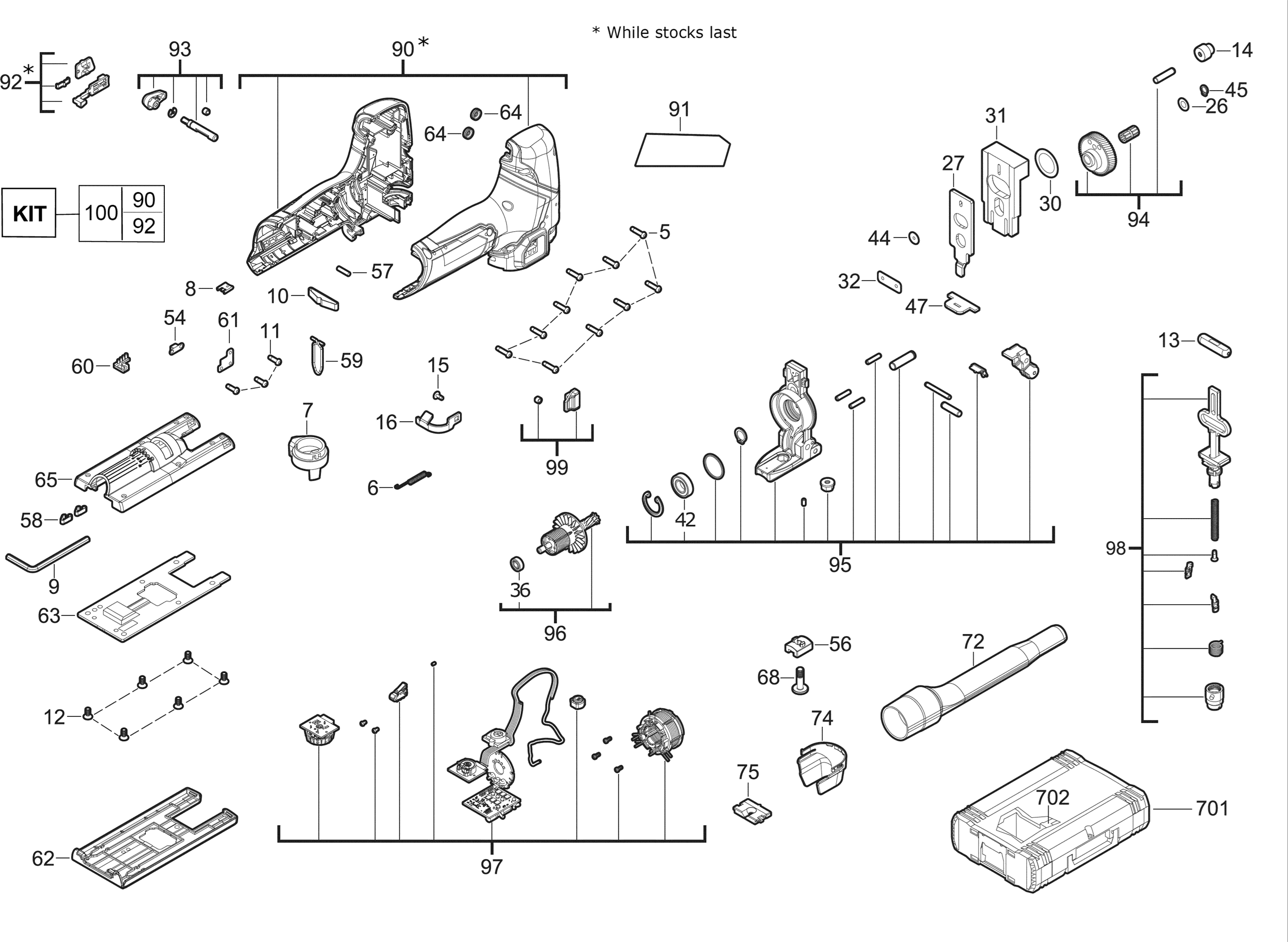

Technical drawing of model Milwaukee 4000497516 ( M12FJS-0 )
Spare parts list of model Milwaukee 4000497516 ( M12FJS-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (13 needed) | ||||
| 0005 | 4931465499 | 3.60 | 4.36 | |
| SPRING | ||||
| 0006 | 4931454321 | 5.40 | 6.53 | |
| SHOE REL.LEVER KIT | ||||
| 0007 | 4931466421 | 4.54 | 5.49 | |
| CONNECTOR | ||||
| 0008 | 4931436292 | 3.60 | 4.36 | |
| HEX WRENCH | ||||
| 0009 | 4931495829 | 3.00 | 3.63 | |
| SPRING | ||||
| 0010 | 4931495830 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0011 | 4931436686 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0012 | 4931454315 | 3.00 | 3.63 | |
| BUSHING | ||||
| 0013 | 4931495831 | 9.60 | 11.62 | |
| CAM | ||||
| 0014 | 4931495832 | 6.00 | 7.26 | |
| SCREW | ||||
| 0015 | 4931465139 | 3.00 | 3.63 | |
| BRACKET | ||||
| 0016 | 4931495833 | 3.00 | 3.63 | |
| WASHER | ||||
| 0026 | 4931495834 | 1.20 | 1.45 | |
| RETAINING PLATE | ||||
| 0027 | 4931495835 | 7.80 | 9.44 | |
| WASHER | ||||
| 0030 | 4931495836 | 1.20 | 1.45 | |
| SUPPORTING PLATE | ||||
| 0031 | 4931495837 | 14.30 | 17.30 | |
| LATCH PLATE | ||||
| 0032 | 4931495838 | 1.20 | 1.45 | |
| BALL BEARING | ||||
| 0036 | 4931495839 | 4.20 | 5.08 | |
| BALL BEARING | ||||
| 0042 | 4931495840 | 7.20 | 8.71 | |
| WASHER | ||||
| 0044 | 4931495841 | 1.80 | 2.18 | |
| HOLDING RING | ||||
| 0045 | 4931465917 | 3.00 | 3.63 | |
| SEAL | ||||
| 0047 | 4931495842 | 3.00 | 3.63 | |
| GASKET | ||||
| 0054 | 4931495843 | 1.20 | 1.45 | |
| CLAMPING PIECE | ||||
| 0056 | 4931495844 | 3.60 | 4.36 | |
| RUBBER | ||||
| 0057 | 4931495845 | 1.20 | 1.45 | |
| SPRING (2 needed) | ||||
| 0058 | 4931466431 | 2.28 | 2.76 | |
| CONNECTION WIRE | ||||
| 0059 | 4931495846 | 3.00 | 3.63 | |
| BRACKET | ||||
| 0060 | 4931495847 | 1.20 | 1.45 | |
| COVER | ||||
| 0061 | 4931495848 | 1.20 | 1.45 | |
| PROTECTING SHOE | ||||
| 0062 | 4931495849 | 3.00 | 3.63 | |
| GUIDE SHOE | ||||
| 0063 | 4931495850 | 3.60 | 4.36 | |
| RUBBER RING (2 needed) | ||||
| 0064 | 4931495851 | 3.00 | 3.63 | |
| PROTECTING SHOE | ||||
| 0065 | 4931495852 | 20.90 | 25.29 | |
| SCREW | ||||
| 0068 | 4931466424 | 3.00 | 3.63 | |
| TUBE | ||||
| 0072 | 4931495853 | 3.00 | 3.63 | |
| COVER | ||||
| 0074 | 4931466420 | 3.00 | 3.63 | |
| ANT-CHIPPING DEVICE | ||||
| 0075 | 4931431787 | 4.54 | 5.49 | |
| No information available, not orderable | ||||
| 0090 | 4931495854 | |||
| RATING PLATE | ||||
| 0091 | 4931495855 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 0092 | 4931495856 | |||
| ADJUSTER | ||||
| 0093 | 4931495857 | 13.20 | 15.97 | |
| BEARING NEEDLE | ||||
| 0094 | 4931496280 | 29.70 | 35.94 | |
| FRAME | ||||
| 0095 | 4931495858 | 56.10 | 67.88 | |
| ARMATURE | ||||
| 0096 | 4931495859 | 41.80 | 50.58 | |
| ELECTRONIC | ||||
| 0097 | 4931495860 | 145.75 | 176.36 | |
| SPINDLE KIT | ||||
| 0098 | 4931495861 | 48.40 | 58.56 | |
| BUTTON | ||||
| 0099 | 4931495862 | 10.80 | 13.07 | |
| HANDLE SET | ||||
| 0100 | 4931511540 | 49.50 | 59.90 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931495863 | 10.80 | 13.07 | |
