Here you will find all available parts and drawings of the 'Milwaukee 4000503239 ( M12FCS442-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

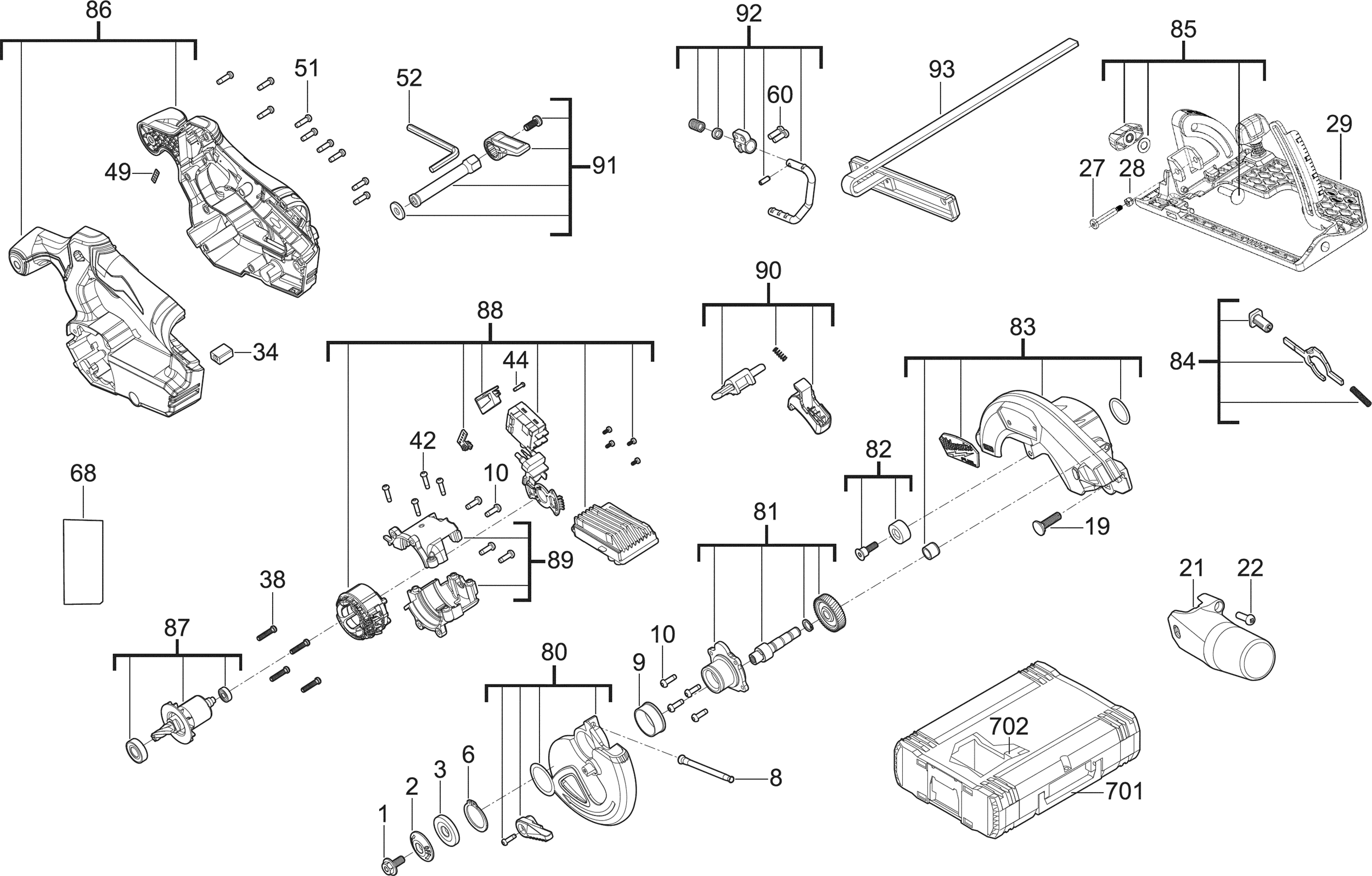

Technical drawing of model Milwaukee 4000503239 ( M12FCS442-0 )
Spare parts list of model Milwaukee 4000503239 ( M12FCS442-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FLANGE BOLT | ||||
| 0001 | 4931496875 | 3.00 | 3.63 | |
| FLANGE WASHER | ||||
| 0002 | 4931496876 | 3.00 | 3.63 | |
| FLANGE WASHER | ||||
| 0003 | 4931496877 | 3.00 | 3.63 | |
| RING | ||||
| 0006 | 4931436672 | 4.49 | 5.43 | |
| PIN | ||||
| 0008 | 4931496878 | 1.20 | 1.45 | |
| SLEEVE | ||||
| 0009 | 4931436676 | 4.49 | 5.43 | |
| SCREW (8 needed) | ||||
| 0010 | 4931496879 | 1.20 | 1.45 | |
| BOLT | ||||
| 0019 | 4931496880 | 3.00 | 3.63 | |
| DUST EXTRACTION | ||||
| 0021 | 4931496881 | 8.40 | 10.16 | |
| SCREW | ||||
| 0022 | 4931496882 | 1.20 | 1.45 | |
| BOLT | ||||
| 0027 | 4931496883 | 3.00 | 3.63 | |
| NUT | ||||
| 0028 | 4931496884 | 1.20 | 1.45 | |
| BASE PLATE | ||||
| 0029 | 4931506443 | 67.10 | 81.19 | |
| RUBBER BUFFER | ||||
| 0034 | 4931496886 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0038 | 4931496887 | 1.20 | 1.45 | |
| SCREW (35 needed) | ||||
| 0042 | 660570005 | 3.60 | 4.36 | |
| SCREW | ||||
| 0044 | 4931496888 | 1.20 | 1.45 | |
| LABEL | ||||
| 0049 | 4931496889 | 1.20 | 1.45 | |
| SCREW (9 needed) | ||||
| 0051 | 4931496890 | 1.80 | 2.18 | |
| KEY | ||||
| 0052 | 4931436125 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0060 | 4931496891 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0068 | 4931496892 | 1.20 | 1.45 | |
| BLADE HOUSING | ||||
| 0080 | 4931496893 | 19.80 | 23.96 | |
| GEAR KIT | ||||
| 0081 | 4931496894 | 52.80 | 63.89 | |
| RUBBER BUFFER | ||||
| 0082 | 4931496895 | 11.00 | 13.31 | |
| GEAR BOX HOUSING | ||||
| 0083 | 4931496896 | 67.10 | 81.19 | |
| SPINDLE LOCK | ||||
| 0084 | 4931496897 | 15.40 | 18.63 | |
| ADJUSTABLE SEGMENT | ||||
| 0085 | 4931496898 | 15.40 | 18.63 | |
| HOUSING | ||||
| 0086 | 4931496899 | 34.10 | 41.26 | |
| ROTOR | ||||
| 0087 | 4931496900 | 62.70 | 75.87 | |
| ELECTRONIC | ||||
| 0088 | 4931496901 | 115.50 | 139.76 | |
| MOTOR HOUSING | ||||
| 0089 | 4931496902 | 12.10 | 14.64 | |
| TRIGGER | ||||
| 0090 | 4931496903 | 15.40 | 18.63 | |
| CLAMPING LEVER | ||||
| 0091 | 4931496904 | 24.20 | 29.28 | |
| HOOK | ||||
| 0092 | 4931496905 | 23.65 | 28.62 | |
| GUIDE RAIL | ||||
| 0093 | 4931496906 | 9.60 | 11.62 | |
| HD Box 3 - 1pc | ||||
| 0701 | 4932453386 | 66.79 | 80.82 | |
| INSERT | ||||
| 0702 | 4931496907 | 38.50 | 46.58 | |
