Here you will find all available parts and drawings of the 'Milwaukee 4000503009 ( M12FCN18GS-0X )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

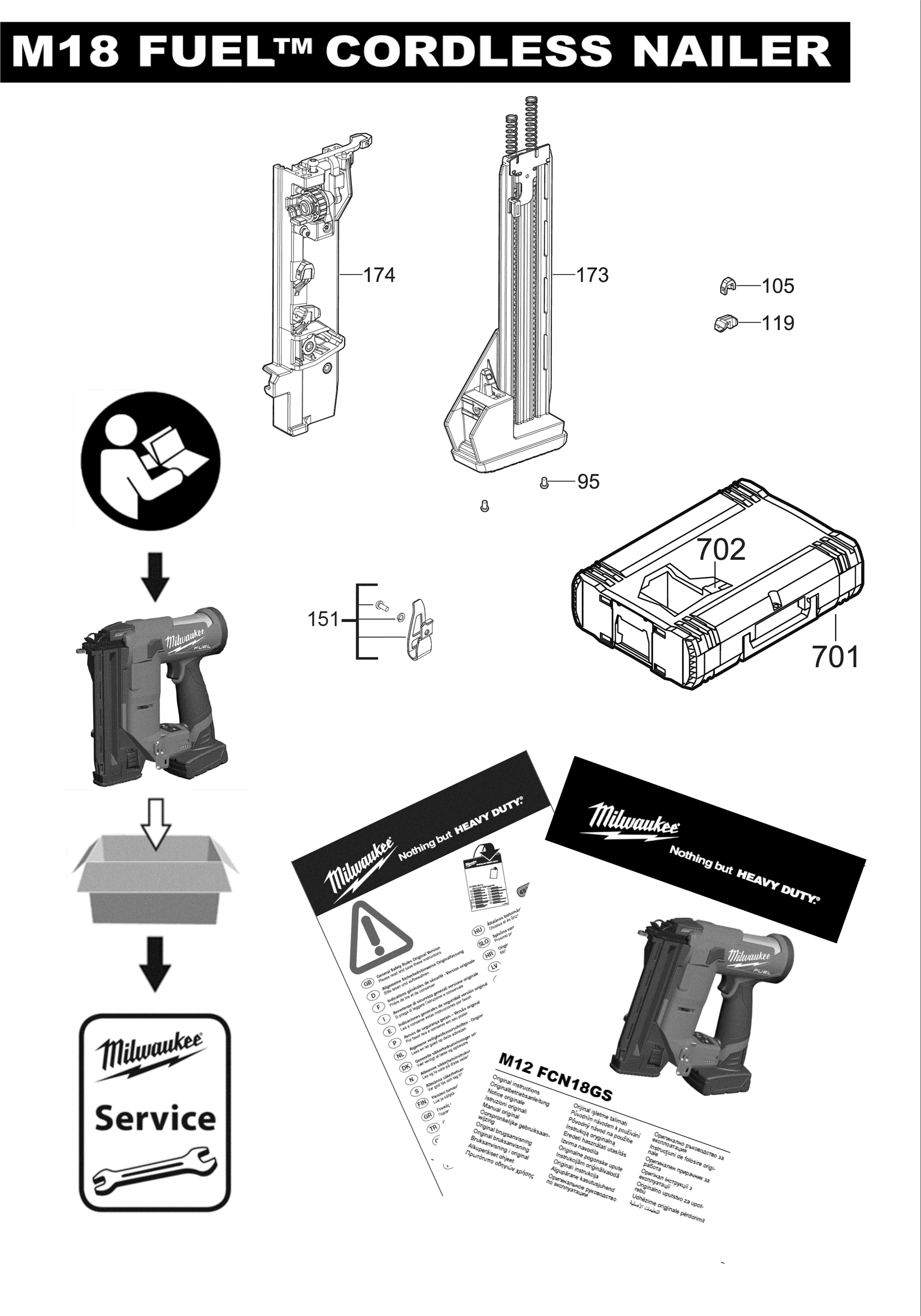

Technical drawing of model Milwaukee 4000503009 ( M12FCN18GS-0X )
Spare parts list of model Milwaukee 4000503009 ( M12FCN18GS-0X )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (2 needed) | ||||
| 0003 | 4931472311 | 1.80 | 2.18 | |
| LIFTER ASSEMBLY | ||||
| 0005 | 4931496512 | 36.85 | 44.59 | |
| SCREW (4 needed) | ||||
| 0007 | 4931436686 | 3.60 | 4.36 | |
| SCREW (6 needed) | ||||
| 0008 | 660230016 | 3.60 | 4.36 | |
| RUBBER STOP (2 needed) | ||||
| 0015 | 4931453340 | 4.80 | 5.81 | |
| BALL BEARING | ||||
| 0062 | 4931453971 | 9.00 | 10.89 | |
| BEARING | ||||
| 0065 | 4931496521 | 4.80 | 5.81 | |
| SCREW (3 needed) | ||||
| 0093 | 4931473367 | 3.60 | 4.36 | |
| SCREW | ||||
| 0095 | 4931479102 | 3.00 | 3.63 | |
| NOSEPIECE | ||||
| 0105 | 4931480255 | 6.60 | 7.99 | |
| NOSEPIECE | ||||
| 0119 | 4931480248 | 7.56 | 9.15 | |
| HANDLE COVER | ||||
| 0122 | 4931496522 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0150 | 4931496523 | 38.50 | 46.58 | |
| HOOK | ||||
| 0151 | 4931496524 | 8.40 | 10.16 | |
| ELECTRONIC | ||||
| 0152 | 4931496525 | 116.60 | 141.09 | |
| SWITCH BOARD | ||||
| 0153 | 4931496526 | 12.10 | 14.64 | |
| TRIGGER | ||||
| 0154 | 4931496527 | 9.60 | 11.62 | |
| RATING PLATE | ||||
| 0155 | 4931496528 | 1.80 | 2.18 | |
| PAWL | ||||
| 0156 | 4931496529 | 25.30 | 30.61 | |
| SOLENOID ASSEMBLY | ||||
| 0157 | 4931496530 | 34.10 | 41.26 | |
| LIFTER ASSEMBLY | ||||
| 0158 | 4931506569 | 18.15 | 21.96 | |
| ROTOR | ||||
| 0159 | 4931496532 | 39.60 | 47.92 | |
| GEAR BOX ASSY | ||||
| 0160 | 4931506570 | 31.90 | 38.60 | |
| No information available, not orderable | ||||
| 0161 | 4931496534 | |||
| No information available, not orderable | ||||
| 0170 | 4931496542 | |||
| PRE FILLED CANISTER | ||||
| 0171 | 4931496543 | 204.60 | 247.57 | |
| MOVEABLE MAGAZINE | ||||
| 0173 | 4931496544 | 23.10 | 27.95 | |
| STATIONARY MAGAZINE | ||||
| 0174 | 4931496545 | 33.00 | 39.93 | |
| HD Box 3 - 1pc | ||||
| 0701 | 4932453386 | 66.79 | 80.82 | |
| INSERT | ||||
| 0702 | 4931496546 | 27.50 | 33.28 | |
