Here you will find all available parts and drawings of the 'Milwaukee 4000448897 (M12CIW14-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

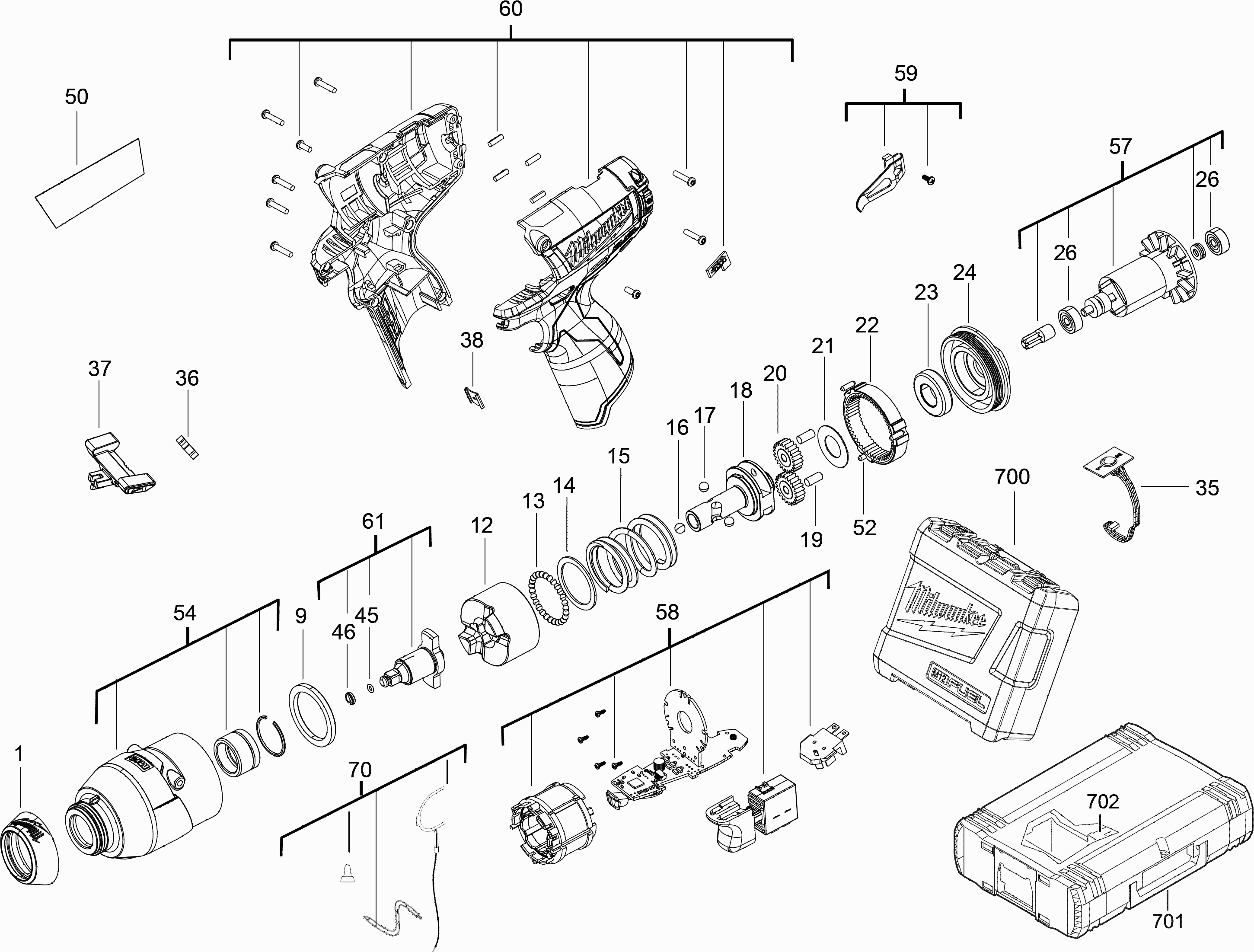

Technical drawing of model Milwaukee 4000448897 (M12CIW14-0)
Spare parts list of model Milwaukee 4000448897 (M12CIW14-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0001 | 4931435790 | |||
| RING | ||||
| 0009 | 4931435780 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0012 | 4931435791 | |||
| BALL (30 needed) | ||||
| 0013 | 4931440309 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0014 | 4931435777 | |||
| No information available, not orderable | ||||
| 0015 | 4931435785 | |||
| BALL (2 needed) | ||||
| 0016 | 4931453238 | 3.00 | 3.63 | |
| BALL (3 needed) | ||||
| 0016 | 670219001 | 1.80 | 2.18 | |
| BALL (31 needed) | ||||
| 0017 | 4931440453 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0018 | 4931435783 | |||
| No longer available, no replacement | ||||
| 0019 | 4931435774 | |||
| PLANET WHEEL (2 needed) | ||||
| 0020 | 4931435773 | 3.00 | 3.63 | |
| WASHER | ||||
| 0021 | 4931435772 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0022 | 4931435771 | |||
| BALL BEARING | ||||
| 0023 | 4931435770 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0024 | 4931435769 | |||
| BALL BEARING (2 needed) | ||||
| 0026 | 4931435768 | 4.54 | 5.49 | |
| SWITCH | ||||
| 0035 | 4931435767 | 9.00 | 10.89 | |
| SPRING PLATE (2 needed) | ||||
| 0036 | 4931452341 | 3.60 | 4.36 | |
| PUSH-BUTTON | ||||
| 0037 | 4931461955 | 4.49 | 5.43 | |
| CONNECTOR | ||||
| 0038 | 4931436292 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 0045 | 4931435789 | |||
| RING | ||||
| 0046 | 4931435788 | 7.20 | 8.71 | |
| STICKER | ||||
| 0050 | 4931448899 | 3.00 | 3.63 | |
| RUBBER BUFFER (3 needed) | ||||
| 0052 | 4931435764 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0054 | 4931435786 | 26.93 | 32.59 | |
| ARMATURE | ||||
| 0057 | 4931435762 | 52.27 | 63.25 | |
| ELECTRONIC SWITCH | ||||
| 0058 | 4931452449 | 97.20 | 117.61 | |
| CLAMP | ||||
| 0059 | 4931435760 | 5.40 | 6.53 | |
| HANDLE | ||||
| 0060 | 4931435759 | 20.59 | 24.91 | |
| DRIVE | ||||
| 0061 | 4931435784 | 33.26 | 40.24 | |
| WIRE STRAP | ||||
| 0070 | 4931461956 | 6.82 | 8.25 | |
| CARRYING CASE | ||||
| 0700 | 4931435779 | 36.43 | 44.08 | |
| CARRYING CASE WITH FOAM INSERT MET | ||||
| 0701 | 4932378986 | 52.64 | 63.69 | |
| INSERT | ||||
| 0702 | 4931436215 | 23.76 | 28.75 | |
