Here you will find all available parts and drawings of the 'Milwaukee 4000447137 (M12CIW12-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

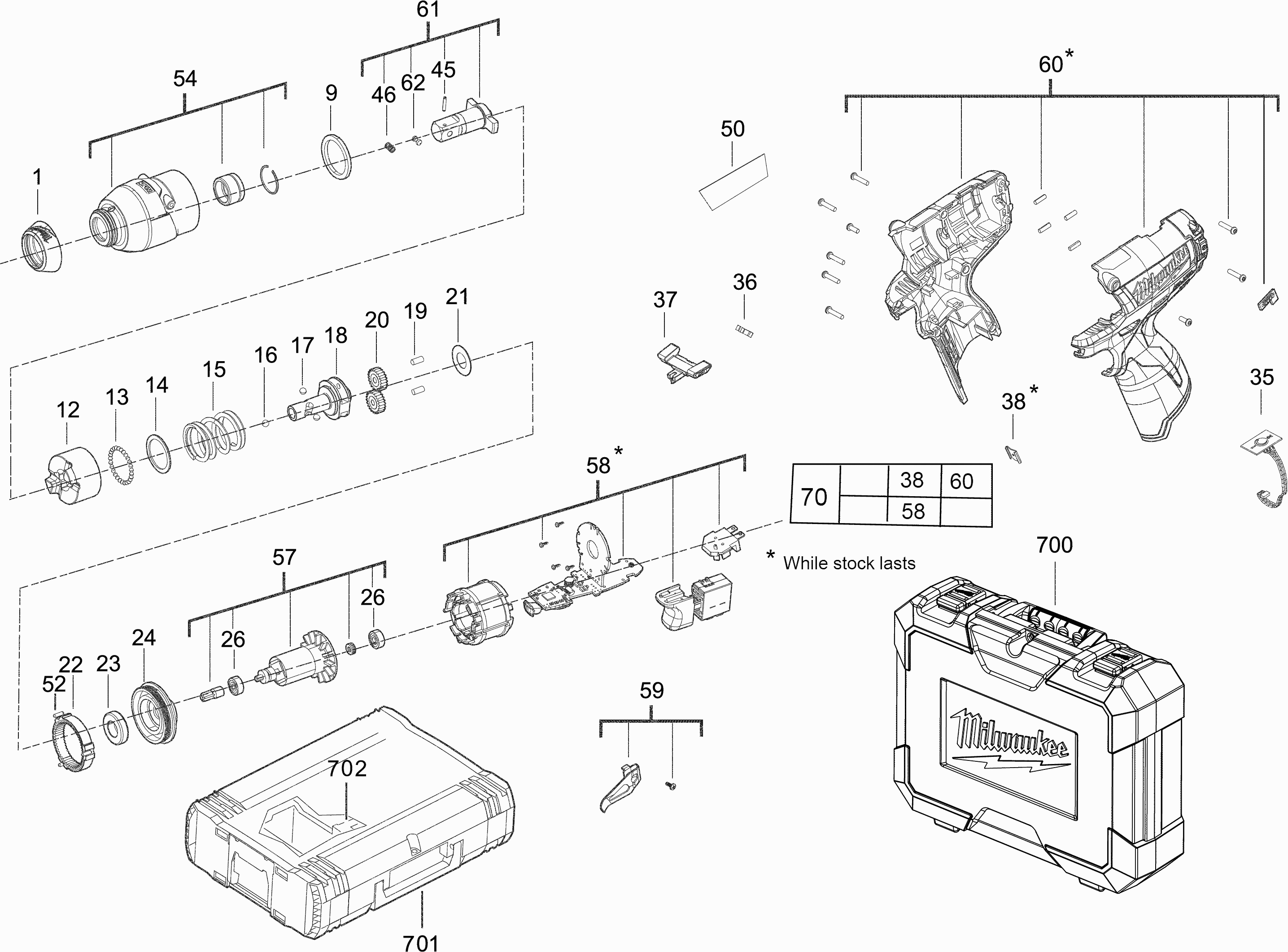

Technical drawing of model Milwaukee 4000447137 (M12CIW12-0)
Spare parts list of model Milwaukee 4000447137 (M12CIW12-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| M12 2,0 AH ACCU | ||||
| 0001 | 4932430064 | 73.90 | 89.42 | |
| RUBBER CAP | ||||
| 0001 | 4931435797 | 6.82 | 8.25 | |
| RING | ||||
| 0009 | 4931435780 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0012 | 4931435798 | |||
| BALL (30 needed) | ||||
| 0013 | 4931440309 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0014 | 4931435777 | |||
| SPRING | ||||
| 0015 | 4931435794 | 3.00 | 3.63 | |
| BALL (2 needed) | ||||
| 0016 | 4931453238 | 3.00 | 3.63 | |
| BALL (3 needed) | ||||
| 0016 | 670219001 | 1.80 | 2.18 | |
| BALL (31 needed) | ||||
| 0017 | 4931440453 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0018 | 4931435793 | |||
| No longer available, no replacement | ||||
| 0019 | 4931435774 | |||
| PLANET WHEEL (2 needed) | ||||
| 0020 | 4931435773 | 3.00 | 3.63 | |
| WASHER | ||||
| 0021 | 4931435772 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0022 | 4931435771 | |||
| BALL BEARING | ||||
| 0023 | 4931435770 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0024 | 4931435769 | |||
| BALL BEARING (2 needed) | ||||
| 0026 | 4931435768 | 4.54 | 5.49 | |
| SWITCH | ||||
| 0035 | 4931435767 | 9.00 | 10.89 | |
| SPRING PLATE (2 needed) | ||||
| 0036 | 4931452341 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 0037 | 4931435766 | |||
| JOINING PART | ||||
| 0038 | 631542001 | 4.54 | 5.49 | |
| PIN | ||||
| 0045 | 4931436072 | 3.00 | 3.63 | |
| SPRING | ||||
| 0046 | 4931436071 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0050 | 4931436214 | 3.00 | 3.63 | |
| RUBBER BUFFER (3 needed) | ||||
| 0052 | 4931435764 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0054 | 4931436213 | |||
| ARMATURE | ||||
| 0057 | 4931436212 | 52.27 | 63.25 | |
| ELECTRONIC SWITCH | ||||
| 0058 | 4931452449 | 97.20 | 117.61 | |
| WAISTBELT | ||||
| 0059 | 4931436210 | 8.09 | 9.79 | |
| HANDLE | ||||
| 0060 | 4931435759 | 20.59 | 24.91 | |
| IMPACT BOLT | ||||
| 0061 | 4931436208 | 42.77 | 51.75 | |
| LOCKING BOLT | ||||
| 0062 | 4931436207 | 5.40 | 6.53 | |
| HOUSING/SWITCH | ||||
| 0070 | 4931452434 | 158.40 | 191.66 | |
| CARRYING CASE | ||||
| 0700 | 4931435779 | 36.43 | 44.08 | |
| CARRYING CASE WITH FOAM INSERT MET | ||||
| 0701 | 4932378986 | 52.64 | 63.69 | |
| INSERT | ||||
| 0702 | 4931436215 | 23.76 | 28.75 | |
