Here you will find all available parts and drawings of the 'Milwaukee 4000417050 (KME-1602-VARILEX1.600)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

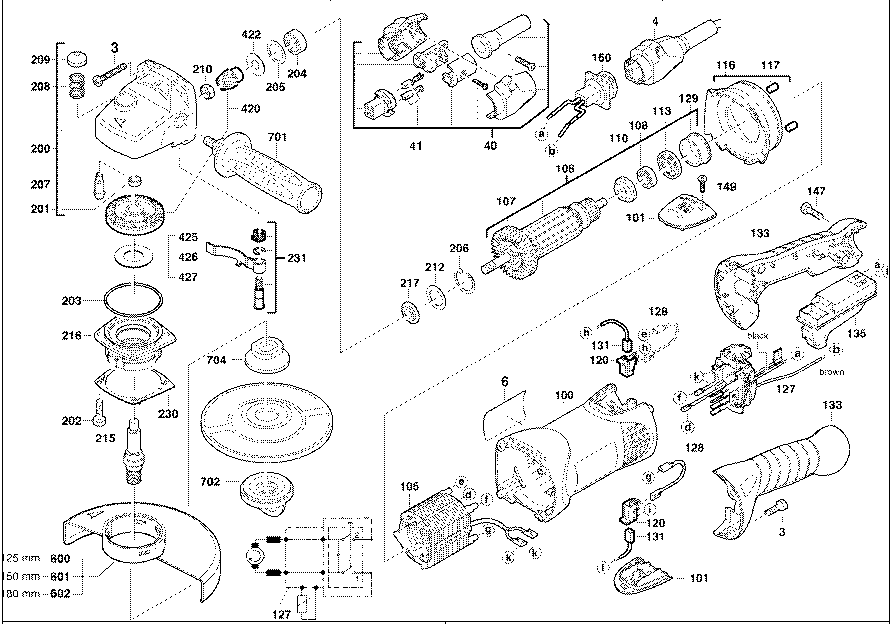

Technical drawing of model Milwaukee 4000417050 (KME-1602-VARILEX1.600)
Spare parts list of model Milwaukee 4000417050 (KME-1602-VARILEX1.600)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (8 needed) | ||||
| 0003 | 4931618253 | 3.00 | 3.63 | |
| CONNECTION CABLE IN2 | ||||
| 0004 | 4931624171 | 36.30 | 43.92 | |
| No information available, not orderable | ||||
| 0006 | 4931378607 | |||
| REPAIR KIT | ||||
| 0040 | 4931380758 | 44.29 | 53.59 | |
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| No information available, not orderable | ||||
| 0100 | 4931378464 | |||
| COVER (2 needed) | ||||
| 0101 | 4931378134 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426580 | 38.72 | 46.85 | |
| ARMATURE | ||||
| 0106 | 4931442661 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| MAGNETIC DISC | ||||
| 0113 | 4931426570 | 6.00 | 7.26 | |
| AIR DEFLECTOR RING | ||||
| 0114 | 4931378135 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 6.48 | 7.84 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 6.00 | 7.26 | |
| ELECTRIC ELEMENT | ||||
| 0127 | 4931403585 | 48.40 | 58.56 | |
| WIRE (2 needed) | ||||
| 0128 | 4931623738 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 6.48 | 7.84 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931369477 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 0133 | 4931378146 | |||
| SWITCH | ||||
| 0135 | 4931378983 | 17.42 | 21.08 | |
| SCREW (8 needed) | ||||
| 0147 | 4931618253 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0149 | 4931623591 | 3.00 | 3.63 | |
| INSERT | ||||
| 0160 | 4931364437 | 9.60 | 11.62 | |
| GEAR BOX | ||||
| 0200 | 4931407067 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0202 | 4931317532 | 3.00 | 3.63 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931254894 | 3.00 | 3.63 | |
| GROOVED BALL BEAR. | ||||
| 0204 | 4931368037 | 6.48 | 7.84 | |
| WASHER | ||||
| 0205 | 4931362085 | 3.00 | 3.63 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| NUT | ||||
| 0210 | 4931325518 | 5.40 | 6.53 | |
| DISC | ||||
| 0212 | 4931622761 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0215 | 4931409809 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 0216 | 4931407065 | |||
| WASHER | ||||
| 217 | 4931624287 | 3.00 | 3.63 | |
| SPRING PLATE | ||||
| 0230 | 4931426499 | 5.40 | 6.53 | |
| LOCKING PIECE | ||||
| 0231 | 4931407605 | 19.01 | 23.00 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931407029 | 68.11 | 82.41 | |
| WASHER | ||||
| 0422 | 4931362086 | 3.00 | 3.63 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0600 | 4931407139 | |||
| HOLDING GRIP | ||||
| 0701 | 4931369805 | 4.49 | 5.43 | |
| FIXTEC NUT M14 P1A | ||||
| 0702 | 4932358225 | 37.43 | 45.29 | |
| CLAMPING FLANGE WS115-230 P1 A/M | ||||
| 0704 | 4932449324 | 9.94 | 12.03 | |
