Here you will find all available parts and drawings of the 'Milwaukee 4000463086 (K1000SGB1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

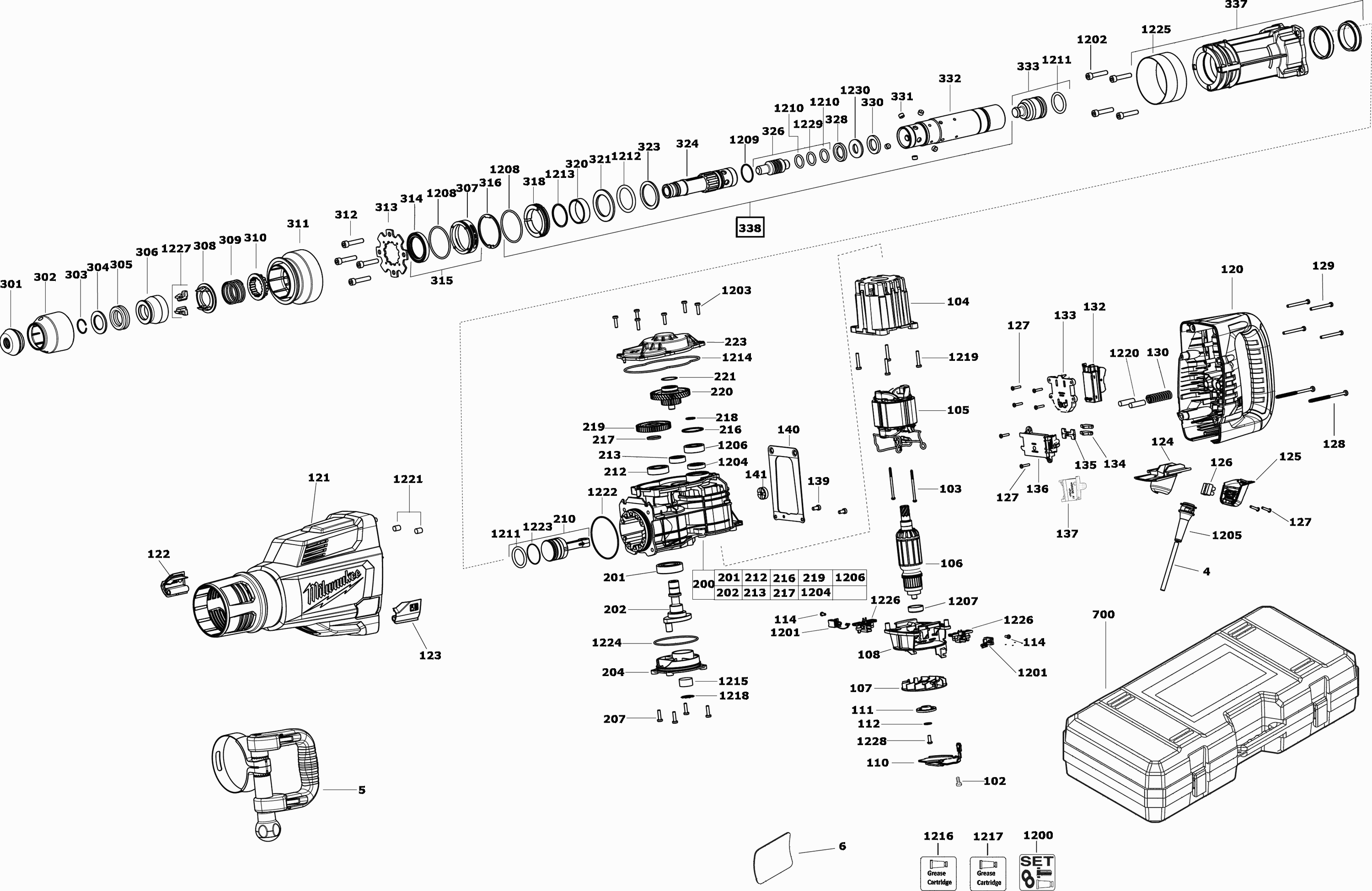

Technical drawing of model Milwaukee 4000463086 (K1000SGB1)
Spare parts list of model Milwaukee 4000463086 (K1000SGB1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624590 | 46.20 | 55.90 | |
| SPEED HANDLE | ||||
| 0005 | 4931455046 | 104.54 | 126.49 | |
| RATING PLATE | ||||
| 0006 | 4931463092 | 3.00 | 3.63 | |
| SCREW | ||||
| 0102 | 4931624537 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0103 | 4931339996 | 3.00 | 3.63 | |
| HOUSING | ||||
| 0104 | 4931455585 | 16.20 | 19.60 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931455965 | 87.12 | 105.42 | |
| ARMATURE | ||||
| 0106 | 4931455966 | 158.40 | 191.66 | |
| FAN | ||||
| 0107 | 4931455525 | 12.60 | 15.25 | |
| BRUSH MODULE | ||||
| 0108 | 4931455064 | 12.60 | 15.25 | |
| HOLDER | ||||
| 0110 | 4931463938 | 8.40 | 10.16 | |
| MAGNET.DISC FASTEN. | ||||
| 0111 | 4931487401 | 11.00 | 13.31 | |
| WASHER (2 needed) | ||||
| 0112 | 4931455939 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0114 | 4931624538 | 3.00 | 3.63 | |
| HANDLE | ||||
| 0120 | 4931455576 | 96.62 | 116.91 | |
| HOUSING SET ASSY | ||||
| 0121 | 4931455509 | 129.89 | 157.17 | |
| SERVICING LID | ||||
| 0122 | 4931455959 | 4.49 | 5.43 | |
| SERVICING LID | ||||
| 0123 | 4931455958 | 4.49 | 5.43 | |
| GUIDE PIECE | ||||
| 0124 | 4931455934 | 7.92 | 9.58 | |
| HOUSING COVER | ||||
| 0125 | 4931455997 | 5.40 | 6.53 | |
| TERMINAL STRIP | ||||
| 0126 | 4931463903 | 16.20 | 19.60 | |
| SCREW (8 needed) | ||||
| 0127 | 4931618253 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0128 | 4931455992 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0129 | 4931468965 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0129 | 4931455929 | 1.80 | 2.18 | |
| PRESSURE SPRING | ||||
| 0130 | 4931463951 | 12.54 | 15.17 | |
| SWITCH | ||||
| 0132 | 4931455009 | 39.60 | 47.92 | |
| SWITCH RETAINER | ||||
| 0133 | 4931455526 | 5.40 | 6.53 | |
| LIGHT PIPE (2 needed) | ||||
| 0134 | 4931398114 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0135 | 4931455937 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0136 | 4931455985 | 95.04 | 115.00 | |
| SLIDING SWITCH | ||||
| 0137 | 4931476531 | 5.76 | 6.97 | |
| SCREW (2 needed) | ||||
| 0139 | 4931455938 | 3.00 | 3.63 | |
| SPRING | ||||
| 0140 | 4931455512 | 14.40 | 17.42 | |
| SPRING | ||||
| 0141 | 4931455587 | 3.60 | 4.36 | |
| GEAR BOX ASSY | ||||
| 0200 | 4931455942 | 261.36 | 316.25 | |
| GROOV. BALL BEARING | ||||
| 0201 | 4931455896 | 16.20 | 19.60 | |
| CRANK ASSEMBLY | ||||
| 0202 | 4931455039 | 107.71 | 130.33 | |
| COVER | ||||
| 0204 | 4931455081 | 10.80 | 13.07 | |
| SCREW (3 needed) | ||||
| 0207 | 4931624541 | 3.00 | 3.63 | |
| PISTON | ||||
| 0210 | 4931455038 | 26.93 | 32.59 | |
| GROOV. BALL BEARING | ||||
| 0212 | 4931455897 | 12.60 | 15.25 | |
| GROOV. BALL BEARING | ||||
| 0213 | 4931455895 | 7.20 | 8.71 | |
| PROTECTION WASHER | ||||
| 0216 | 4931455928 | 3.00 | 3.63 | |
| SPACER | ||||
| 0217 | 4931455951 | 3.00 | 3.63 | |
| RING D471 17X1 | ||||
| 0218 | 4931605204 | 3.00 | 3.63 | |
| SPROCKET | ||||
| 0219 | 4931455522 | 28.51 | 34.50 | |
| GEAR | ||||
| 0220 | 4931455530 | 99.79 | 120.75 | |
| DISC 31,7X26,5X0,4 | ||||
| 0221 | 4931881678 | 3.00 | 3.63 | |
| GEAR BOX COVER | ||||
| 0223 | 4931455892 | 31.68 | 38.33 | |
| END COVER CAP | ||||
| 0301 | 9170350243 | 6.48 | 7.84 | |
| SLEEVE | ||||
| 0302 | 4931463983 | 8.40 | 10.16 | |
| SPRING RING | ||||
| 0303 | 9170319040 | 3.00 | 3.63 | |
| DAMPER | ||||
| 0304 | 4931409820 | 13.92 | 16.84 | |
| DAMPING RING | ||||
| 0305 | 4931463968 | 9.00 | 10.89 | |
| INTERLOCK SLEAVE | ||||
| 0306 | 4931463978 | 26.62 | 32.21 | |
| SEAL RETAINER | ||||
| 0307 | 4931455022 | 4.32 | 5.23 | |
| INTERLOCK PLATE | ||||
| 0308 | 4931375770 | 22.18 | 26.84 | |
| PRESSURE SPRING | ||||
| 0309 | 4931463917 | 5.40 | 6.53 | |
| SET COLLAR | ||||
| 0310 | 4931455021 | 9.91 | 11.99 | |
| INTERLOCK SLEAVE | ||||
| 0311 | 4931455020 | 12.60 | 15.25 | |
| SCREW (4 needed) | ||||
| 0312 | 4931624234 | 3.00 | 3.63 | |
| LOCKING PLATE | ||||
| 0313 | 4931455023 | 7.20 | 8.71 | |
| SEAL RING | ||||
| 0314 | 4931468729 | 39.60 | 47.92 | |
| SEAL RETAINER | ||||
| 0315 | 4931455025 | 16.20 | 19.60 | |
| RETAINING RING | ||||
| 0316 | 4931624235 | 6.48 | 7.84 | |
| THRUST COLLAR | ||||
| 0318 | 4931375420 | 9.00 | 10.89 | |
| BALL RACE | ||||
| 0320 | 4931463954 | 5.40 | 6.53 | |
| WASHER | ||||
| 0321 | 4931468791 | 10.80 | 13.07 | |
| ATTACHMENT RING | ||||
| 0323 | 4931375416 | 5.40 | 6.53 | |
| DRIVER | ||||
| 0324 | 4931463977 | 106.70 | 129.11 | |
| SNAP DIE | ||||
| 0326 | 4931455017 | 49.10 | 59.41 | |
| THRUST COLLAR | ||||
| 0328 | 4931375411 | 9.36 | 11.33 | |
| ATTACHMENT RING | ||||
| 0330 | 4931409791 | 6.31 | 7.64 | |
| DRIVER (5 needed) | ||||
| 0331 | 4931463952 | 3.00 | 3.63 | |
| SPINDLE SLEEVE | ||||
| 0332 | 4931463953 | 138.55 | 167.65 | |
| PERCUSSION BODY | ||||
| 0333 | 4931455028 | 64.94 | 78.58 | |
| GEAR BOX ASSY | ||||
| 0337 | 4931455945 | 139.39 | 168.66 | |
| SPINDLE | ||||
| 0338 | 4931455535 | 473.62 | 573.08 | |
| CARRYING CASE | ||||
| 0700 | 4931463094 | 213.84 | 258.75 | |
| MAINTENANCE SET | ||||
| 1200 | 4931468441 | 207.50 | 251.08 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931468442 | 39.60 | 47.92 | |
| SCREW (4 needed) | ||||
| 1202 | 4931624234 | 3.00 | 3.63 | |
| SCREW (3 needed) | ||||
| 1203 | 4931624541 | 3.00 | 3.63 | |
| PISTONRING | ||||
| 1204 | 4931455927 | 4.49 | 5.43 | |
| PROTECTING COVER | ||||
| 1205 | 4931392174 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 1206 | 4931455898 | 10.80 | 13.07 | |
| RUBBER SLEEVE | ||||
| 1207 | 4931455066 | 3.00 | 3.63 | |
| SEAL RING N874701 28X5 (2 needed) | ||||
| 1208 | 4931624156 | 5.40 | 6.53 | |
| SEAL RING N874701 28X5 | ||||
| 1209 | 4931624161 | 5.40 | 6.53 | |
| SEAL RING N874701 28X5 (2 needed) | ||||
| 1210 | 4931624155 | 5.40 | 6.53 | |
| PISTONRING (2 needed) | ||||
| 1211 | 4931455510 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1212 | 4931463914 | 10.80 | 13.07 | |
| SPRING RING N874268 SW 20 | ||||
| 1213 | 4931624153 | 5.40 | 6.53 | |
| SEAL | ||||
| 1214 | 4931455539 | 6.31 | 7.64 | |
| FELT | ||||
| 1215 | 4931455541 | 3.00 | 3.63 | |
| GREASE TUBE | ||||
| 1216 | 4931432782 | 14.40 | 17.42 | |
| GREASE (2 needed) | ||||
| 1217 | 4931455865 | 23.76 | 28.75 | |
| RING | ||||
| 1218 | 4931455961 | 3.00 | 3.63 | |
| SCREW D 912 AM 5X50 (4 needed) | ||||
| 1219 | 4931624075 | 3.00 | 3.63 | |
| DAMPING ELEMENT (2 needed) | ||||
| 1220 | 4931455542 | 3.00 | 3.63 | |
| DAMPING ELEMENT (2 needed) | ||||
| 1221 | 4931455932 | 3.00 | 3.63 | |
| PISTONRING | ||||
| 1222 | 4931468797 | 3.00 | 3.63 | |
| SEAL RING | ||||
| 1223 | 4931455979 | 3.00 | 3.63 | |
| PISTONRING | ||||
| 1224 | 4931455917 | 3.00 | 3.63 | |
| GUIDE SLEEVE | ||||
| 1225 | 4931463940 | 6.48 | 7.84 | |
| BRUSH HOLDER (2 needed) | ||||
| 1226 | 4931463990 | 140.98 | 170.59 | |
| INTERLOCK ELEMENT (2 needed) | ||||
| 1227 | 4931468789 | 13.20 | 15.97 | |
| INTERLOCK ELEMENT (2 needed) | ||||
| 1227 | 4931468793 | 10.80 | 13.07 | |
| SCREW | ||||
| 1228 | 4931455991 | 4.49 | 5.43 | |
| SEAL RING | ||||
| 1229 | 4931468790 | 7.20 | 8.71 | |
| BACK-PRESSURE RING | ||||
| 1230 | 4931375412 | 5.40 | 6.53 | |
