Here you will find all available parts and drawings of the 'Milwaukee 4000383636 ( JSPE90X )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

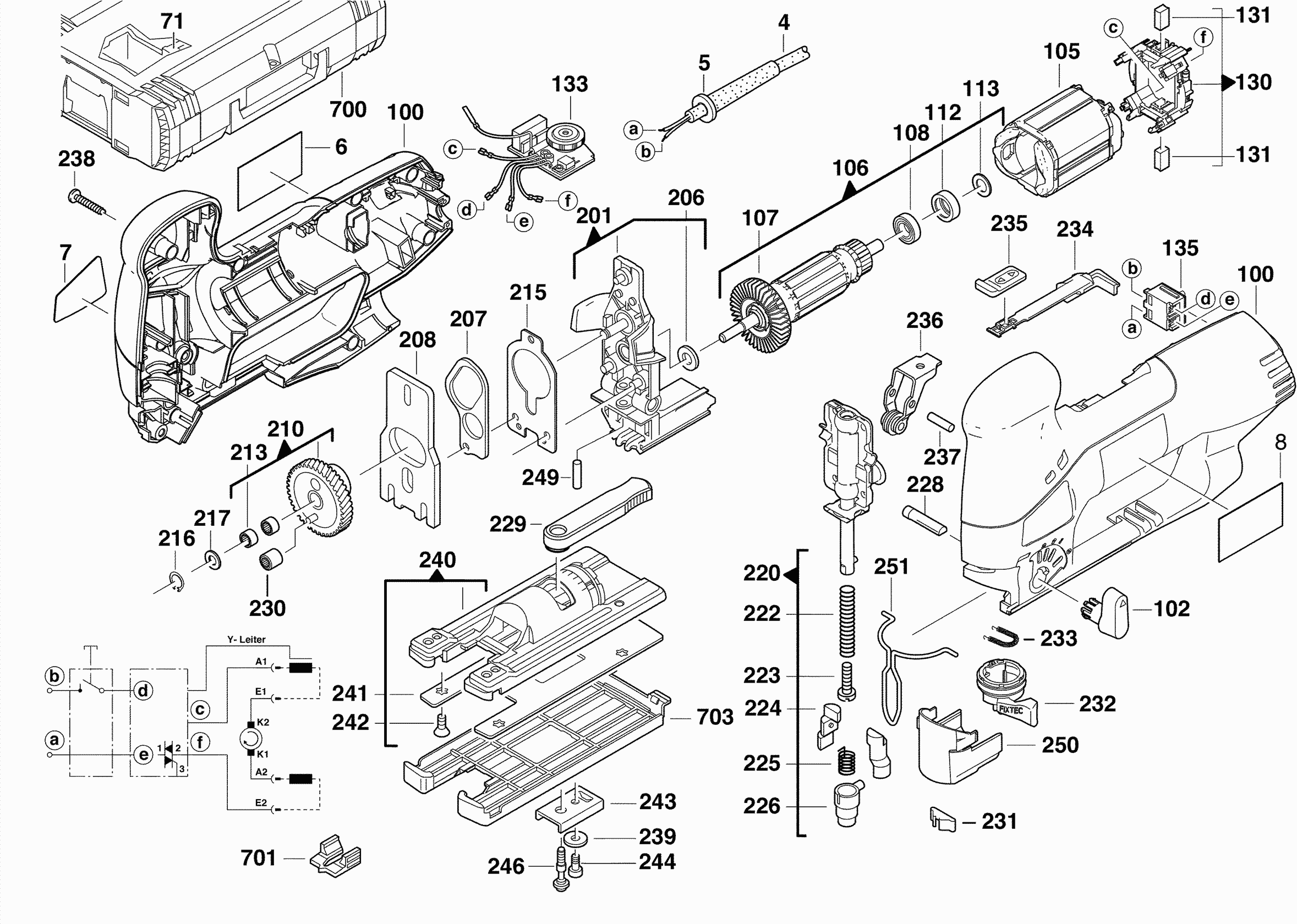

Technical drawing of model Milwaukee 4000383636 ( JSPE90X )
Spare parts list of model Milwaukee 4000383636 ( JSPE90X )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624175 | 23.76 | 28.75 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| TYPE PLATE | ||||
| 0008 | 4931378806 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0071 | 4931378501 | |||
| BODY | ||||
| 0100 | 4931381043 | 19.01 | 23.00 | |
| SWITCH HANDLE | ||||
| 0102 | 4931378812 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426480 | 23.76 | 28.75 | |
| No longer available, no replacement | ||||
| 0106 | 4931357540 | |||
| FAN | ||||
| 0107 | 4931330633 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| RUBBER SLEEVE | ||||
| 0112 | 4931306351 | 1.80 | 2.18 | |
| WASHER | ||||
| 0113 | 4931621834 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0131 | 4931392598 | |||
| No longer available, no replacement | ||||
| 0133 | 4931357737 | |||
| SWITCH | ||||
| 0135 | 4931385824 | 7.20 | 8.71 | |
| PILLOW BLOCK | ||||
| 0201 | 4931357893 | 49.10 | 59.41 | |
| FELT WASHER | ||||
| 0206 | 4931357000 | 1.80 | 2.18 | |
| ROCKER BAR | ||||
| 0207 | 4931357522 | 5.40 | 6.53 | |
| BALANCE WEIGHT | ||||
| 0208 | 4931381109 | 9.00 | 10.89 | |
| GEAR | ||||
| 0210 | 4931357515 | 19.01 | 23.00 | |
| NEEDLE BEARING (2 needed) | ||||
| 0213 | 4931219422 | 1.80 | 2.18 | |
| SHIM | ||||
| 0215 | 4931357577 | 5.40 | 6.53 | |
| RING D471 6X0,7 | ||||
| 0216 | 4931605092 | 5.40 | 6.53 | |
| DISC N874237 6,1X12X0,5 | ||||
| 0217 | 4931621830 | 5.40 | 6.53 | |
| RAM | ||||
| 0220 | 4931357525 | 36.43 | 44.08 | |
| SCREW | ||||
| 0223 | 4931623102 | 1.80 | 2.18 | |
| CENTERING JAW (2 needed) | ||||
| 0224 | 4931330303 | 4.49 | 5.43 | |
| COLLET | ||||
| 0226 | 4931330494 | 10.80 | 13.07 | |
| INDEXING BOLT | ||||
| 0228 | 4931381103 | 5.40 | 6.53 | |
| TENSION LEVER | ||||
| 0229 | 4931381610 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0230 | 4931361376 | 5.40 | 6.53 | |
| PLATE SPRING | ||||
| 0231 | 4931330474 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0232 | 4931378813 | 5.40 | 6.53 | |
| SPRING | ||||
| 0233 | 4931330437 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0234 | 4931357489 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0235 | 4931381298 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0236 | 4931468106 | 3.60 | 4.36 | |
| PIN D 6325 4M6X28 | ||||
| 0237 | 4931621888 | 5.40 | 6.53 | |
| SCREW (8 needed) | ||||
| 0238 | 4931618253 | 1.80 | 2.18 | |
| DISC | ||||
| 0239 | 4931622131 | 5.40 | 6.53 | |
| GROUND PLATE | ||||
| 0240 | 4931412827 | 20.59 | 24.91 | |
| GROUND PLATE | ||||
| 0241 | 4931412827 | 20.59 | 24.91 | |
| SCREW (4 needed) | ||||
| 0242 | 4931310396 | 1.80 | 2.18 | |
| PRESSURE ELEMENT | ||||
| 0243 | 4931357588 | 5.40 | 6.53 | |
| SCREW | ||||
| 0244 | 4931300699 | 1.80 | 2.18 | |
| SCREW | ||||
| 0246 | 4931357598 | 3.60 | 4.36 | |
| CYLINDER PIN | ||||
| 0249 | 4931357583 | 1.80 | 2.18 | |
| DUST CAP | ||||
| 0250 | 4931357552 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0251 | 4931357584 | 3.60 | 4.36 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| ANT-CHIPPING DEVICE (3 PCS) P1 A/M | ||||
| 0701 | 4931449321 | 9.50 | 11.50 | |
| Glijschoen voor materialen met een kwetsbaar opper | ||||
| 0703 | 4932430356 | 11.00 | 13.31 | |
