Here you will find all available parts and drawings of the 'Milwaukee 4000384547 (IPWE520RQ)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

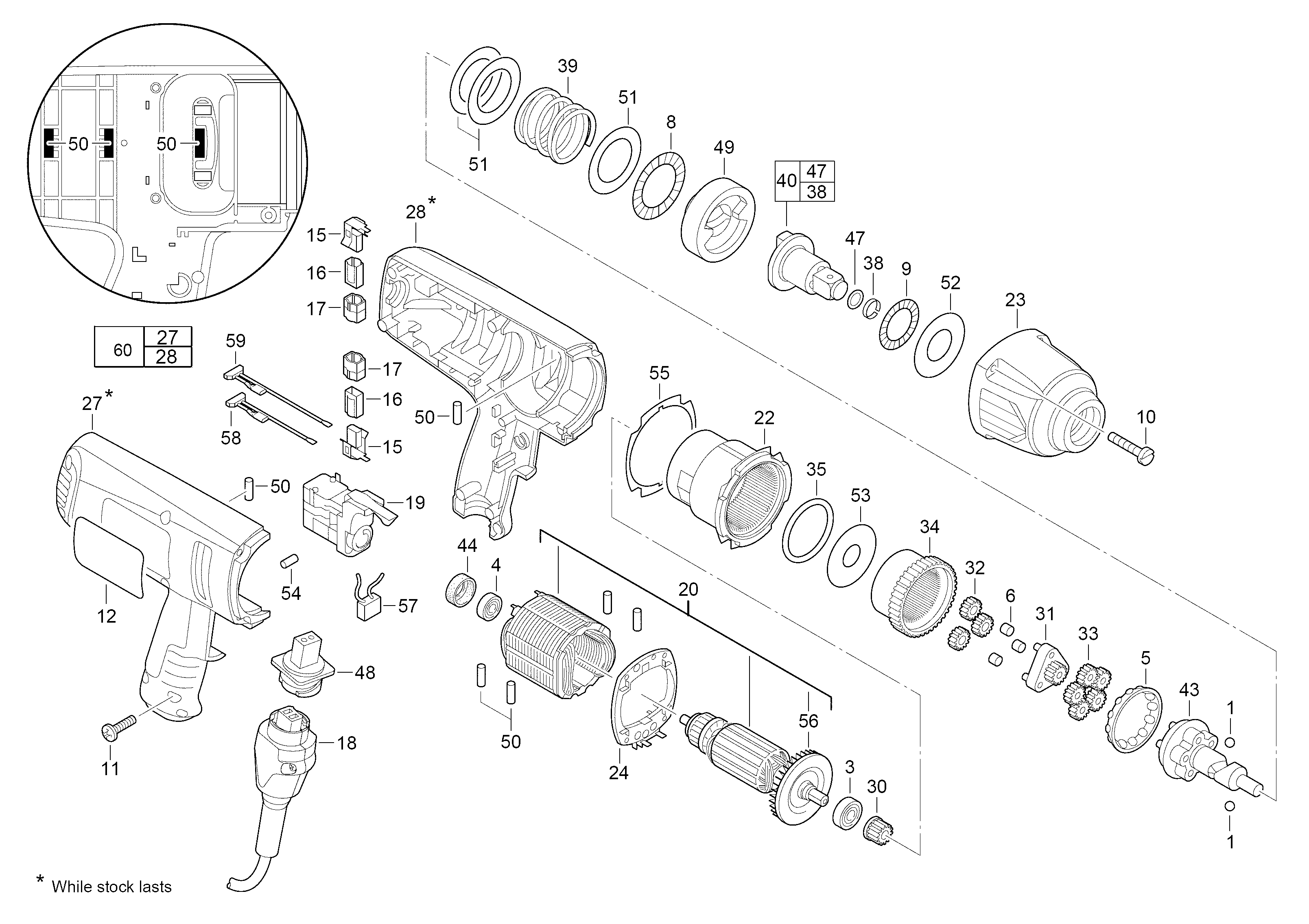

Technical drawing of model Milwaukee 4000384547 (IPWE520RQ)
Spare parts list of model Milwaukee 4000384547 (IPWE520RQ)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL (2 needed) | ||||
| 0001 | 02020250 | 3.00 | 3.63 | |
| BALL (2 needed) | ||||
| 0001 | 2020250 | 1.00 | 1.21 | |
| Ball bearing | ||||
| 0003 | 02040852 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0003 | 2040852 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0004 | 02040645 | 12.44 | 15.05 | |
| BALL BEARING | ||||
| 0004 | 2040645 | 5.00 | 6.05 | |
| BEARING | ||||
| 0005 | 02400050 | 10.37 | 12.55 | |
| BEARING | ||||
| 0005 | 2400050 | 5.00 | 6.05 | |
| BEARING (3 needed) | ||||
| 0006 | 02503250 | 13.82 | 16.72 | |
| BEARING (3 needed) | ||||
| 0006 | 2503250 | 8.00 | 9.68 | |
| Ball Bearing | ||||
| 0008 | 02800200 | 16.43 | 19.88 | |
| BEARING | ||||
| 0008 | 2800200 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0009 | 680658012 | 12.60 | 15.25 | |
| SCREW (4 needed) | ||||
| 0010 | 05885988 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0010 | 5885988 | 1.00 | 1.21 | |
| SCREW | ||||
| 0011 | 06956290 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0011 | 6956290 | 1.00 | 1.21 | |
| NAME PLATE | ||||
| 0012 | 12909076 | 1.80 | 2.18 | |
| CARBON BRUSH (2 needed) | ||||
| 0015 | 22180040 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0016 | 4931441799 | |||
| No longer available, no replacement | ||||
| 0017 | 4931441799 | |||
| CONNECTION CABLE AUS NZ | ||||
| 0018 | 4931624342 | 47.80 | 57.84 | |
| CONNECTION CABLE GB2 | ||||
| 0018 | 4931624184 | 39.60 | 47.92 | |
| CONNECTION CABLE IN2 | ||||
| 0018 | 4931624171 | 36.30 | 43.92 | |
| CONNECTION CABLE Swiss | ||||
| 0018 | 4931624181 | 25.34 | 30.66 | |
| SWITCH | ||||
| 0019 | 23662775 | 63.36 | 76.67 | |
| MOTOR ASSEMBLY | ||||
| 0020 | 4931441579 | 118.80 | 143.75 | |
| No longer available, no replacement | ||||
| 0022 | 28140175 | |||
| HOUSING | ||||
| 0023 | 14380100 | 50.69 | 61.33 | |
| No longer available, no replacement | ||||
| 0024 | 31152045 | |||
| HANDLE RIGHT | ||||
| 0027 | 31442176 | 10.80 | 13.07 | |
| HANDLE LEFT | ||||
| 0028 | 31442181 | 12.60 | 15.25 | |
| GEAR | ||||
| 0030 | 32600150 | 3.60 | 4.36 | |
| GEAR | ||||
| 0031 | 32600175 | 7.20 | 8.71 | |
| PLANET GEAR (3 needed) | ||||
| 0032 | 32620200 | 3.00 | 3.63 | |
| PLANET GEAR (5 needed) | ||||
| 0033 | 32620215 | 3.00 | 3.63 | |
| GEAR | ||||
| 0034 | 32650005 | 12.65 | 15.31 | |
| No longer available, no replacement | ||||
| 0035 | 34400070 | |||
| RING | ||||
| 0038 | 44904540 | 5.40 | 6.53 | |
| SPRING | ||||
| 0039 | 40500241 | 6.00 | 7.26 | |
| ANVIL | ||||
| 0040 | 14730156 | 36.43 | 44.08 | |
| SHAFT | ||||
| 0043 | 14730300 | 35.20 | 42.59 | |
| RUBBER SLEEVE | ||||
| 0044 | 42960015 | 3.00 | 3.63 | |
| O-RING | ||||
| 0047 | 34401210 | 3.00 | 3.63 | |
| PLUG | ||||
| 0048 | 22569072 | 9.00 | 10.89 | |
| RAM | ||||
| 0049 | 44820210 | 40.70 | 49.25 | |
| HOLDING-DOWN DEVICE | ||||
| 0050 | 45300025 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0051 | 45880535 | |||
| WASHER | ||||
| 0052 | 45881575 | 3.00 | 3.63 | |
| WASHER | ||||
| 0053 | 45883250 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0054 | 45300021 | |||
| GASKET | ||||
| 0055 | 43440991 | 5.40 | 6.53 | |
| FAN | ||||
| 0056 | 22840375 | 4.49 | 5.43 | |
| CAPACITOR | ||||
| 0057 | 22330550 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0058 | 23940275 | |||
| No longer available, no replacement | ||||
| 0059 | 23940276 | |||
| HANDLE SHELLS | ||||
| 0060 | 4931453959 | 28.51 | 34.50 | |
