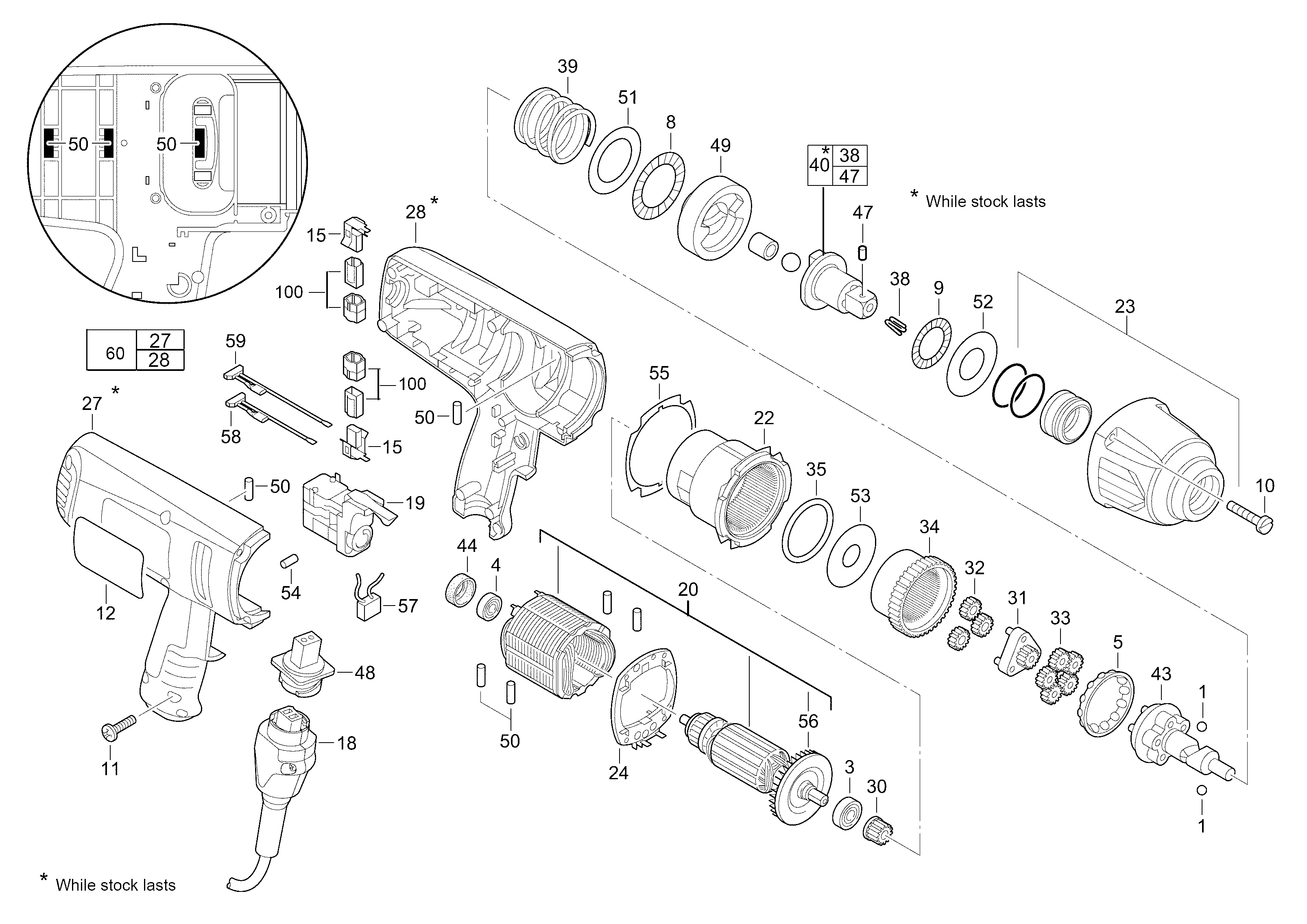

Technical drawing of model Milwaukee 4000384549 (IPWE400RQ)
Spare parts list of model Milwaukee 4000384549 (IPWE400RQ)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL (2 needed) | ||||
| 0001 | 02020250 | 3.00 | 3.63 | |
| BALL (2 needed) | ||||
| 0001 | 2020250 | 1.00 | 1.21 | |
| Ball bearing | ||||
| 0003 | 02040852 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0003 | 2040852 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0004 | 02040645 | 12.44 | 15.05 | |
| BALL BEARING | ||||
| 0004 | 2040645 | 5.00 | 6.05 | |
| BEARING | ||||
| 0005 | 02400050 | 10.37 | 12.55 | |
| BEARING | ||||
| 0005 | 2400050 | 5.00 | 6.05 | |
| Ball Bearing | ||||
| 0008 | 02800200 | 16.43 | 19.88 | |
| BEARING | ||||
| 0008 | 2800200 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0009 | 680658012 | 12.60 | 15.25 | |
| SCREW (4 needed) | ||||
| 0010 | 05885988 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0010 | 5885988 | 1.00 | 1.21 | |
| SCREW | ||||
| 0011 | 06956290 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0011 | 6956290 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 0012 | 12209074 | |||
| CARBON BRUSH (2 needed) | ||||
| 0015 | 22180040 | 7.20 | 8.71 | |
| CONNECTION CABLE QUIK-LOK 4 | ||||
| 0018 | 4932373502 | 38.57 | 46.67 | |
| SWITCH | ||||
| 0019 | 23662775 | 63.36 | 76.67 | |
| MOTOR ASSEMBLY | ||||
| 0020 | 4931441579 | 118.80 | 143.75 | |
| No longer available, no replacement | ||||
| 0022 | 28140175 | |||
| HOUSING | ||||
| 0023 | 14380100 | 50.69 | 61.33 | |
| No longer available, no replacement | ||||
| 0024 | 31152045 | |||
| HANDLE RIGHT | ||||
| 0027 | 31442176 | 10.80 | 13.07 | |
| HANDLE LEFT | ||||
| 0028 | 31442181 | 12.60 | 15.25 | |
| GEAR | ||||
| 0030 | 32600150 | 3.60 | 4.36 | |
| GEAR | ||||
| 0031 | 32600175 | 7.20 | 8.71 | |
| PLANET GEAR (5 needed) | ||||
| 0032 | 32620215 | 3.00 | 3.63 | |
| PLANET GEAR (5 needed) | ||||
| 0033 | 32620215 | 3.00 | 3.63 | |
| GEAR | ||||
| 0034 | 32650005 | 12.65 | 15.31 | |
| No longer available, no replacement | ||||
| 0035 | 34400070 | |||
| SPRING ELEMENT | ||||
| 0038 | 691326001 | 4.54 | 5.49 | |
| SPRING | ||||
| 0039 | 40500241 | 6.00 | 7.26 | |
| No longer available, no replacement | ||||
| 0040 | 14730165 | |||
| SHAFT | ||||
| 0043 | 14730300 | 35.20 | 42.59 | |
| RUBBER SLEEVE | ||||
| 0044 | 42960015 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0047 | 672448001 | |||
| PLUG | ||||
| 0048 | 22569072 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0049 | 44820205 | |||
| HOLDING-DOWN DEVICE | ||||
| 0050 | 45300025 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0051 | 45880535 | |||
| WASHER | ||||
| 0052 | 45881575 | 3.00 | 3.63 | |
| WASHER | ||||
| 0053 | 45883250 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0054 | 45300021 | |||
| GASKET | ||||
| 0055 | 43440991 | 5.40 | 6.53 | |
| FAN | ||||
| 0056 | 22840375 | 4.49 | 5.43 | |
| CAPACITOR | ||||
| 0057 | 22330550 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0058 | 23940275 | |||
| No longer available, no replacement | ||||
| 0059 | 23940276 | |||
| HANDLE SHELLS | ||||
| 0060 | 4931453959 | 28.51 | 34.50 | |
| No longer available, no replacement | ||||
| 0100 | 4931441799 | |||
