Here you will find all available parts and drawings of the 'Milwaukee 4000384494 (HDE13RQD)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

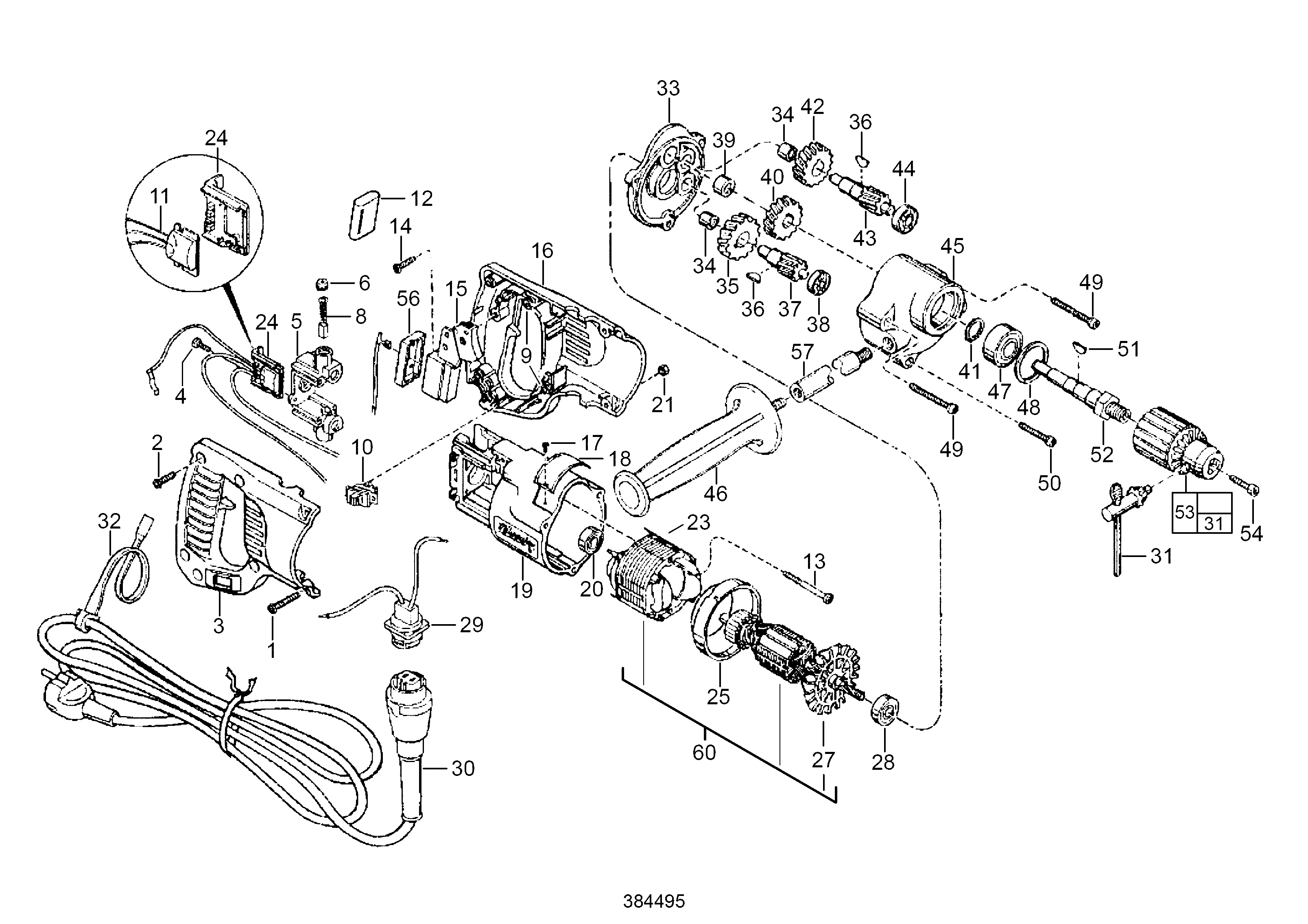

Technical drawing of model Milwaukee 4000384494 (HDE13RQD)
Spare parts list of model Milwaukee 4000384494 (HDE13RQD)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 0001 | 06822390 | 1.73 | 2.09 | |
| SCREW (2 needed) | ||||
| 0001 | 6822390 | 1.00 | 1.21 | |
| SCREW (12 needed) | ||||
| 0002 | 06827270 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0002 | 6827270 | 1.00 | 1.21 | |
| HANDLE LEFT | ||||
| 0003 | 31441666 | 17.11 | 20.70 | |
| SCREW | ||||
| 0004 | 06827240 | 1.73 | 2.09 | |
| SCREW (2 needed) | ||||
| 0004 | 6827240 | 1.00 | 1.21 | |
| BRUSH HOLDER | ||||
| 0005 | 4931494031 | 5.04 | 6.10 | |
| No longer available, no replacement | ||||
| 0006 | 23440190 | |||
| CARBON BRUSH (2 needed) | ||||
| 0008 | 22180915 | 15.29 | 18.50 | |
| No longer available, no replacement | ||||
| 0009 | 14461001 | |||
| No longer available, no replacement | ||||
| 0010 | 14200685 | |||
| ELECTRONIC REMOTE ELECTRONIC AS | ||||
| 0011 | 4931447814 | 39.60 | 47.92 | |
| No longer available, no replacement | ||||
| 0012 | 14200580 | |||
| SCREW (2 needed) | ||||
| 0013 | 6827410 | 1.00 | 1.21 | |
| SCREW (12 needed) | ||||
| 0014 | 06827270 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0014 | 6827270 | 1.00 | 1.21 | |
| SWITCH | ||||
| 0015 | 4931454349 | 52.80 | 63.89 | |
| RIGHT HANDLE HALF | ||||
| 0016 | 31441661 | 16.20 | 19.60 | |
| No information available, not orderable | ||||
| 0018 | 12151107 | |||
| HOUSING MOTOR SIDE | ||||
| 0019 | 31500020 | 10.80 | 13.07 | |
| BALL BEARING | ||||
| 0020 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0020 | 2040845 | 5.00 | 6.05 | |
| NUT | ||||
| 0021 | 06550835 | 4.32 | 5.23 | |
| NUT (6 needed) | ||||
| 0021 | 6550835 | 2.50 | 3.02 | |
| ELECTRIC FIELD | ||||
| 0023 | 290855004 | 58.70 | 71.03 | |
| No longer available, no replacement | ||||
| 0024 | 43720176 | |||
| AIR DEFLECTOR RING | ||||
| 0025 | 31050055 | 5.68 | 6.87 | |
| FAN | ||||
| 0027 | 22840531 | 6.60 | 7.99 | |
| Ball bearing | ||||
| 0028 | 02040911 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0028 | 2040911 | 5.00 | 6.05 | |
| No longer available, no replacement | ||||
| 0029 | 22560120 | |||
| CONNECTION CABLE IN2 | ||||
| 0030 | 4931624171 | 36.30 | 43.92 | |
| BOORKOPSLEUTEL K | ||||
| 0031 | 48663280 | 4.70 | 5.69 | |
| BEARING END PLATE | ||||
| 0033 | 28280611 | 17.42 | 21.08 | |
| NEEDLE BEARING | ||||
| 0034 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0034 | 2501640 | 5.00 | 6.05 | |
| No longer available, no replacement | ||||
| 0035 | 32401251 | |||
| KEY | ||||
| 0036 | 06420800 | 4.32 | 5.23 | |
| KEY | ||||
| 0036 | 6420800 | 2.50 | 3.02 | |
| SHAFT | ||||
| 0037 | 36662811 | 25.34 | 30.66 | |
| BALL BEARING | ||||
| 0038 | 02040640 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0038 | 2040640 | 5.00 | 6.05 | |
| NEEDLE BEARING | ||||
| 0039 | 02502440 | 12.10 | 14.64 | |
| NEEDLE BEARING | ||||
| 0039 | 2502440 | 7.00 | 8.47 | |
| SPINDLE GEAR | ||||
| 0040 | 32753470 | 19.01 | 23.00 | |
| SPINDLE GEAR | ||||
| 0040 | 4931494032 | 11.34 | 13.72 | |
| RING | ||||
| 0041 | 34601200 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0042 | 32752051 | |||
| No longer available, no replacement | ||||
| 0043 | 36669670 | |||
| BALL BEARING | ||||
| 0044 | 02040820 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0044 | 2040820 | 5.00 | 6.05 | |
| No longer available, no replacement | ||||
| 0045 | 28141922 | |||
| No longer available, no replacement | ||||
| 0046 | 43621265 | |||
| BALL BEARING | ||||
| 0047 | 02041536 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0047 | 2041536 | 5.00 | 6.05 | |
| RING | ||||
| 0048 | 34802500 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0049 | 02041536 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0049 | 2041536 | 5.00 | 6.05 | |
| KEY | ||||
| 0051 | 06422000 | 1.73 | 2.09 | |
| KEY | ||||
| 0051 | 6422000 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0052 | 38505475 | |||
| CHUCK Ch 2-13 1/2x20 P1M | ||||
| 0053 | 48661355 | 30.80 | 37.27 | |
| SCREW | ||||
| 0054 | 06753150 | 1.73 | 2.09 | |
| SCREW | ||||
| 0054 | 6753150 | 1.00 | 1.21 | |
| HANDLE SIDE HANDLE EXTENSIO | ||||
| 0057 | 43621170 | 17.11 | 20.70 | |
| MOTOR ASSEMBLY | ||||
| 0060 | 4931441959 | 95.04 | 115.00 | |
