Here you will find all available parts and drawings of the 'Milwaukee 4000431288 (HD28CS-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

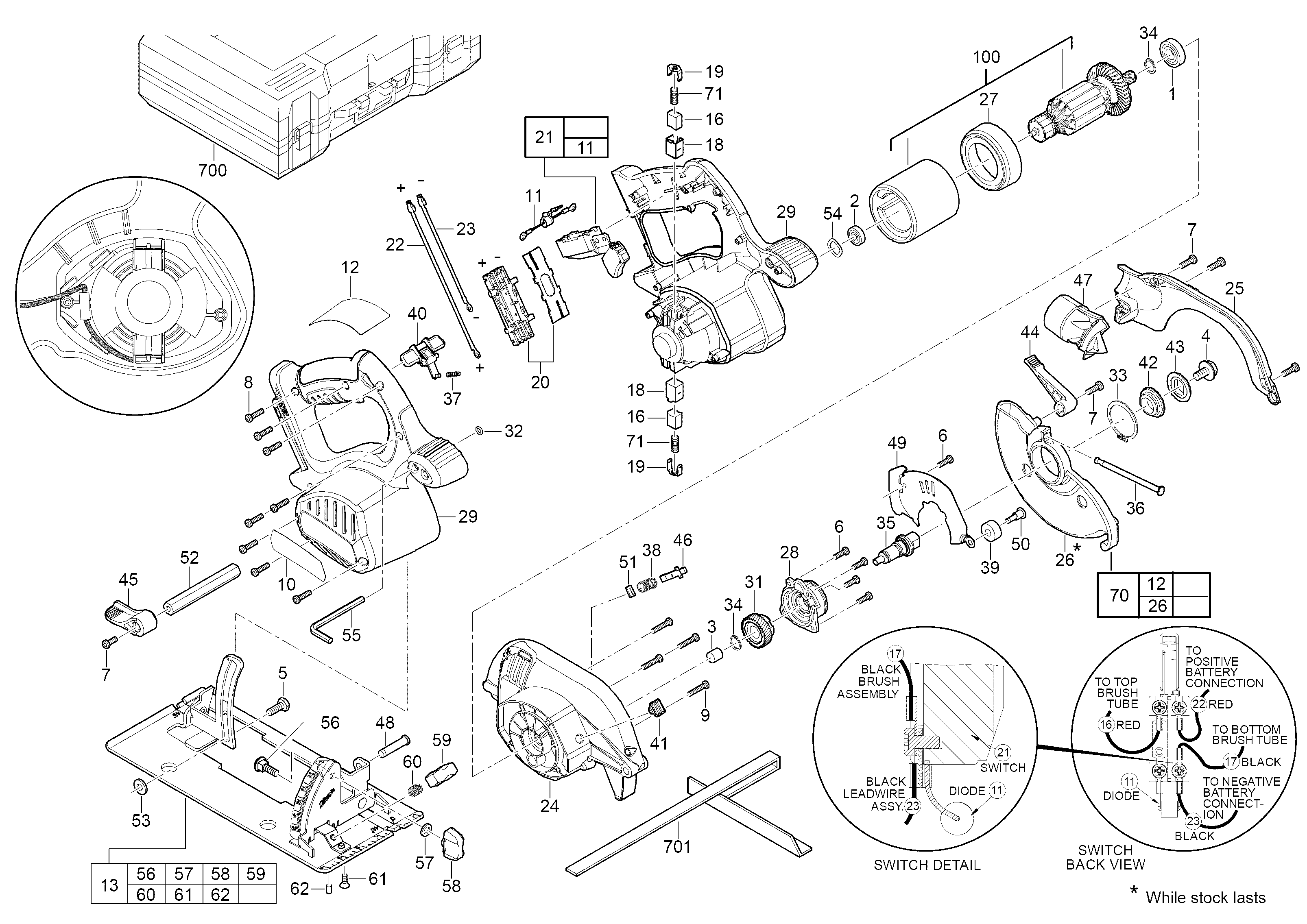

Technical drawing of model Milwaukee 4000431288 (HD28CS-0)
Spare parts list of model Milwaukee 4000431288 (HD28CS-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL BEARING | ||||
| 0001 | 02041212 | 16.43 | 19.88 | |
| BALL BEARING | ||||
| 0001 | 2041212 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0002 | 02045130 | 18.07 | 21.86 | |
| BALL BEARING | ||||
| 0002 | 2045130 | 5.00 | 6.05 | |
| NEEDLE BEARING | ||||
| 0003 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0003 | 2501640 | 5.00 | 6.05 | |
| SCREW | ||||
| 0004 | 06751010 | 4.32 | 5.23 | |
| SCREW 1/4-20X3/4 | ||||
| 0005 | 06755860 | 4.32 | 5.23 | |
| SCREW (13 needed) | ||||
| 0006 | 06825285 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0006 | 6825285 | 1.00 | 1.21 | |
| SCREW TORX SCREW (8 needed) | ||||
| 0007 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (4 needed) | ||||
| 0007 | 6825314 | 1.00 | 1.21 | |
| SCREW (13 needed) | ||||
| 0008 | 06827470 | 6.22 | 7.53 | |
| SCREW (13 needed) | ||||
| 0008 | 6827470 | 1.20 | 1.45 | |
| SCREW | ||||
| 0009 | 06827475 | 5.18 | 6.27 | |
| SCREW | ||||
| 0009 | 6827475 | 1.00 | 1.21 | |
| ADHESIVE LABEL | ||||
| 0010 | 940064035 | 3.00 | 3.63 | |
| RESISTOR | ||||
| 0011 | 22740510 | 4.54 | 5.49 | |
| No longer available, no replacement | ||||
| 0012 | 4931433377 | |||
| BASE PLATE | ||||
| 0013 | 14740315 | 49.10 | 59.41 | |
| CARBON BRUSH SET | ||||
| 0016 | 4931433378 | 19.01 | 23.00 | |
| BRUSH HOLDER | ||||
| 0018 | 22200425 | 3.00 | 3.63 | |
| BRUSH SPRING | ||||
| 0019 | 22320420 | 5.40 | 6.53 | |
| CONNECTOR | ||||
| 0020 | 22560975 | 11.69 | 14.14 | |
| SWITCH ON-OFF | ||||
| 0021 | 270017215 | 34.10 | 41.26 | |
| RELAY CABLE | ||||
| 0022 | 23944290 | 17.42 | 21.08 | |
| RELAY CABLE | ||||
| 0023 | 23944295 | 5.40 | 6.53 | |
| GEAR BOX HOUSING | ||||
| 0024 | 641187006 | 41.18 | 49.83 | |
| No longer available, no replacement | ||||
| 0025 | 28201360 | |||
| No longer available, no replacement | ||||
| 0026 | 641189006 | |||
| AIR DEFLECTOR RING | ||||
| 0027 | 31050350 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0028 | 31150601 | |||
| HANDLE SET | ||||
| 0029 | 4931433379 | 38.02 | 46.00 | |
| GEAR | ||||
| 0031 | 32751310 | 23.76 | 28.75 | |
| O-RING | ||||
| 0032 | 34404480 | 3.60 | 4.36 | |
| THRUST COLLAR | ||||
| 0033 | 34600860 | 3.00 | 3.63 | |
| RING | ||||
| 0034 | 34600920 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0035 | 38501160 | |||
| SPRING | ||||
| 0036 | 40500045 | 3.00 | 3.63 | |
| SPRING | ||||
| 0037 | 40500350 | 3.00 | 3.63 | |
| PRESSURE SPRING | ||||
| 0038 | 40508040 | 4.54 | 5.49 | |
| GUARD | ||||
| 0039 | 42380222 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0040 | 42421020 | 3.00 | 3.63 | |
| PUSH-BUTTON | ||||
| 0041 | 42421030 | 6.82 | 8.25 | |
| FLANGE | ||||
| 0042 | 43340790 | 4.80 | 5.81 | |
| FLANGE | ||||
| 0043 | 43340795 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0044 | 514347002 | |||
| No longer available, no replacement | ||||
| 0045 | 514348002 | |||
| SPINDLE LOCK | ||||
| 0046 | 44200650 | 3.00 | 3.63 | |
| DUST SEAL | ||||
| 0047 | 31760100 | 5.40 | 6.53 | |
| PIN | ||||
| 0048 | 44600740 | 3.00 | 3.63 | |
| LATCH PLATE | ||||
| 0049 | 44660560 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0050 | 45040485 | |||
| FELT PACKING | ||||
| 0051 | 45060720 | 5.40 | 6.53 | |
| SHAFT | ||||
| 0052 | 45080395 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 0053 | 45881545 | |||
| WASHER | ||||
| 0054 | 45885615 | 3.00 | 3.63 | |
| WRENCH 3/16 | ||||
| 0055 | 49960080 | 5.04 | 6.10 | |
| BOLT | ||||
| 0056 | 6100660 | 2.50 | 3.02 | |
| WASHER | ||||
| 0057 | 45881560 | 3.00 | 3.63 | |
| KNOB | ||||
| 0058 | 43980730 | 5.40 | 6.53 | |
| KNOB | ||||
| 0059 | 43980720 | 3.00 | 3.63 | |
| SPRING | ||||
| 0060 | 40500650 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 0061 | 06829605 | |||
| SCREW | ||||
| 0062 | 6831600 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 0070 | 4931448788 | |||
| SPRING (2 needed) | ||||
| 0071 | 200550005 | 3.79 | 4.59 | |
| MOTOR | ||||
| 0100 | 4931453367 | 96.62 | 116.91 | |
| CARRYING CASE | ||||
| 0700 | 48551490 | 55.44 | 67.08 | |
| CARRYING CASE | ||||
| 0700 | 201552002 | 44.57 | 53.93 | |
| BACK SQUARE | ||||
| 0701 | 301768001 | 14.40 | 17.42 | |
