Here you will find all available parts and drawings of the 'Milwaukee 4000467623 (HD18HX-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

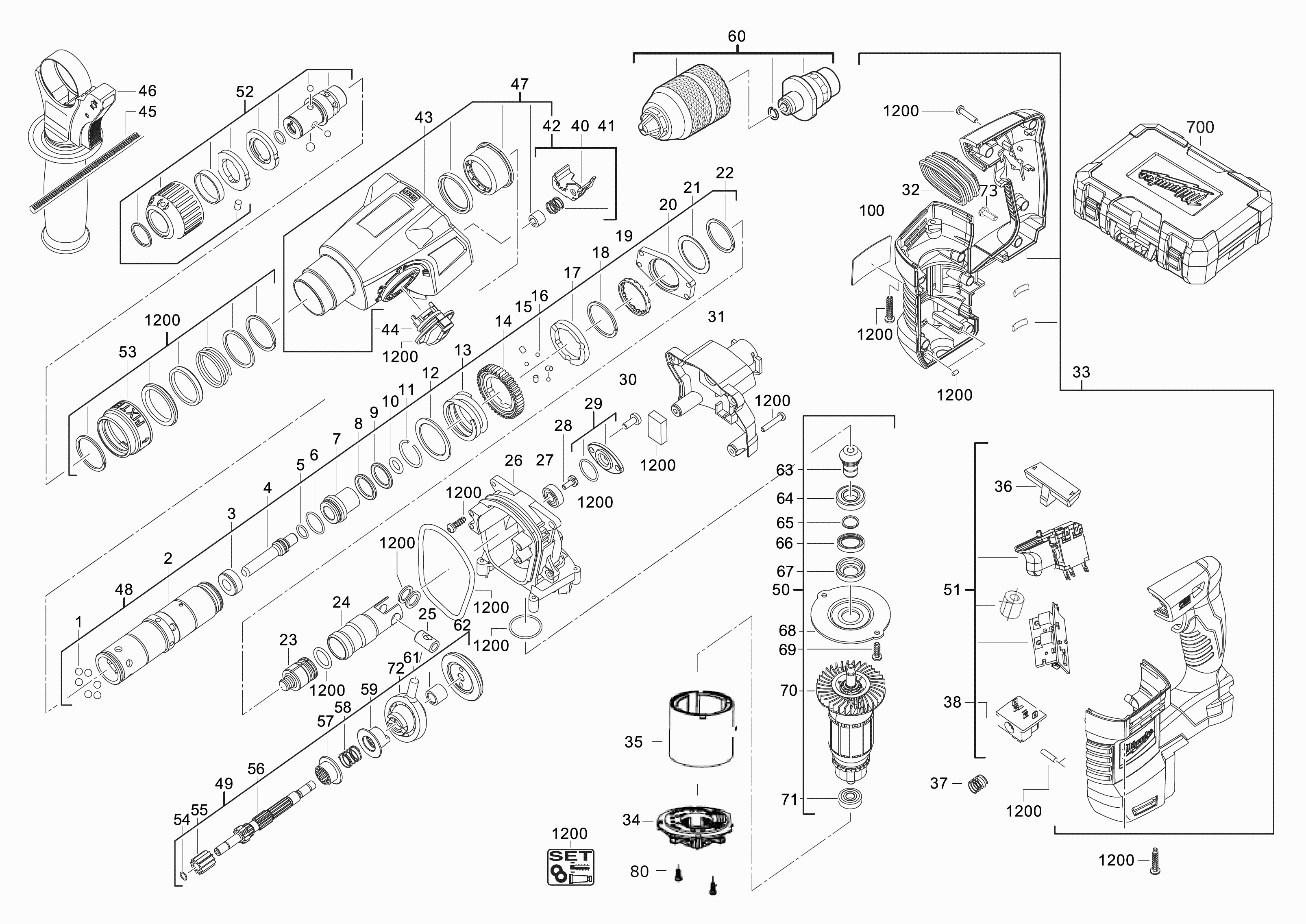

Technical drawing of model Milwaukee 4000467623 (HD18HX-0)
Spare parts list of model Milwaukee 4000467623 (HD18HX-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL (6 needed) | ||||
| 0001 | 681486001 | 3.00 | 3.63 | |
| SPINDLE SLEEVE | ||||
| 0002 | 621198001 | 39.60 | 47.92 | |
| STOP WASHER | ||||
| 0003 | 692724001 | 9.00 | 10.89 | |
| SNAP DIE | ||||
| 0004 | 692723001 | 16.20 | 19.60 | |
| O-RING | ||||
| 0005 | 4931454454 | 3.00 | 3.63 | |
| O-RING | ||||
| 0006 | 562594001 | 3.00 | 3.63 | |
| SLEEVE | ||||
| 0007 | 692722001 | 9.00 | 10.89 | |
| O-RING | ||||
| 0008 | 562595001 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 0009 | 633518001 | |||
| O-RING | ||||
| 0010 | 562597001 | 3.60 | 4.36 | |
| O-RING | ||||
| 0010 | 4931454456 | 3.00 | 3.63 | |
| CIRCLIP | ||||
| 0011 | 672632001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0012 | 633517001 | 3.00 | 3.63 | |
| SPRING | ||||
| 0013 | 692735001 | 3.00 | 3.63 | |
| REDUCTION GEAR | ||||
| 0014 | 611291001 | 9.00 | 10.89 | |
| PIN (3 needed) | ||||
| 0015 | 681235001 | 4.49 | 5.43 | |
| BALL (3 needed) | ||||
| 0016 | 611405001 | 3.00 | 3.63 | |
| CLUTCH DISC | ||||
| 0017 | 4931435089 | 6.82 | 8.25 | |
| RETAINING RING (2 needed) | ||||
| 0018 | 672634004 | 4.54 | 5.49 | |
| BEARING | ||||
| 0019 | 681480001 | 9.00 | 10.89 | |
| BEARING | ||||
| 0020 | 692838001 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0021 | 633516001 | |||
| CIRCLIP | ||||
| 0022 | 633529001 | 4.49 | 5.43 | |
| PERCUSSION BODY | ||||
| 0023 | 692698001 | 18.98 | 22.97 | |
| CYLINDER | ||||
| 0024 | 692717001 | 18.80 | 22.75 | |
| CYLINDRICAL BOLT | ||||
| 0025 | 4931436807 | 7.20 | 8.71 | |
| BRACKET | ||||
| 0026 | 641710001 | 27.66 | 33.47 | |
| No longer available, no replacement | ||||
| 0027 | 4931454469 | |||
| SCREW | ||||
| 0028 | 661504001 | 3.00 | 3.63 | |
| BEARING END PLATE | ||||
| 0029 | 201879001 | 7.20 | 8.71 | |
| LOCKING SCREW (3 needed) | ||||
| 0030 | 4931465672 | 3.00 | 3.63 | |
| GEAR BOX COVER | ||||
| 0031 | 591125001 | 4.54 | 5.49 | |
| RUBBER SLEEVE | ||||
| 0032 | 562680001 | 3.00 | 3.63 | |
| MOTOR HOUSING | ||||
| 0033 | 4931465673 | 31.68 | 38.33 | |
| CARBON BRUSH SET | ||||
| 0034 | 4931465674 | 19.01 | 23.00 | |
| ELECTRIC FIELD | ||||
| 0035 | 4931465675 | 76.03 | 92.00 | |
| LEVER | ||||
| 0036 | 591123001 | 2.40 | 2.90 | |
| PRESSURE SPRING | ||||
| 0037 | 4931408243 | 5.40 | 6.53 | |
| INSERT | ||||
| 0038 | 4931416290 | 5.40 | 6.53 | |
| PLATE | ||||
| 0040 | 4931448985 | 5.40 | 6.53 | |
| SPRING | ||||
| 0041 | 692732001 | 3.00 | 3.63 | |
| PLATE | ||||
| 0042 | 201877001 | 8.09 | 9.79 | |
| No longer available, no replacement | ||||
| 0043 | 340124001 | |||
| SCHALTER | ||||
| 0044 | 4931448984 | 7.80 | 9.44 | |
| DEPTH GAUGE | ||||
| 0045 | 4931384434 | 5.40 | 6.53 | |
| AUXILIARY HANDLE | ||||
| 0046 | 304389001 | 17.11 | 20.70 | |
| No longer available, no replacement | ||||
| 0047 | 201756001 | |||
| SPINDLE | ||||
| 0048 | 201758001 | 114.05 | 138.00 | |
| GEAR SHAFT | ||||
| 0049 | 4931446523 | 53.86 | 65.17 | |
| MOTOR ASSEMBLY | ||||
| 0050 | 4931465698 | 117.22 | 141.84 | |
| SWITCH ASSEMBLY | ||||
| 0051 | 4931465676 | 82.37 | 99.67 | |
| ADAPTER | ||||
| 0052 | 201876001 | 31.68 | 38.33 | |
| SLEEVE | ||||
| 0053 | 522186001 | 3.00 | 3.63 | |
| WASHER | ||||
| 0054 | 633525001 | 3.00 | 3.63 | |
| GEAR | ||||
| 0055 | 4931453917 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0056 | 4931446527 | |||
| INTERN.GEARED WHEEL | ||||
| 0057 | 611288001 | 4.54 | 5.49 | |
| SPRING | ||||
| 0058 | 692733001 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0059 | 4931465677 | 7.20 | 8.71 | |
| CLUTCH CHUCK ASS. | ||||
| 0060 | 201895001 | 61.78 | 74.75 | |
| No information available, not orderable | ||||
| 0061 | 4931446532 | |||
| BEVEL GEAR | ||||
| 0062 | 4931465678 | 17.42 | 21.08 | |
| PINION | ||||
| 0063 | 4931465679 | 15.84 | 19.17 | |
| BALL BEARING (6 needed) | ||||
| 0064 | 4931446535 | 3.79 | 4.59 | |
| No longer available, no replacement | ||||
| 0065 | 4931446536 | |||
| No longer available, no replacement | ||||
| 0066 | 4931446537 | |||
| No longer available, no replacement | ||||
| 0067 | 4931446538 | |||
| No longer available, no replacement | ||||
| 0068 | 4931446539 | |||
| SCREW (6 needed) | ||||
| 0069 | 4931446540 | 3.00 | 3.63 | |
| ARMATURE | ||||
| 0070 | 4931465680 | 61.78 | 74.75 | |
| BALL BEARING | ||||
| 0071 | 681383001 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0072 | 681236001 | 19.01 | 23.00 | |
| No longer available, no replacement | ||||
| 0073 | 4931447515 | |||
| SCREW (2 needed) | ||||
| 0080 | 4931461932 | 3.60 | 4.36 | |
| RATING PLATE | ||||
| 0100 | 4931465683 | 3.00 | 3.63 | |
| GEAR HEAD | ||||
| 0120 | 4931494776 | 14.30 | 17.30 | |
| GEAR BOX KIT | ||||
| 0130 | 4931494777 | 29.22 | 35.36 | |
| CARRYING CASE | ||||
| 0700 | 304112002 | 47.30 | 57.23 | |
| MAINTENANCE SET | ||||
| 1200 | 4931467746 | 60.19 | 72.83 | |
