Here you will find all available parts and drawings of the 'Milwaukee 4000446519 (HD18HX-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

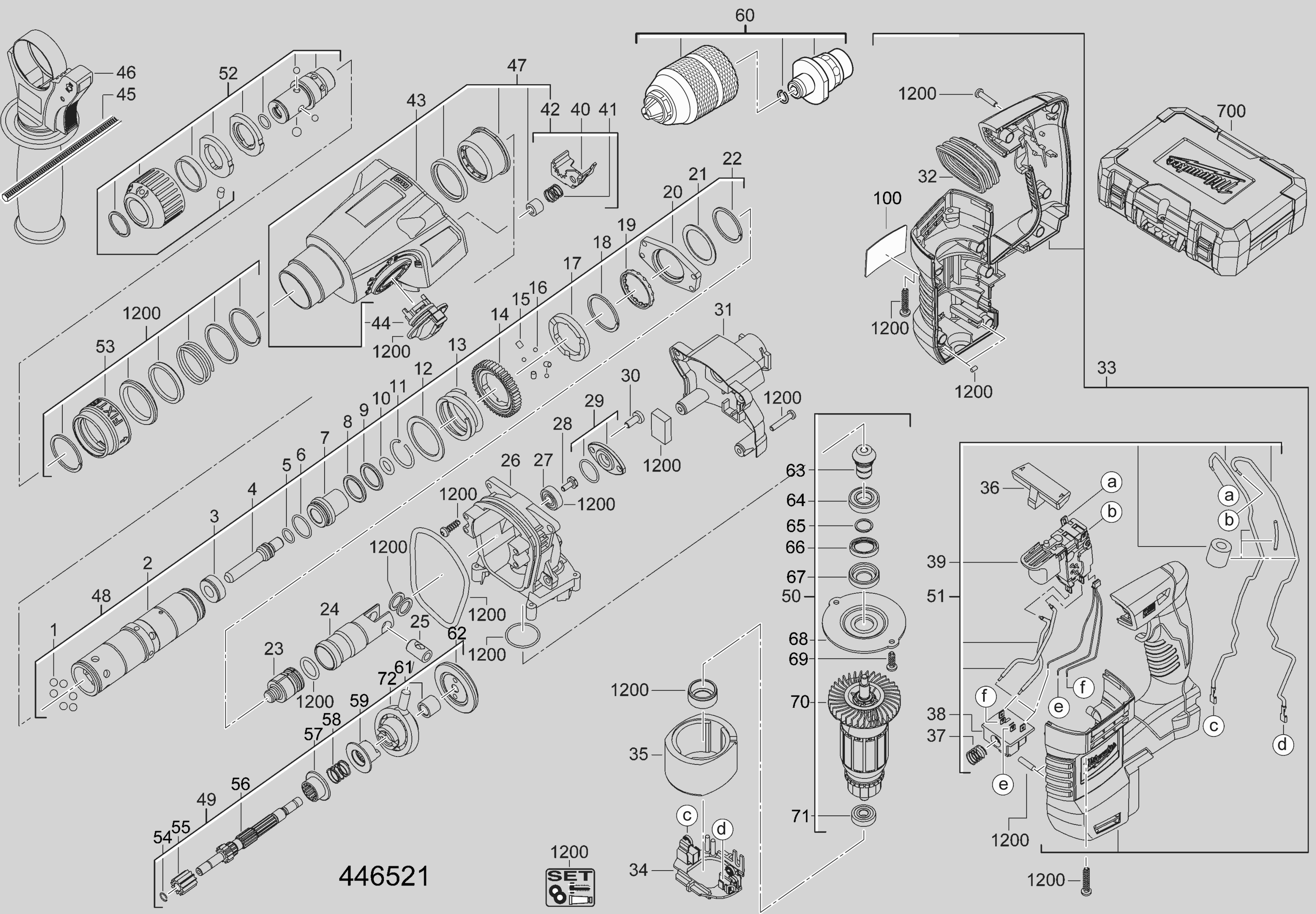

Technical drawing of model Milwaukee 4000446519 (HD18HX-0)
Spare parts list of model Milwaukee 4000446519 (HD18HX-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL (6 needed) | ||||
| 0001 | 681486001 | 3.00 | 3.63 | |
| SPINDLE SLEEVE | ||||
| 0002 | 621198001 | 39.60 | 47.92 | |
| STOP WASHER | ||||
| 0003 | 692724001 | 9.00 | 10.89 | |
| SNAP DIE | ||||
| 0004 | 692723001 | 16.20 | 19.60 | |
| O-RING | ||||
| 0005 | 4931454454 | 3.00 | 3.63 | |
| O-RING | ||||
| 0006 | 562594001 | 3.00 | 3.63 | |
| SLEEVE | ||||
| 0007 | 692722001 | 9.00 | 10.89 | |
| O-RING | ||||
| 0008 | 562595001 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 0009 | 633518001 | |||
| O-RING | ||||
| 0010 | 562597001 | 3.60 | 4.36 | |
| O-RING | ||||
| 0010 | 4931454456 | 3.00 | 3.63 | |
| CIRCLIP | ||||
| 0011 | 672632001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0012 | 633517001 | 3.00 | 3.63 | |
| SPRING | ||||
| 0013 | 692735001 | 3.00 | 3.63 | |
| REDUCTION GEAR | ||||
| 0014 | 611291001 | 9.00 | 10.89 | |
| PIN (3 needed) | ||||
| 0015 | 681235001 | 4.49 | 5.43 | |
| BALL (3 needed) | ||||
| 0016 | 611405001 | 3.00 | 3.63 | |
| CLUTCH DISC | ||||
| 0017 | 4931435089 | 6.82 | 8.25 | |
| No information available, not orderable | ||||
| 0018 | 672634002 | |||
| BEARING | ||||
| 0019 | 681480001 | 9.00 | 10.89 | |
| BEARING | ||||
| 0020 | 692838001 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0021 | 633516001 | |||
| CIRCLIP | ||||
| 0022 | 633529001 | 4.49 | 5.43 | |
| PERCUSSION BODY | ||||
| 0023 | 692698001 | 18.98 | 22.97 | |
| CYLINDER | ||||
| 0024 | 692717001 | 18.80 | 22.75 | |
| CYLINDRICAL BOLT | ||||
| 0025 | 4931436807 | 7.20 | 8.71 | |
| BRACKET | ||||
| 0026 | 641710001 | 27.66 | 33.47 | |
| BALL BEARING | ||||
| 0027 | 681383001 | 9.00 | 10.89 | |
| SCREW | ||||
| 0028 | 661504001 | 3.00 | 3.63 | |
| BEARING END PLATE | ||||
| 0029 | 201879001 | 7.20 | 8.71 | |
| LOCKING SCREW | ||||
| 0030 | 661286001 | 3.00 | 3.63 | |
| GEAR BOX COVER | ||||
| 0031 | 591125001 | 4.54 | 5.49 | |
| RUBBER SLEEVE | ||||
| 0032 | 562680001 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0033 | 201838001 | |||
| CARBON BRUSH SET | ||||
| 0034 | 4931511241 | 13.20 | 15.97 | |
| FIELD LEAD GROMMET | ||||
| 0035 | 4931454082 | 83.95 | 101.58 | |
| LEVER | ||||
| 0036 | 591123001 | 2.40 | 2.90 | |
| PRESSURE SPRING | ||||
| 0037 | 4931408243 | 5.40 | 6.53 | |
| INSERT | ||||
| 0038 | 4931416290 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0039 | 4931433316 | |||
| PLATE | ||||
| 0040 | 4931448985 | 5.40 | 6.53 | |
| SPRING | ||||
| 0041 | 692732001 | 3.00 | 3.63 | |
| PLATE | ||||
| 0042 | 201877001 | 8.09 | 9.79 | |
| No longer available, no replacement | ||||
| 0043 | 340124001 | |||
| SCHALTER | ||||
| 0044 | 4931448984 | 7.80 | 9.44 | |
| DEPTH GAUGE | ||||
| 0045 | 4931384434 | 5.40 | 6.53 | |
| AUXILIARY HANDLE | ||||
| 0046 | 304389001 | 17.11 | 20.70 | |
| No longer available, no replacement | ||||
| 0047 | 201756001 | |||
| SPINDLE | ||||
| 0048 | 201758001 | 114.05 | 138.00 | |
| GEAR SHAFT | ||||
| 0049 | 4931446523 | 53.86 | 65.17 | |
| No information available, not orderable | ||||
| 0050 | 4931446524 | |||
| No longer available, no replacement | ||||
| 0051 | 201881001 | |||
| ADAPTER | ||||
| 0052 | 201876001 | 31.68 | 38.33 | |
| SLEEVE | ||||
| 0053 | 522186001 | 3.00 | 3.63 | |
| WASHER | ||||
| 0054 | 633525001 | 3.00 | 3.63 | |
| GEAR | ||||
| 0055 | 4931453917 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0056 | 4931446527 | |||
| INTERN.GEARED WHEEL | ||||
| 0057 | 611288001 | 4.54 | 5.49 | |
| SPRING | ||||
| 0058 | 692733001 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0059 | 611289001 | 9.00 | 10.89 | |
| CLUTCH CHUCK ASS. | ||||
| 0060 | 201895001 | 61.78 | 74.75 | |
| No information available, not orderable | ||||
| 0061 | 4931446532 | |||
| No longer available, no replacement | ||||
| 0062 | 4931446533 | |||
| PINION | ||||
| 0063 | 4931446534 | 15.84 | 19.17 | |
| BALL BEARING (6 needed) | ||||
| 0064 | 4931446535 | 3.79 | 4.59 | |
| No longer available, no replacement | ||||
| 0065 | 4931446536 | |||
| No longer available, no replacement | ||||
| 0066 | 4931446537 | |||
| No longer available, no replacement | ||||
| 0067 | 4931446538 | |||
| No longer available, no replacement | ||||
| 0068 | 4931446539 | |||
| SCREW (6 needed) | ||||
| 0069 | 4931446540 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0070 | 4931446541 | |||
| BALL BEARING | ||||
| 0071 | 681383001 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0072 | 681236001 | 19.01 | 23.00 | |
| RATING PLATE | ||||
| 0100 | 940488265 | 3.00 | 3.63 | |
| CARRYING CASE | ||||
| 0700 | 304112002 | 47.30 | 57.23 | |
| No longer available, no replacement | ||||
| 1200 | 4931433267 | |||
