Here you will find all available parts and drawings of the 'Milwaukee 4000447818 (HD18BS-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

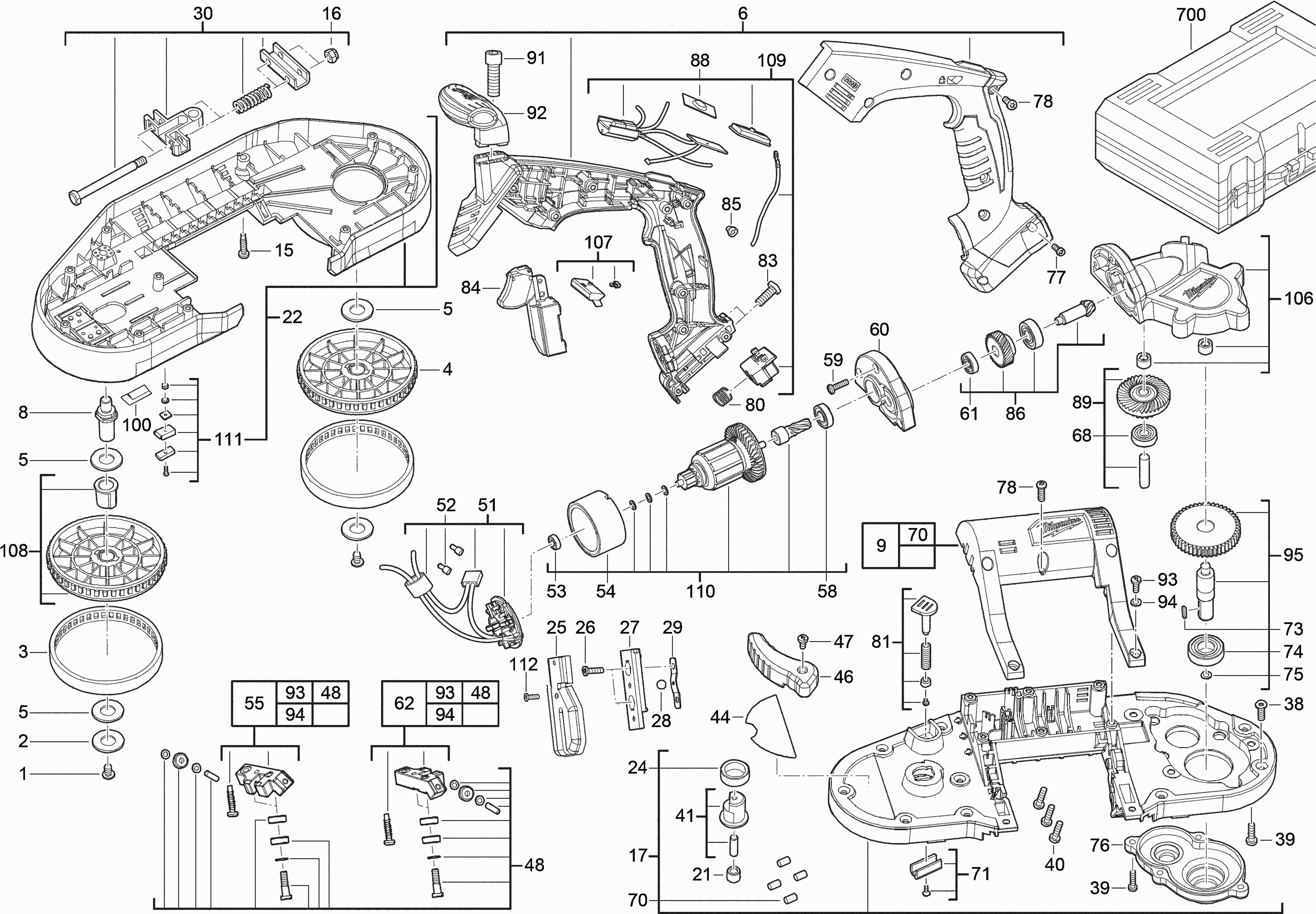

Technical drawing of model Milwaukee 4000447818 (HD18BS-0)

Spare parts list of model Milwaukee 4000447818 (HD18BS-0)

Pos.DescriptionPrice excl. VATPrice incl. VAT
Prices shown include VAT
M18 4,0 AH ACCU
00014932430063138.30167.34
SCREW (2 needed)
00016612990013.003.63
No longer available, no replacement
0002633266001
PULLEY (2 needed)
00035601420014.545.49
PULLEY
00043032100019.0010.89
WASHER (2 needed)
00055601890012.282.76
No longer available, no replacement
0006201332002
No longer available, no replacement
0008621064001
No longer available, no replacement
0009201326002
SCREW (2 needed)
00156611640013.604.36
No information available, not orderable
0016660499001
No longer available, no replacement
0017201344002
BUSH
00216921290014.495.43
No longer available, no replacement
0022201385002
No longer available, no replacement
0024692305001
No longer available, no replacement
00254931447822
SCREW
00266613190011.802.18
SCREW
002649315079131.201.45
No longer available, no replacement
00274931447823
BALL (2 needed)
00286801850013.003.63
No information available, not orderable
0029633088001
No longer available, no replacement
0030201333002
No information available, not orderable
0038661294001
No information available, not orderable
0039661133001
No information available, not orderable
0040661295001
No longer available, no replacement
0041201336002
No information available, not orderable
00444931447832
No longer available, no replacement
0046519335001
SCREW (2 needed)
00476600230013.003.63
SUPPORT ROLL HOLDER
004820137100219.0123.00
No longer available, no replacement
00514931433495
No information available, not orderable
00524931433494
BALL BEARING
00536812620019.8411.91
No longer available, no replacement
0054200996007
SUPPORT ROLL
005520133700230.1036.42
No information available, not orderable
0058681371001
SCREW
00596611130083.604.36
No information available, not orderable
0060641381001
GROOV. BALL BEARING
00616811500019.0010.89
SUPPORT ROLL
006220134100230.1036.42
No information available, not orderable
0068681386001
RUBBER BUFFER (4 needed)
00705600850015.406.53
GUARD
00712013420023.003.63
KEY
00736729620016.007.26
No information available, not orderable
0074681373001
No longer available, no replacement
0075632876001
No information available, not orderable
0076641382001
No longer available, no replacement
0077661005001
SCREW (12 needed)
00786609820013.003.63
No information available, not orderable
0080672206001
No longer available, no replacement
0081201343002
No information available, not orderable
0083660519001
SWITCH
008476024500517.3020.93
No information available, not orderable
0085661216001
No information available, not orderable
0086201345002
No longer available, no replacement
0088940230184
No information available, not orderable
0089201346002
No information available, not orderable
0091661317001
HANDLE
00923406920019.0010.89
SCREW (2 needed)
00936611130013.003.63
No longer available, no replacement
0094632716002
No longer available, no replacement
0095201347002
SERVICE-KIT
0100493141648119.7023.84
No information available, not orderable
0106201348002
Lock Release Kit
01072013490023.003.63
PULLEY
010820135000212.6015.25
No longer available, no replacement
0109201370002
ARMATURE
011020122000366.5380.50
No information available, not orderable
01114931447833
No longer available, no replacement
01124931447824
CARRYING CASE
0700493141648252.2763.25
