Here you will find all available parts and drawings of the 'Milwaukee 4000403322 ( DGL34 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

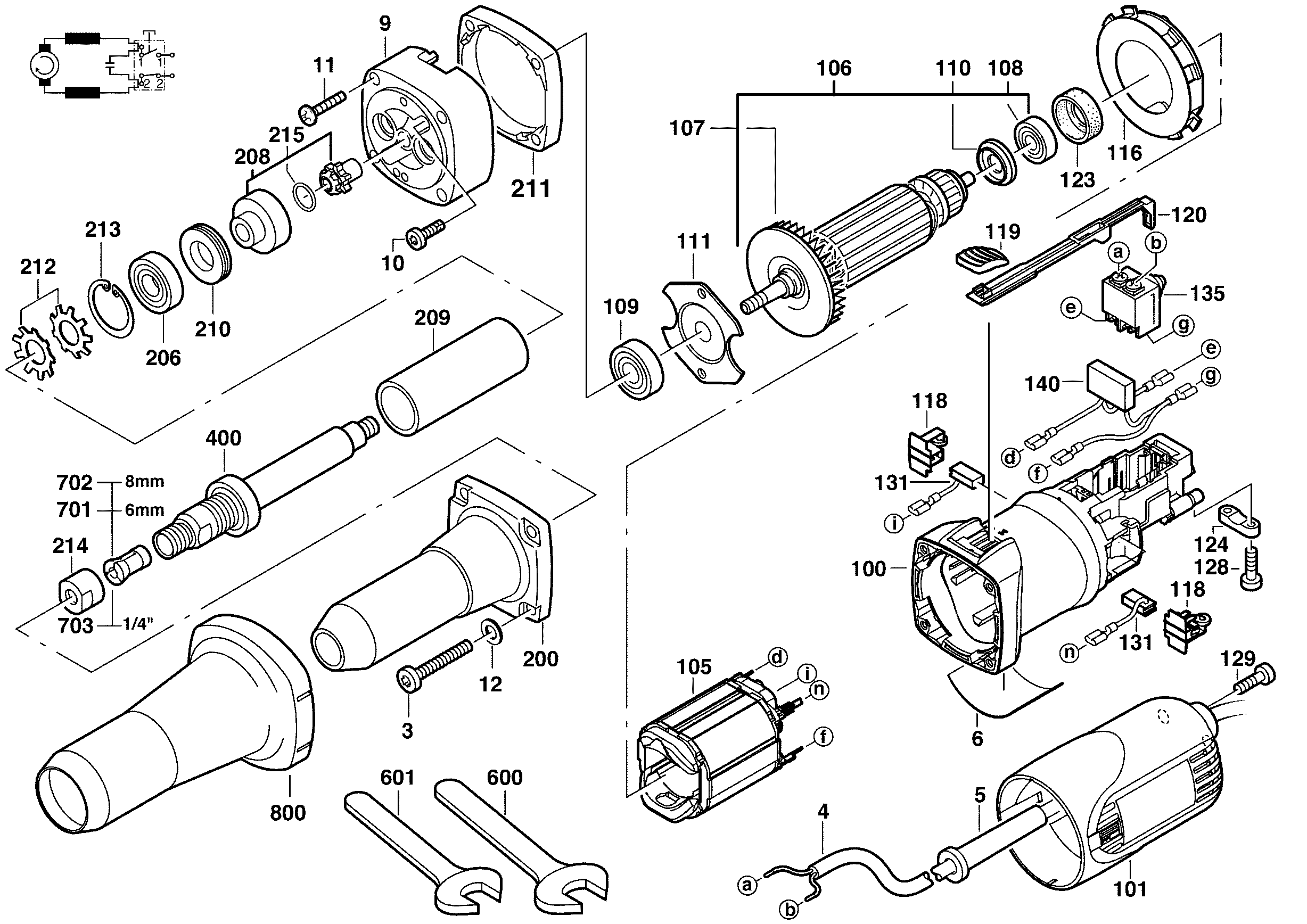

Technical drawing of model Milwaukee 4000403322 ( DGL34 )
Spare parts list of model Milwaukee 4000403322 ( DGL34 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0003 | 4931317532 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931624175 | 23.76 | 28.75 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0006 | 4931403325 | |||
| BEARING END PLATE | ||||
| 0009 | 4931426201 | 17.42 | 21.08 | |
| SCREW (2 needed) | ||||
| 0010 | 4931279999 | 1.80 | 2.18 | |
| SCREW D 7981 3,9X40 (4 needed) | ||||
| 0011 | 4931622399 | 1.80 | 2.18 | |
| SEALING WASHER D 433 4,3 (4 needed) | ||||
| 0012 | 4931617414 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0100 | 4931403004 | 9.00 | 10.89 | |
| HOUSING CAP | ||||
| 0101 | 4931403011 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0106 | 4931385456 | |||
| FAN | ||||
| 0107 | 4931368347 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0111 | 4931351913 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931368549 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0118 | 4931368633 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0119 | 4931368501 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0120 | 4931368333 | 5.40 | 6.53 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931393018 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0124 | 4931256500 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0128 | 4931624538 | 1.80 | 2.18 | |
| SCREW (8 needed) | ||||
| 0129 | 4931618253 | 1.80 | 2.18 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392612 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931385824 | 7.20 | 8.71 | |
| CAPACITOR | ||||
| 0140 | 4931391182 | 9.00 | 10.89 | |
| BEARING NECK | ||||
| 0200 | 4931449947 | 49.10 | 59.41 | |
| BALL BEARING D 625 6001 ZTH LDS | ||||
| 0206 | 4931804500 | 9.00 | 10.89 | |
| MODIFICATION SET | ||||
| 0208 | 4931417294 | 22.18 | 26.84 | |
| DISTANCE SLEEVE | ||||
| 0209 | 4931208217 | 9.00 | 10.89 | |
| NUT | ||||
| 0210 | 4931208219 | 9.00 | 10.89 | |
| INTERMEDIATE FLANGE | ||||
| 0211 | 4931354044 | 5.40 | 6.53 | |
| SPRING (2 needed) | ||||
| 0212 | 4931220726 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0213 | 4931884220 | 5.40 | 6.53 | |
| CLAMPING NUT | ||||
| 0214 | 4931409786 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0215 | 4931623232 | 5.40 | 6.53 | |
| GRINDING SPINDLE | ||||
| 0400 | 4931278595 | 76.03 | 92.00 | |
| KEY D 894 17 | ||||
| 0600 | 4931822228 | 3.60 | 4.36 | |
| KEY D894 15 | ||||
| 0601 | 4931606563 | 3.60 | 4.36 | |
| Precisie-spantang 6 mm | ||||
| 0701 | 4932313192 | 17.60 | 21.30 | |
| Spantang 8 mm | ||||
| 0702 | 4932313190 | 18.15 | 21.96 | |
| Precisie-spantang 6,35 mm | ||||
| 0703 | 4932313194 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 0800 | 4931378008 | |||
