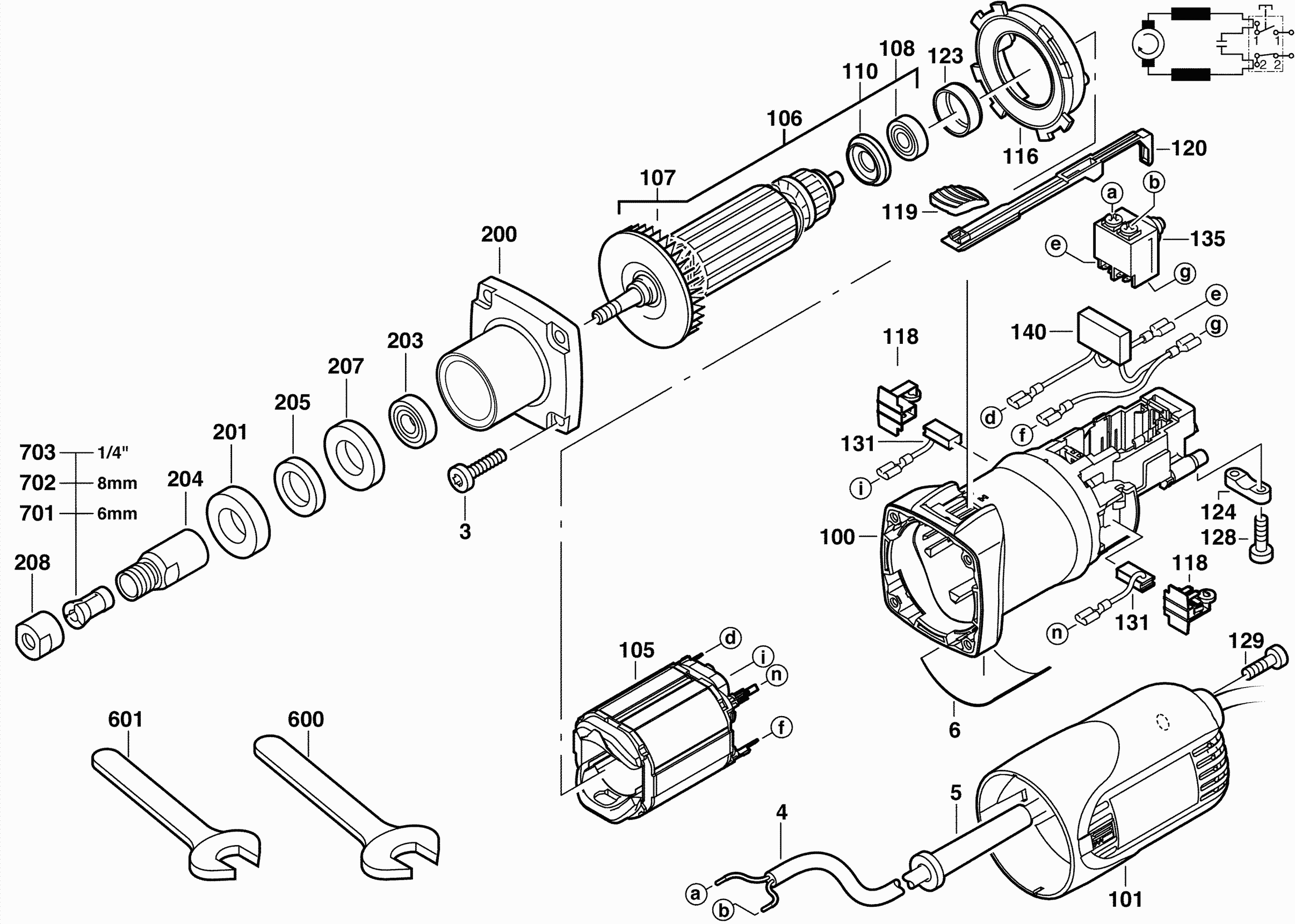

Technical drawing of model Milwaukee 4000391711 (DG30)
Spare parts list of model Milwaukee 4000391711 (DG30)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (8 needed) | ||||
| 0003 | 4931618253 | 3.00 | 3.63 | |
| CONNECTION CABLE | ||||
| 0004 | 4931624121 | 16.50 | 19.96 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0100 | 4931403204 | |||
| HOUSING CAP | ||||
| 0101 | 4931403011 | 9.36 | 11.33 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426578 | 23.76 | 28.75 | |
| No longer available, no replacement | ||||
| 0106 | 4931426220 | |||
| FAN | ||||
| 0107 | 4931351861 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0116 | 4931368496 | |||
| BRUSH HOLDER (2 needed) | ||||
| 0118 | 4931351842 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0119 | 4931368501 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0120 | 4931368333 | 5.40 | 6.53 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931393018 | 6.48 | 7.84 | |
| CABLE COLLAR | ||||
| 0124 | 4931256500 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0128 | 4931624538 | 3.00 | 3.63 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392612 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931385824 | 7.20 | 8.71 | |
| CAPACITOR | ||||
| 0140 | 4931391182 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0201 | 4931278527 | 8.09 | 9.79 | |
| BALL BEARING | ||||
| 0203 | 4931901253 | 9.36 | 11.33 | |
| SPINDLE SLEEVE | ||||
| 0204 | 4931351872 | 25.34 | 30.66 | |
| FELT WASHER | ||||
| 0205 | 4931278529 | 3.00 | 3.63 | |
| SPACER | ||||
| 0207 | 4931278549 | 5.40 | 6.53 | |
| CLAMPING NUT | ||||
| 0208 | 4931409786 | 9.00 | 10.89 | |
| KEY D 894 17 | ||||
| 0600 | 4931822228 | 4.32 | 5.23 | |
| KEY D894 15 | ||||
| 0601 | 4931606563 | 4.80 | 5.81 | |
| COLLET OF/E 6MM P1 A/M | ||||
| 0701 | 4932313192 | 19.36 | 23.43 | |
| COLLET OF/E 8MM P1 A/M | ||||
| 0702 | 4932313190 | 19.97 | 24.16 | |
| COLLET OFS450 6.35MM P1 A/M | ||||
| 0703 | 4932313194 | 19.97 | 24.16 | |
