Here you will find all available parts and drawings of the 'Milwaukee 4000384546 (DCM2-250C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

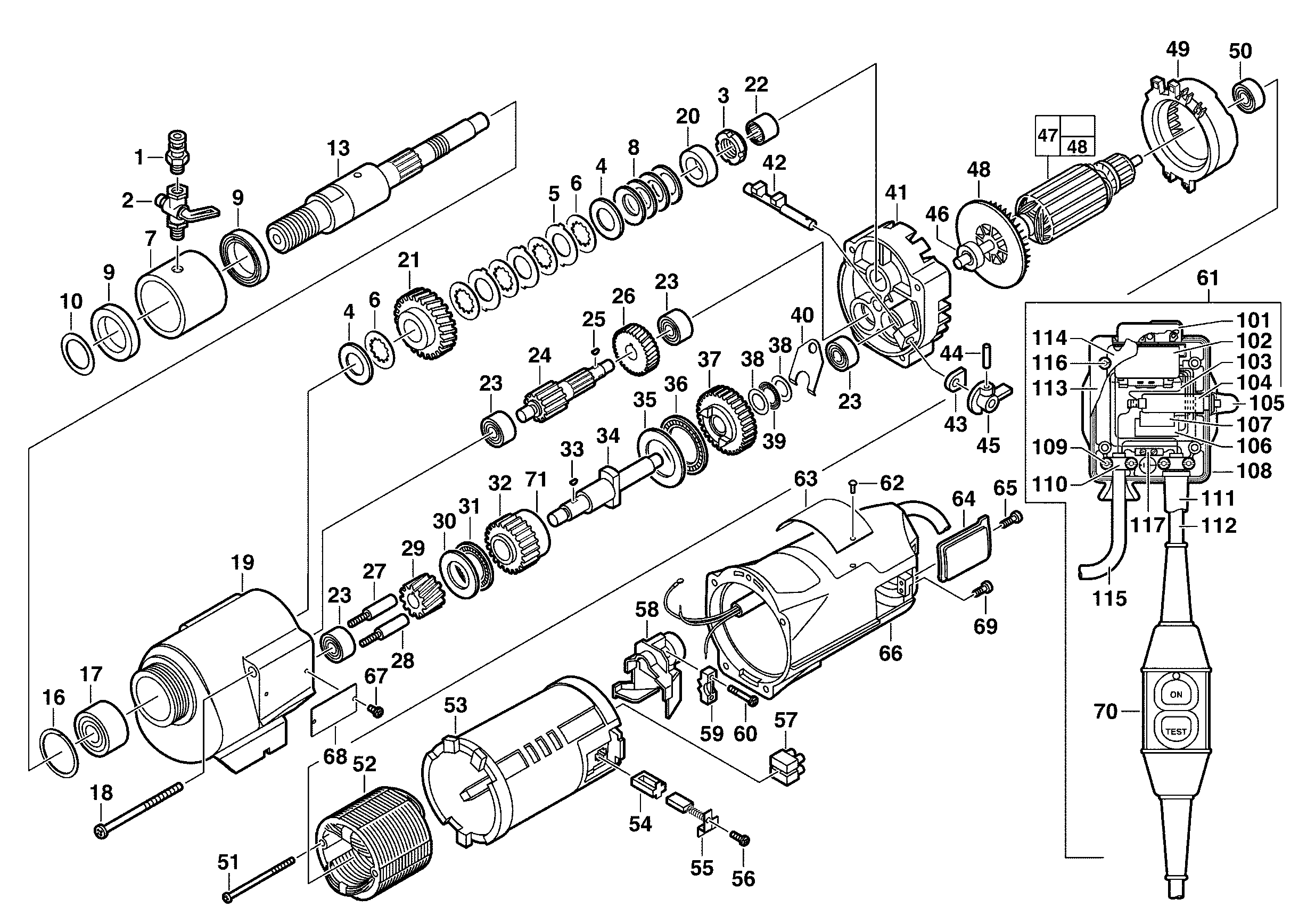

Technical drawing of model Milwaukee 4000384546 (DCM2-250C)
Spare parts list of model Milwaukee 4000384546 (DCM2-250C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FITTING | ||||
| 0001 | 42900210 | 45.94 | 55.59 | |
| VALVE | ||||
| 0002 | 45800060 | 42.77 | 51.75 | |
| NUT | ||||
| 0003 | 06571050 | 30.10 | 36.42 | |
| NUT | ||||
| 0003 | 6571050 | 19.00 | 22.99 | |
| WASHER (2 needed) | ||||
| 0004 | 45881140 | 8.09 | 9.79 | |
| DISC (3 needed) | ||||
| 0005 | 43060160 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0006 | 43060150 | |||
| No longer available, no replacement | ||||
| 0007 | 43760051 | |||
| PRESSURE SPRING (4 needed) | ||||
| 0008 | 40502150 | 9.00 | 10.89 | |
| SEAL RING (2 needed) | ||||
| 0009 | 45060635 | 36.43 | 44.08 | |
| WASHER | ||||
| 0010 | 45888565 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0013 | 38506020 | |||
| RING | ||||
| 0016 | 34803800 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0017 | 02202515 | 77.62 | 93.92 | |
| BALL BEARING | ||||
| 0017 | 2202515 | 49.00 | 59.29 | |
| SCREW | ||||
| 0018 | 06829202 | 1.73 | 2.09 | |
| SCREW | ||||
| 0018 | 6829202 | 1.00 | 1.21 | |
| BODY | ||||
| 0019 | 28141870 | 302.54 | 366.07 | |
| SPACER | ||||
| 0020 | 45361520 | 14.40 | 17.42 | |
| SPINDLE GEAR | ||||
| 0021 | 32753420 | 98.21 | 118.83 | |
| NEEDLE BEARING | ||||
| 0022 | 02504830 | 13.82 | 16.72 | |
| NEEDLE BEARING | ||||
| 0022 | 2504830 | 8.00 | 9.68 | |
| BALL BEARING (3 needed) | ||||
| 0023 | 02041205 | 8.64 | 10.45 | |
| BALL BEARING (3 needed) | ||||
| 0023 | 2041205 | 5.00 | 6.05 | |
| SHAFT | ||||
| 0024 | 36663751 | 68.11 | 82.41 | |
| KEY | ||||
| 0025 | 06421600 | 4.32 | 5.23 | |
| KEY | ||||
| 0025 | 6421600 | 2.50 | 3.02 | |
| GEAR | ||||
| 0026 | 32401581 | 30.10 | 36.42 | |
| PRESSURE SPRING (2 needed) | ||||
| 0027 | 40506300 | 1.90 | 2.30 | |
| PLUNGER (2 needed) | ||||
| 0028 | 44700100 | 5.68 | 6.87 | |
| GEAR BOX | ||||
| 0029 | 32601041 | 12.60 | 15.25 | |
| WASHER | ||||
| 0030 | 45880520 | 2.71 | 3.28 | |
| THRUST BEARING | ||||
| 0031 | 02801800 | 8.64 | 10.45 | |
| THRUST BEARING | ||||
| 0031 | 2801800 | 5.00 | 6.05 | |
| GEAR | ||||
| 0032 | 32100060 | 22.18 | 26.84 | |
| KEY | ||||
| 0033 | 06422000 | 1.73 | 2.09 | |
| KEY | ||||
| 0033 | 6422000 | 1.00 | 1.21 | |
| CLUTCH SHAFT | ||||
| 0034 | 36140061 | 126.48 | 153.04 | |
| WASHER (2 needed) | ||||
| 0035 | 45880530 | 3.78 | 4.57 | |
| THRUST BEARING | ||||
| 0036 | 02805000 | 8.64 | 10.45 | |
| THRUST BEARING | ||||
| 0036 | 2805000 | 5.00 | 6.05 | |
| GEAR BOX | ||||
| 0037 | 32100051 | 117.22 | 141.84 | |
| WASHER (2 needed) | ||||
| 0038 | 45880510 | 3.78 | 4.57 | |
| THRUST BEARING | ||||
| 0039 | 02801200 | 8.64 | 10.45 | |
| THRUST BEARING | ||||
| 0039 | 2801200 | 5.00 | 6.05 | |
| YOKE | ||||
| 0040 | 45980090 | 6.31 | 7.64 | |
| BEARING END PLATE | ||||
| 0041 | 14130210 | 104.54 | 126.49 | |
| SLIDING SWITCH | ||||
| 0042 | 30150272 | 25.34 | 30.66 | |
| GASKET (2 needed) | ||||
| 0043 | 43440580 | 4.49 | 5.43 | |
| PIN | ||||
| 0044 | 6650840 | 2.50 | 3.02 | |
| TRIGGER | ||||
| 0045 | 25600056 | 6.31 | 7.64 | |
| BALL BEARING | ||||
| 0046 | 4931440556 | 4.80 | 5.81 | |
| ARMATURE ASSEMBLY | ||||
| 0047 | 16760325 | 164.74 | 199.34 | |
| No longer available, no replacement | ||||
| 0048 | 22840790 | |||
| AIR DEFLECTOR RING | ||||
| 0049 | 42140291 | 7.20 | 8.71 | |
| Ball Bearing | ||||
| 0050 | 02041041 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0050 | 2041041 | 5.00 | 6.05 | |
| SCREW | ||||
| 0051 | 6829152 | 2.00 | 2.42 | |
| ELECTRIC FIELD | ||||
| 0052 | 18740120 | 120.38 | 145.66 | |
| ISOLATION MODULE | ||||
| 0053 | 23161410 | 77.62 | 93.92 | |
| BRUSH HOLDER (2 needed) | ||||
| 0054 | 22200680 | 5.68 | 6.87 | |
| CARBON BRUSH (2 needed) | ||||
| 0055 | 22180706 | 34.65 | 41.93 | |
| SCREW | ||||
| 0056 | 06828835 | 1.73 | 2.09 | |
| SCREW (2 needed) | ||||
| 0056 | 6828835 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0057 | 22560470 | |||
| CLAMP | ||||
| 0058 | 22380140 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0059 | 31170200 | |||
| SCREW | ||||
| 0060 | 06827326 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0060 | 6827326 | 1.00 | 1.21 | |
| CONTROL DEVICE | ||||
| 0061 | 23370160 | 918.72 | 1111.65 | |
| RIVET (2 needed) | ||||
| 0062 | 6721720 | 2.50 | 3.02 | |
| No information available, not orderable | ||||
| 0063 | 12991823 | |||
| BRUSH COVER (2 needed) | ||||
| 0064 | 22320350 | 3.78 | 4.57 | |
| SCREW | ||||
| 0065 | 06825316 | 1.73 | 2.09 | |
| SCREW | ||||
| 0065 | 6825316 | 1.00 | 1.21 | |
| HOUSING | ||||
| 0066 | 28506363 | 101.38 | 122.67 | |
| SCREW (2 needed) | ||||
| 0067 | 6825266 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 0068 | 12983020 | |||
| SCREW | ||||
| 0069 | 06955200 | 1.73 | 2.09 | |
| SCREW | ||||
| 0069 | 6955200 | 1.00 | 1.21 | |
| CABLE HARNESS | ||||
| 0070 | 4931472579 | 17.42 | 21.08 | |
| SPACER | ||||
| 0071 | 45360225 | 9.00 | 10.89 | |
| SWITCH COVER | ||||
| 0101 | 22680200 | 25.41 | 30.75 | |
| SWITCH | ||||
| 0102 | 23661430 | 90.29 | 109.25 | |
| No longer available, no replacement | ||||
| 0103 | 23949915 | |||
| CABLE HARNESS | ||||
| 0104 | 22360150 | 68.11 | 82.41 | |
| SWITCH COVER | ||||
| 0105 | 22680210 | 15.84 | 19.17 | |
| No longer available, no replacement | ||||
| 0106 | 22330430 | |||
| No longer available, no replacement | ||||
| 0107 | 22740053 | |||
| SWITCH COVER | ||||
| 0108 | 22120200 | 62.37 | 75.47 | |
| SCREW 8-16X7/8 PAN SL PLS | ||||
| 0109 | 06827299 | 8.64 | 10.45 | |
| SCREW 8-16X7/8 PAN SL PLS | ||||
| 0109 | 6827299 | 5.00 | 6.05 | |
| CLAMPING PIECE | ||||
| 0110 | 31170155 | 4.49 | 5.43 | |
| CABLE CLAMP | ||||
| 0111 | 44760140 | 14.40 | 17.42 | |
| CABLE | ||||
| 0112 | 22644075 | 26.93 | 32.59 | |
| COVER | ||||
| 0113 | 22680190 | 23.76 | 28.75 | |
| No longer available, no replacement | ||||
| 0115 | 22645050 | |||
| SCREW | ||||
| 0116 | 06827326 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0116 | 6827326 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 0117 | 22560480 | |||
