Here you will find all available parts and drawings of the 'Milwaukee 4000458632 (CS85CBEIN2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

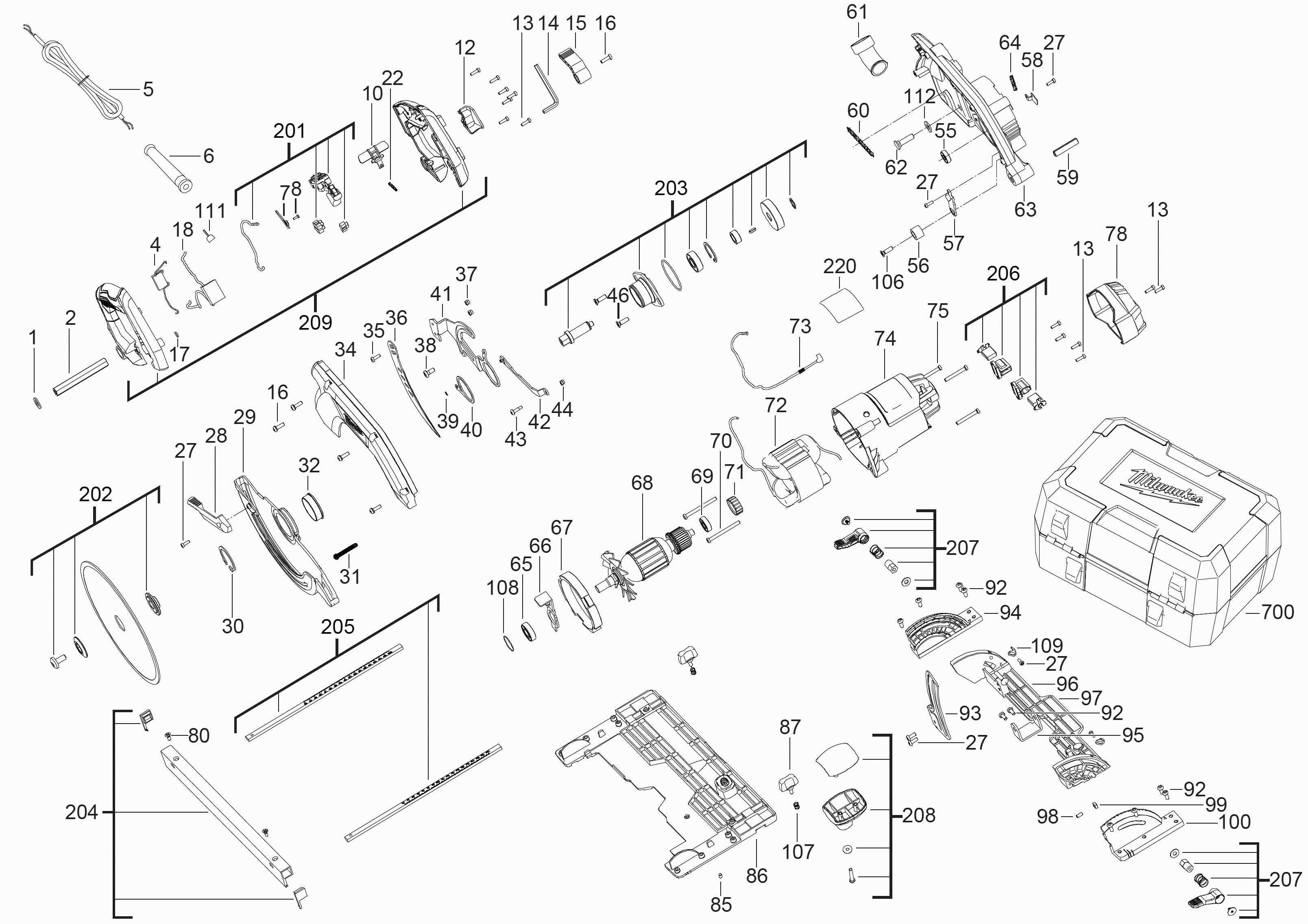

Technical drawing of model Milwaukee 4000458632 (CS85CBEIN2)
Spare parts list of model Milwaukee 4000458632 (CS85CBEIN2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| WASHER | ||||
| 0001 | 4931431103 | 3.00 | 3.63 | |
| GUIDE BAR | ||||
| 0002 | 4931454194 | 7.20 | 8.71 | |
| CAPACITOR | ||||
| 0004 | 4931454746 | 4.49 | 5.43 | |
| POWER CORD | ||||
| 0005 | 4931454196 | 27.95 | 33.82 | |
| CABLE ENTRY SLEEVE | ||||
| 0006 | 4931454747 | 4.80 | 5.81 | |
| RETAINING PLATE | ||||
| 0007 | 4931454200 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0008 | 4931454201 | |||
| No longer available, no replacement | ||||
| 0010 | 4931454202 | |||
| CAP | ||||
| 0012 | 4931454203 | 3.00 | 3.63 | |
| SCREW (13 needed) | ||||
| 0013 | 4931454205 | 3.00 | 3.63 | |
| WRENCH | ||||
| 0014 | 4931454206 | 3.00 | 3.63 | |
| KNOB | ||||
| 0015 | 4931454207 | 5.40 | 6.53 | |
| SCREW (5 needed) | ||||
| 0016 | 4931454208 | 3.00 | 3.63 | |
| O-RING | ||||
| 0017 | 4931454209 | 3.00 | 3.63 | |
| SOFT START | ||||
| 0018 | 4931454210 | 22.87 | 27.67 | |
| SPRING | ||||
| 0022 | 4931454212 | 3.00 | 3.63 | |
| SCREW (7 needed) | ||||
| 0027 | 4931454213 | 3.00 | 3.63 | |
| SWING LEVER | ||||
| 0028 | 4931454214 | 3.00 | 3.63 | |
| SAFTY GUARD | ||||
| 0029 | 4931454215 | 49.10 | 59.41 | |
| CIRCLIP | ||||
| 0030 | 4931454216 | 3.00 | 3.63 | |
| SPRING | ||||
| 0031 | 4931454217 | 3.00 | 3.63 | |
| COVER | ||||
| 0032 | 4931454218 | 3.00 | 3.63 | |
| SAFTY GUARD | ||||
| 0034 | 4931454219 | 28.51 | 34.50 | |
| No longer available, no replacement | ||||
| 0035 | 4931454748 | |||
| SPLITTING WEDGE | ||||
| 0036 | 4931454749 | 5.30 | 6.41 | |
| NUT (2 needed) | ||||
| 0037 | 4931454750 | 3.00 | 3.63 | |
| SCREW | ||||
| 0038 | 4931454896 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0039 | 4931454752 | |||
| COVER PLATE | ||||
| 0040 | 4931454753 | 3.00 | 3.63 | |
| HOLDING DEVICE | ||||
| 0041 | 4931454754 | 7.20 | 8.71 | |
| HOLDER | ||||
| 0042 | 4931454755 | 4.20 | 5.08 | |
| SCREW | ||||
| 0043 | 4931454756 | 3.00 | 3.63 | |
| NUT | ||||
| 0044 | 4931454757 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0046 | 4931454220 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0055 | 4931454221 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 0056 | 4931454222 | |||
| COVER | ||||
| 0057 | 4931454223 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0058 | 4931454224 | |||
| HOLDING PIN | ||||
| 0059 | 4931454225 | 2.28 | 2.76 | |
| SPRING | ||||
| 0060 | 4931454758 | 3.00 | 3.63 | |
| DIRECT.DUST CHUTE | ||||
| 0061 | 4931454226 | 5.40 | 6.53 | |
| FASTENING BOLT | ||||
| 0062 | 4931454227 | 3.00 | 3.63 | |
| GEAR BOX ASSY | ||||
| 0063 | 4931454897 | 72.86 | 88.16 | |
| SPRING | ||||
| 0064 | 4931454229 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0065 | 4931454230 | 9.00 | 10.89 | |
| SPINDLE LOCK | ||||
| 0066 | 4931454231 | 5.40 | 6.53 | |
| FAN HOUSING | ||||
| 0067 | 4931454232 | 5.40 | 6.53 | |
| MOTOR ASSEMBLY | ||||
| 0068 | 4931454233 | 99.79 | 120.75 | |
| BALL BEARING | ||||
| 0069 | 4931454235 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0070 | 4931454236 | |||
| BEARING BUSH | ||||
| 0071 | 4931454237 | 3.00 | 3.63 | |
| FIELD LEAD GROMMET | ||||
| 0072 | 4931454759 | 102.96 | 124.58 | |
| CHOKING COIL | ||||
| 0073 | 4931454780 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0074 | 4931454240 | |||
| SCREW (3 needed) | ||||
| 0075 | 4931454241 | 3.00 | 3.63 | |
| END COVER CAP | ||||
| 0078 | 4931454242 | 12.60 | 15.25 | |
| SCREW (2 needed) | ||||
| 0080 | 4931454248 | 3.00 | 3.63 | |
| SCREW | ||||
| 0085 | 4931454760 | 3.00 | 3.63 | |
| GROUND PLATE | ||||
| 0086 | 4931454761 | 76.03 | 92.00 | |
| No longer available, no replacement | ||||
| 0087 | 4931454246 | |||
| No longer available, no replacement | ||||
| 0092 | 4931454762 | |||
| No longer available, no replacement | ||||
| 0093 | 4931454763 | |||
| PARALL./ANGLE GUIDE | ||||
| 0094 | 4931454764 | 22.18 | 26.84 | |
| COVER | ||||
| 0095 | 4931454765 | 4.49 | 5.43 | |
| BOLT (2 needed) | ||||
| 0096 | 4931454766 | 3.00 | 3.63 | |
| GROUND PLATE | ||||
| 0097 | 4931454767 | 64.94 | 78.58 | |
| SCREW | ||||
| 0098 | 4931454244 | 3.00 | 3.63 | |
| NUT | ||||
| 0099 | 4931454768 | 3.00 | 3.63 | |
| PARALL./ANGLE GUIDE | ||||
| 0100 | 4931454769 | 14.40 | 17.42 | |
| SCREW | ||||
| 0106 | 4931454250 | 3.60 | 4.36 | |
| SPRING (2 needed) | ||||
| 0107 | 4931454251 | 3.00 | 3.63 | |
| O-RING | ||||
| 0108 | 4931454770 | 3.00 | 3.63 | |
| LATCH PLATE (2 needed) | ||||
| 0109 | 4931454771 | 3.00 | 3.63 | |
| TERMINAL PLUG | ||||
| 0111 | 4931454772 | 3.00 | 3.63 | |
| WASHER | ||||
| 0112 | 4931454773 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0201 | 4931454252 | 30.10 | 36.42 | |
| FLANGE | ||||
| 0202 | 4931454253 | 16.20 | 19.60 | |
| SPINDLE LOCK | ||||
| 0203 | 4931454254 | 33.26 | 40.24 | |
| BUFFER HANDLE | ||||
| 0204 | 4931454774 | 20.59 | 24.91 | |
| No longer available, no replacement | ||||
| 0205 | 4931454775 | |||
| CARBON BRUSH | ||||
| 0206 | 4931454255 | 34.85 | 42.17 | |
| CLAMPING LEVER (2 needed) | ||||
| 0207 | 4931454776 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0208 | 4931454256 | |||
| PAIR HANDLE SHELLS | ||||
| 0209 | 4931454257 | 14.40 | 17.42 | |
| RATING PLATE | ||||
| 0220 | 4931454924 | 3.00 | 3.63 | |
| CARRYING CASE | ||||
| 0700 | 4931454778 | 142.56 | 172.50 | |
