Here you will find all available parts and drawings of the 'Milwaukee 4000452680 ( CS85CBEIN2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

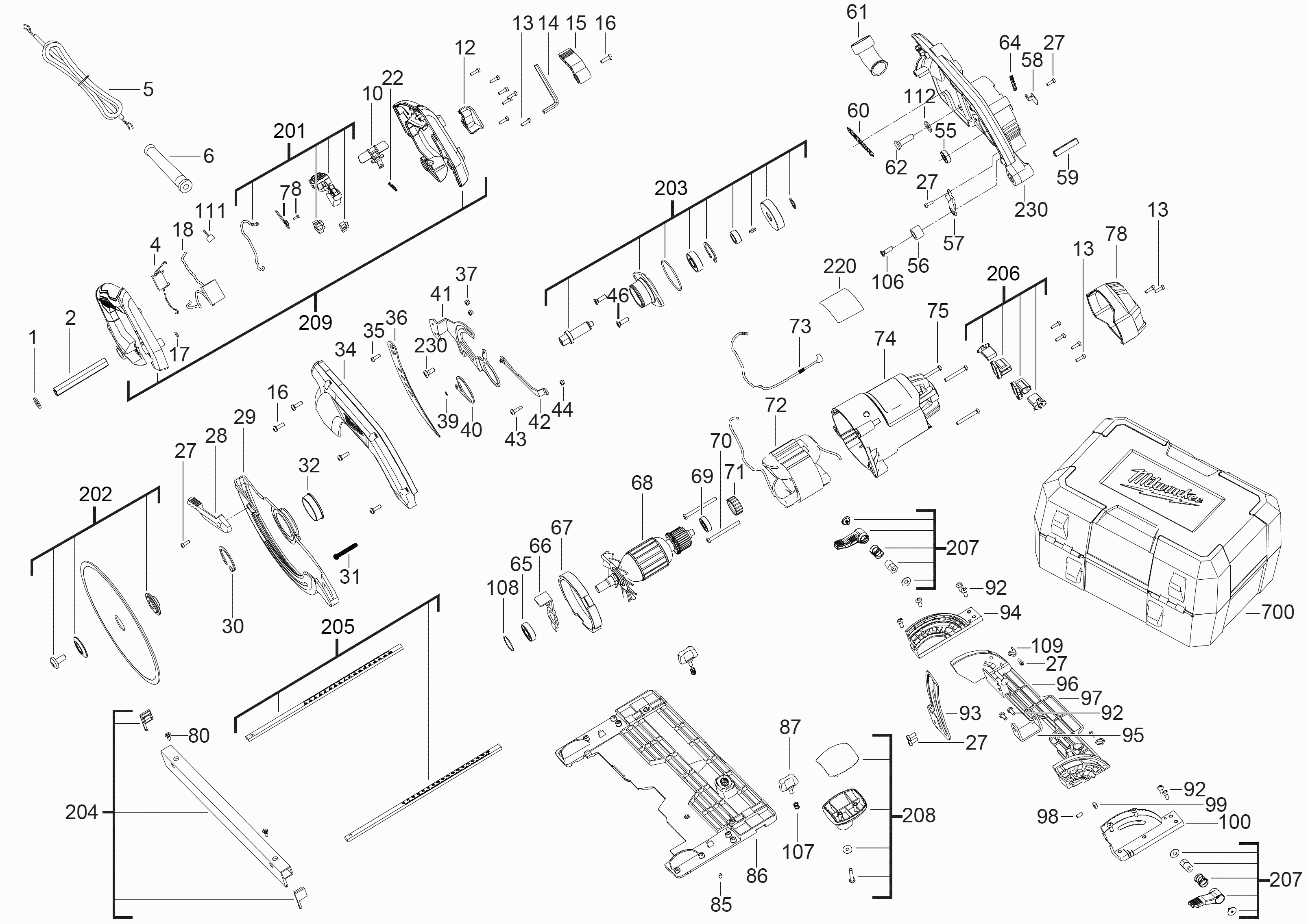

Technical drawing of model Milwaukee 4000452680 ( CS85CBEIN2 )
Spare parts list of model Milwaukee 4000452680 ( CS85CBEIN2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| WASHER | ||||
| 0001 | 4931431103 | 1.80 | 2.18 | |
| GUIDE BAR | ||||
| 0002 | 4931454194 | 7.20 | 8.71 | |
| CAPACITOR | ||||
| 0004 | 4931454746 | 4.49 | 5.43 | |
| POWER CORD | ||||
| 0005 | 4931454196 | 25.41 | 30.75 | |
| CABLE ENTRY SLEEVE | ||||
| 0006 | 4931454747 | 4.49 | 5.43 | |
| RETAINING PLATE | ||||
| 0007 | 4931454200 | 1.90 | 2.30 | |
| SCREW | ||||
| 0008 | 4931454201 | 1.80 | 2.18 | |
| TRIGGER | ||||
| 0010 | 4931454202 | 1.80 | 2.18 | |
| CAP | ||||
| 0012 | 4931454203 | 1.80 | 2.18 | |
| SCREW | ||||
| 0013 | 4931454205 | 1.90 | 2.30 | |
| WRENCH | ||||
| 0014 | 4931454206 | 1.80 | 2.18 | |
| KNOB | ||||
| 0015 | 4931454207 | 5.40 | 6.53 | |
| SCREW (5 needed) | ||||
| 0016 | 4931454208 | 1.80 | 2.18 | |
| O-RING | ||||
| 0017 | 4931454209 | 1.80 | 2.18 | |
| SOFT START | ||||
| 0018 | 4931454210 | 20.79 | 25.16 | |
| SPRING | ||||
| 0022 | 4931454212 | 1.80 | 2.18 | |
| SCREW (3 needed) | ||||
| 0027 | 4931454213 | 1.80 | 2.18 | |
| SWING LEVER | ||||
| 0028 | 4931454214 | 1.90 | 2.30 | |
| SAFTY GUARD | ||||
| 0029 | 4931454215 | 49.10 | 59.41 | |
| CIRCLIP | ||||
| 0030 | 4931454216 | 1.80 | 2.18 | |
| SPRING | ||||
| 0031 | 4931454217 | 1.80 | 2.18 | |
| COVER | ||||
| 0032 | 4931454218 | 1.80 | 2.18 | |
| SAFTY GUARD | ||||
| 0034 | 4931454219 | 28.51 | 34.50 | |
| BOLT (2 needed) | ||||
| 0035 | 4931454748 | 1.80 | 2.18 | |
| SPLITTING WEDGE | ||||
| 0036 | 4931454749 | 3.60 | 4.36 | |
| NUT (2 needed) | ||||
| 0037 | 4931454750 | 1.80 | 2.18 | |
| WASHER | ||||
| 0039 | 4931454752 | 1.80 | 2.18 | |
| COVER PLATE | ||||
| 0040 | 4931454753 | 1.80 | 2.18 | |
| HOLDING DEVICE | ||||
| 0041 | 4931454754 | 7.20 | 8.71 | |
| HOLDER | ||||
| 0042 | 4931454755 | 3.60 | 4.36 | |
| SCREW | ||||
| 0043 | 4931454756 | 1.80 | 2.18 | |
| NUT | ||||
| 0044 | 4931454757 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 0046 | 4931454220 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0055 | 4931454221 | 3.60 | 4.36 | |
| RUBBER BUFFER | ||||
| 0056 | 4931454222 | 1.90 | 2.30 | |
| COVER | ||||
| 0057 | 4931454223 | 1.80 | 2.18 | |
| COVER PLATE | ||||
| 0058 | 4931454224 | 1.90 | 2.30 | |
| HOLDING PIN | ||||
| 0059 | 4931454225 | 1.90 | 2.30 | |
| SPRING | ||||
| 0060 | 4931454758 | 1.80 | 2.18 | |
| DIRECT.DUST CHUTE | ||||
| 0061 | 4931454226 | 5.40 | 6.53 | |
| FASTENING BOLT | ||||
| 0062 | 4931454227 | 1.90 | 2.30 | |
| SPRING | ||||
| 0064 | 4931454229 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0065 | 4931454230 | 9.00 | 10.89 | |
| SPINDLE LOCK | ||||
| 0066 | 4931454231 | 5.40 | 6.53 | |
| FAN HOUSING | ||||
| 0067 | 4931454232 | 5.40 | 6.53 | |
| MOTOR ASSEMBLY | ||||
| 0068 | 4931454233 | 99.79 | 120.75 | |
| BALL BEARING | ||||
| 0069 | 4931454235 | 10.80 | 13.07 | |
| SCREW (2 needed) | ||||
| 0070 | 4931454236 | 1.80 | 2.18 | |
| BEARING BUSH | ||||
| 0071 | 4931454237 | 1.90 | 2.30 | |
| FIELD LEAD GROMMET | ||||
| 0072 | 4931454759 | 102.96 | 124.58 | |
| CHOKING COIL | ||||
| 0073 | 4931454780 | 5.40 | 6.53 | |
| HOUSING | ||||
| 0074 | 4931454240 | 22.18 | 26.84 | |
| SCREW (3 needed) | ||||
| 0075 | 4931454241 | 1.80 | 2.18 | |
| END COVER CAP | ||||
| 0078 | 4931454242 | 12.60 | 15.25 | |
| SCREW (5 needed) | ||||
| 0080 | 4931454248 | 1.80 | 2.18 | |
| SCREW | ||||
| 0085 | 4931454760 | 1.80 | 2.18 | |
| GROUND PLATE | ||||
| 0086 | 4931454761 | 76.03 | 92.00 | |
| LOCK BOTTON (2 needed) | ||||
| 0087 | 4931454246 | 5.40 | 6.53 | |
| SCREW (10 needed) | ||||
| 0092 | 4931454762 | 1.80 | 2.18 | |
| HOLDING DEVICE | ||||
| 0093 | 4931454763 | 3.60 | 4.36 | |
| PARALL./ANGLE GUIDE | ||||
| 0094 | 4931454764 | 22.18 | 26.84 | |
| COVER | ||||
| 0095 | 4931454765 | 4.49 | 5.43 | |
| BOLT (2 needed) | ||||
| 0096 | 4931454766 | 1.80 | 2.18 | |
| GROUND PLATE | ||||
| 0097 | 4931454767 | 64.94 | 78.58 | |
| SCREW | ||||
| 0098 | 4931454244 | 1.80 | 2.18 | |
| NUT | ||||
| 0099 | 4931454768 | 1.80 | 2.18 | |
| PARALL./ANGLE GUIDE | ||||
| 0100 | 4931454769 | 14.40 | 17.42 | |
| SCREW | ||||
| 0106 | 4931454250 | 1.80 | 2.18 | |
| SPRING | ||||
| 0107 | 4931454251 | 1.80 | 2.18 | |
| O-RING | ||||
| 0108 | 4931454770 | 1.80 | 2.18 | |
| LATCH PLATE (2 needed) | ||||
| 0109 | 4931454771 | 1.80 | 2.18 | |
| TERMINAL PLUG | ||||
| 0111 | 4931454772 | 1.80 | 2.18 | |
| WASHER | ||||
| 0112 | 4931454773 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0201 | 4931454252 | 30.10 | 36.42 | |
| FLANGE | ||||
| 0202 | 4931454253 | 16.20 | 19.60 | |
| SPINDLE LOCK | ||||
| 0203 | 4931454254 | 33.26 | 40.24 | |
| BUFFER HANDLE | ||||
| 0204 | 4931454774 | 20.59 | 24.91 | |
| PARALLEL GUIDE | ||||
| 0205 | 4931454775 | 49.10 | 59.41 | |
| CARBON BRUSH | ||||
| 0206 | 4931454255 | 34.85 | 42.17 | |
| CLAMPING LEVER (2 needed) | ||||
| 0207 | 4931454776 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0208 | 4931454256 | |||
| PAIR HANDLE SHELLS | ||||
| 0209 | 4931454257 | 14.40 | 17.42 | |
| RATING PLATE | ||||
| 0220 | 4931454777 | 1.80 | 2.18 | |
| GEARCASE + SCREW ASSY | ||||
| 0230 | 4931458670 | 102.96 | 124.58 | |
| CARRYING CASE | ||||
| 0700 | 4931454778 | 142.56 | 172.50 | |
