Here you will find all available parts and drawings of the 'Milwaukee 4000427325 ( C18PCG/310C-21B )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

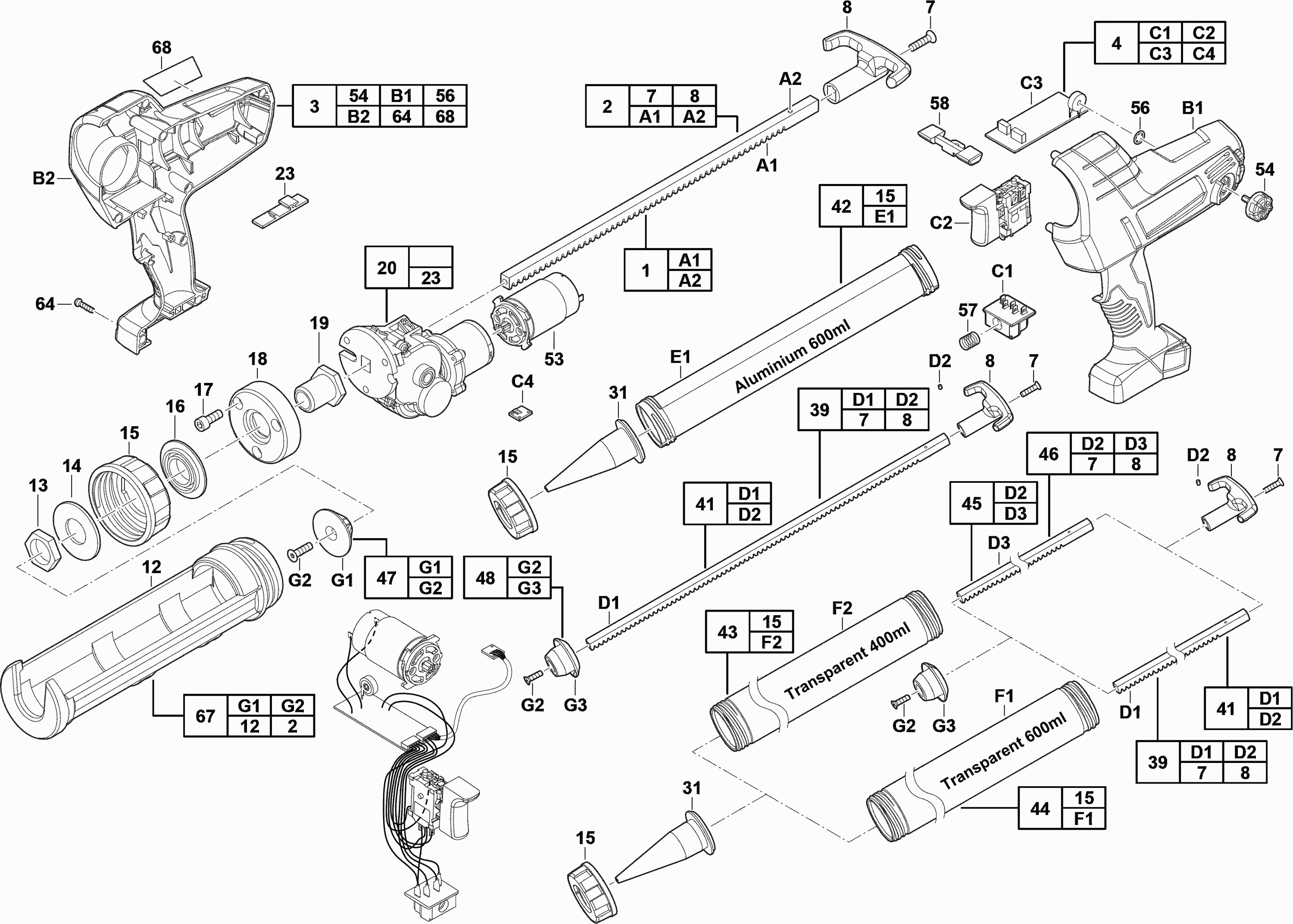

Technical drawing of model Milwaukee 4000427325 ( C18PCG/310C-21B )
Spare parts list of model Milwaukee 4000427325 ( C18PCG/310C-21B )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ROD | ||||
| 0001 | 201885001 | 47.52 | 57.50 | |
| Plunjerstang voor 310 ml patroonhouder tbv C18 PCG | ||||
| 0002 | 4932352937 | 11.40 | 13.79 | |
| HANDLE COMPL. | ||||
| 0003 | 201870002 | 39.60 | 47.92 | |
| SWITCH ASSEMBLY | ||||
| 0004 | 201855001 | 88.70 | 107.33 | |
| SCREW | ||||
| 0007 | 661462001 | 1.80 | 2.18 | |
| HANDLE | ||||
| 0008 | 522615001 | 5.40 | 6.53 | |
| Cartridge holder/battery cartridge press | ||||
| 0012 | 201927001 | 15.29 | 18.50 | |
| HEXAGON NUT | ||||
| 0013 | 661434001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0014 | 633626001 | 1.80 | 2.18 | |
| CARTRIDGE HOLDER | ||||
| 0015 | 522614001 | 5.40 | 6.53 | |
| SPACER | ||||
| 0016 | 522613001 | 1.80 | 2.18 | |
| SCREW (5 needed) | ||||
| 0017 | 661474001 | 1.80 | 2.18 | |
| FRONT PLATE | ||||
| 0018 | 522689001 | 5.40 | 6.53 | |
| NUT | ||||
| 0019 | 692801001 | 9.00 | 10.89 | |
| GEAR BOX CASING FOR CARTRIDGE PRESSURE | ||||
| 0020 | 201856001 | 101.38 | 122.67 | |
| PLATE | ||||
| 0023 | 522748001 | 4.49 | 5.43 | |
| NOZZLE CG Nozzle P1M | ||||
| 0031 | 522618001 | 1.90 | 2.30 | |
| Plunjerstang voor 600 ml patroonhouder voor worste | ||||
| 0039 | 48091091 | 19.85 | 24.02 | |
| ROD | ||||
| 0041 | 201887001 | 66.53 | 80.50 | |
| Patroonhouder 600 ml voor worsten tbv C18/12 PCG | ||||
| 0042 | 4932352845 | 17.65 | 21.36 | |
| Patroonhouder 400 ml transparant,voor worsten tbv | ||||
| 0043 | 4932352842 | 28.85 | 34.91 | |
| Patroonhouder 600 ml transparant,voor worsten tbv | ||||
| 0044 | 4932352843 | 34.20 | 41.38 | |
| Plunger rods | ||||
| 0045 | 201958001 | 32.34 | 39.13 | |
| ROD | ||||
| 0046 | 201849001 | 44.08 | 53.34 | |
| Plunjerstang voor 400 ml patroonhouder voor worste | ||||
| 0046 | 48091090 | 14.45 | 17.48 | |
| Zuiger voor kitspuiten bij gebruik van kokers | ||||
| 0047 | 44700330 | 1.65 | 2.00 | |
| Zuiger voor kitspuiten bij gebruik van worsten | ||||
| 0048 | 44700375 | 2.85 | 3.45 | |
| MOTOR ASSEMBLY | ||||
| 0053 | 201854001 | 34.85 | 42.17 | |
| SPEED CONTROL | ||||
| 0054 | 350575001 | 4.42 | 5.35 | |
| PROTECTION WASHER | ||||
| 0056 | 633690001 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0057 | 4931408243 | 5.40 | 6.53 | |
| LOCKING PART | ||||
| 0058 | 522574001 | 1.90 | 2.30 | |
| SCREW (23 needed) | ||||
| 0064 | 660031017 | 1.90 | 2.30 | |
| Patroonhouder 310 ml voor kokers tbv C18 PCG | ||||
| 0067 | 48081076 | 23.10 | 27.95 | |
| NAME PLATE | ||||
| 0068 | 940038285 | 1.90 | 2.30 | |
