Here you will find all available parts and drawings of the 'Milwaukee 4000509422 (C18HZ-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

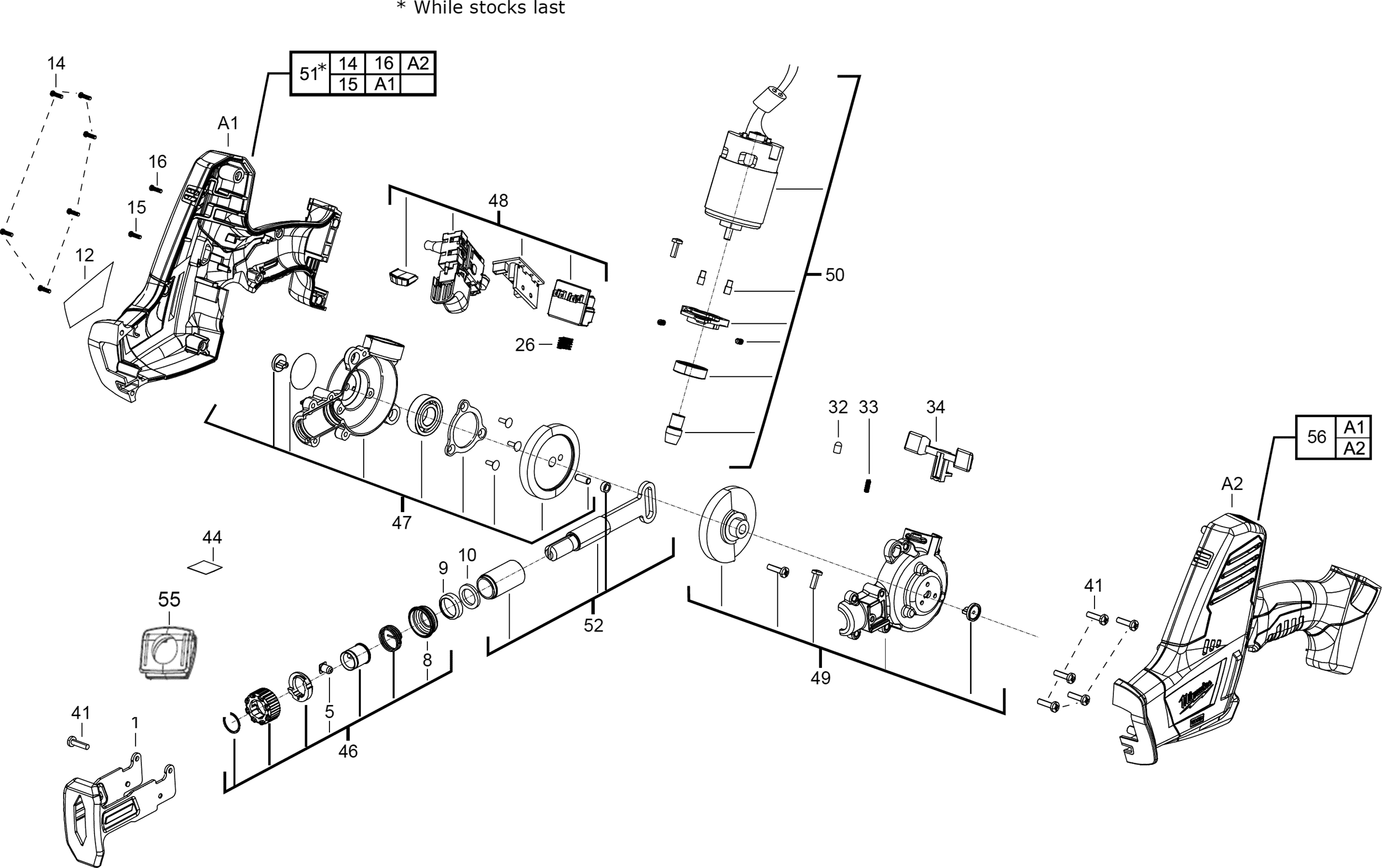

Technical drawing of model Milwaukee 4000509422 (C18HZ-0)
Spare parts list of model Milwaukee 4000509422 (C18HZ-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MATRIX | ||||
| 0001 | 633196001 | 14.40 | 17.42 | |
| INTERLOCK ELEMENT | ||||
| 0005 | 691261001 | 3.00 | 3.63 | |
| CLAMPING RING | ||||
| 0008 | 31150511 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 0009 | 633222001 | |||
| FELT | ||||
| 0010 | 902393001 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0012 | 4931507069 | 1.20 | 1.45 | |
| SCREW | ||||
| 0014 | 660031016 | 3.00 | 3.63 | |
| SCREW | ||||
| 0015 | 661081001 | 3.00 | 3.63 | |
| SCREW M3,5 Torx 10 | ||||
| 0016 | 660031023 | 3.00 | 3.63 | |
| PRESSURE SPRING | ||||
| 0026 | 4931408243 | 5.40 | 6.53 | |
| INDEXING SLEEVE | ||||
| 0032 | 633289001 | 4.80 | 5.81 | |
| SPRING | ||||
| 0033 | 692505001 | 3.60 | 4.36 | |
| GUIDE | ||||
| 0034 | 4931507070 | 1.20 | 1.45 | |
| SCREW | ||||
| 0041 | 661113008 | 3.60 | 4.36 | |
| WARNING PLATE | ||||
| 0044 | 940230187 | 3.00 | 3.63 | |
| NOSEPIECE | ||||
| 0046 | 200783002 | 15.84 | 19.17 | |
| GEAR BOX ASSY | ||||
| 0047 | 4931480462 | 31.90 | 38.60 | |
| SWITCH KIT | ||||
| 0048 | 4931507071 | 44.00 | 53.24 | |
| GEAR BOX ASSY | ||||
| 0049 | 4931480463 | 27.95 | 33.82 | |
| MOTOR ASSEMBLY | ||||
| 0050 | 4931507072 | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 0051 | 4931507073 | |||
| SPINDLE KIT | ||||
| 0052 | 4931461469 | 42.77 | 51.75 | |
| GASKET | ||||
| 0055 | 4931472354 | 5.40 | 6.53 | |
| HOUSING | ||||
| 0056 | 4931511307 | 30.80 | 37.27 | |
