Here you will find all available parts and drawings of the 'Milwaukee 4000431555 (C12PN-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

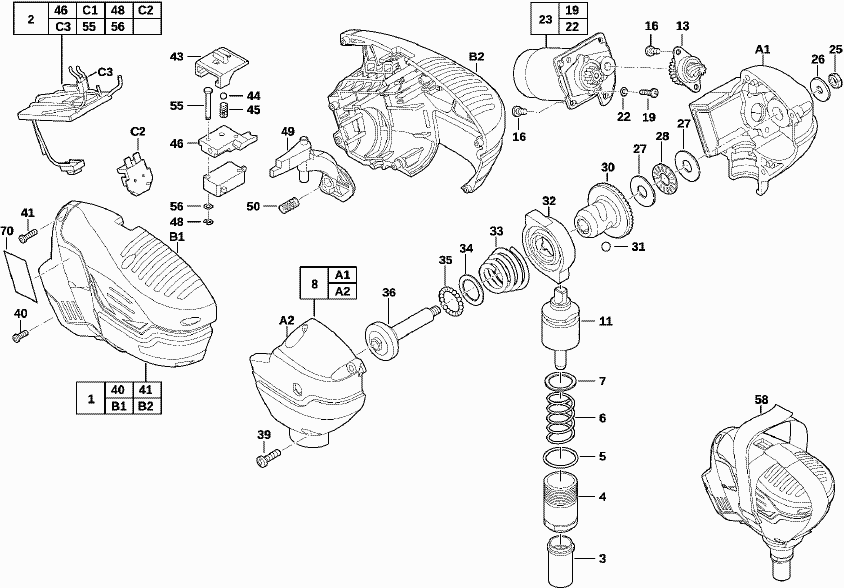

Technical drawing of model Milwaukee 4000431555 (C12PN-0)
Spare parts list of model Milwaukee 4000431555 (C12PN-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0001 | 4931431707 | |||
| No longer available, no replacement | ||||
| 0002 | 4931431708 | |||
| COLLET | ||||
| 0003 | 201643001 | 16.20 | 19.60 | |
| No longer available, no replacement | ||||
| 0004 | 692681001 | |||
| O-RING | ||||
| 0005 | 562589001 | 3.00 | 3.63 | |
| PRESSURE SPRING | ||||
| 0006 | 692729001 | 4.54 | 5.49 | |
| WASHER | ||||
| 0007 | 680335079 | 3.00 | 3.63 | |
| GEAR BOX | ||||
| 0008 | 201637001 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0011 | 201639001 | |||
| No longer available, no replacement | ||||
| 0013 | 304096002 | |||
| SCREW (2 needed) | ||||
| 0016 | 660165015 | 3.00 | 3.63 | |
| SCREW | ||||
| 0019 | 660211021 | 1.20 | 1.45 | |
| SPRING WASHER (2 needed) | ||||
| 0022 | 670028003 | 2.28 | 2.76 | |
| MOTOR ASSEMBLY | ||||
| 0023 | 201638001 | 28.51 | 34.50 | |
| No longer available, no replacement | ||||
| 0025 | 661348001 | |||
| SPRING WASHER | ||||
| 0026 | 633510001 | 1.20 | 1.45 | |
| AXIAL WASHER | ||||
| 0027 | 633575001 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 0028 | 681284001 | |||
| BEVEL GEAR | ||||
| 0030 | 201641001 | 47.52 | 57.50 | |
| BALL (2 needed) | ||||
| 0031 | 4931453238 | 3.00 | 3.63 | |
| BALL (3 needed) | ||||
| 0031 | 670219001 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0032 | 621140004 | |||
| PRESSURE SPRING | ||||
| 0033 | 692118006 | 3.00 | 3.63 | |
| WASHER 24x17,8x0,8 | ||||
| 0034 | 680335077 | 3.00 | 3.63 | |
| BALL | ||||
| 0035 | 670221001 | 3.00 | 3.63 | |
| THREADED BOLT | ||||
| 0036 | 621186001 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0039 | 661061001 | |||
| SCREW (6 needed) | ||||
| 0040 | 660230016 | 3.60 | 4.36 | |
| SCREW (35 needed) | ||||
| 0041 | 660570005 | 3.60 | 4.36 | |
| LOCK RELEASE KIT | ||||
| 0043 | 522088001 | 4.20 | 5.08 | |
| BALL (2 needed) | ||||
| 0044 | 670220001 | 3.00 | 3.63 | |
| SPRING | ||||
| 0045 | 692729003 | 3.00 | 3.63 | |
| SWITCH LEVER | ||||
| 0046 | 522087001 | 1.20 | 1.45 | |
| PROTECTION WASHER | ||||
| 0048 | 692780001 | 1.20 | 1.45 | |
| TRIGGER | ||||
| 0049 | 522086001 | 1.20 | 1.45 | |
| PRESSURE SPRING | ||||
| 0050 | 692729002 | 3.00 | 3.63 | |
| BOLT | ||||
| 0055 | 673011001 | 3.00 | 3.63 | |
| WASHER | ||||
| 0056 | 633584001 | 1.20 | 1.45 | |
| STRAP | ||||
| 0058 | 902528002 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 0070 | 4931431709 | |||
| SERVICE-KIT | ||||
| 0080 | 4931506083 | 49.50 | 59.90 | |
